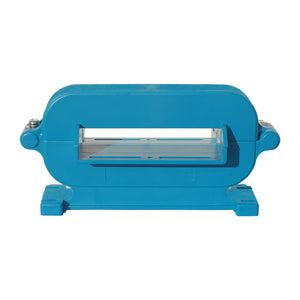

![Split core current sensor HSTS12020 Rated input ±1000A ±2000A ±3000A ±4000A Rated output 2.5V±0.625V Supply voltage(±5%) +5V](http://www.poweruc.pl/cdn/shop/products/HST12020_8e81e144-7c25-47ea-b103-b57944f4df6f_{width}x.jpg?v=1681110855)
Split core current sensor HSTS12020 Rated input ±1000A ±2000A ±3000A ±4000A Rated output 2.5V±0.625V Supply voltage(±5%) +5V
Model:HSTS12020
Characteristics:
1.Open loop split core type , terminal output .
2.Detect DC,AC and puls e current,high insulation
3.Between primary side and the vice side circuit.
Technical index:
1.Flame resistance :UL94-V0
2.Operation temperature:-10℃~+70℃
3.Storage temperature: -25 ° C to +70 ° C
4.Dielectric strength:6KV 50Hz 1min

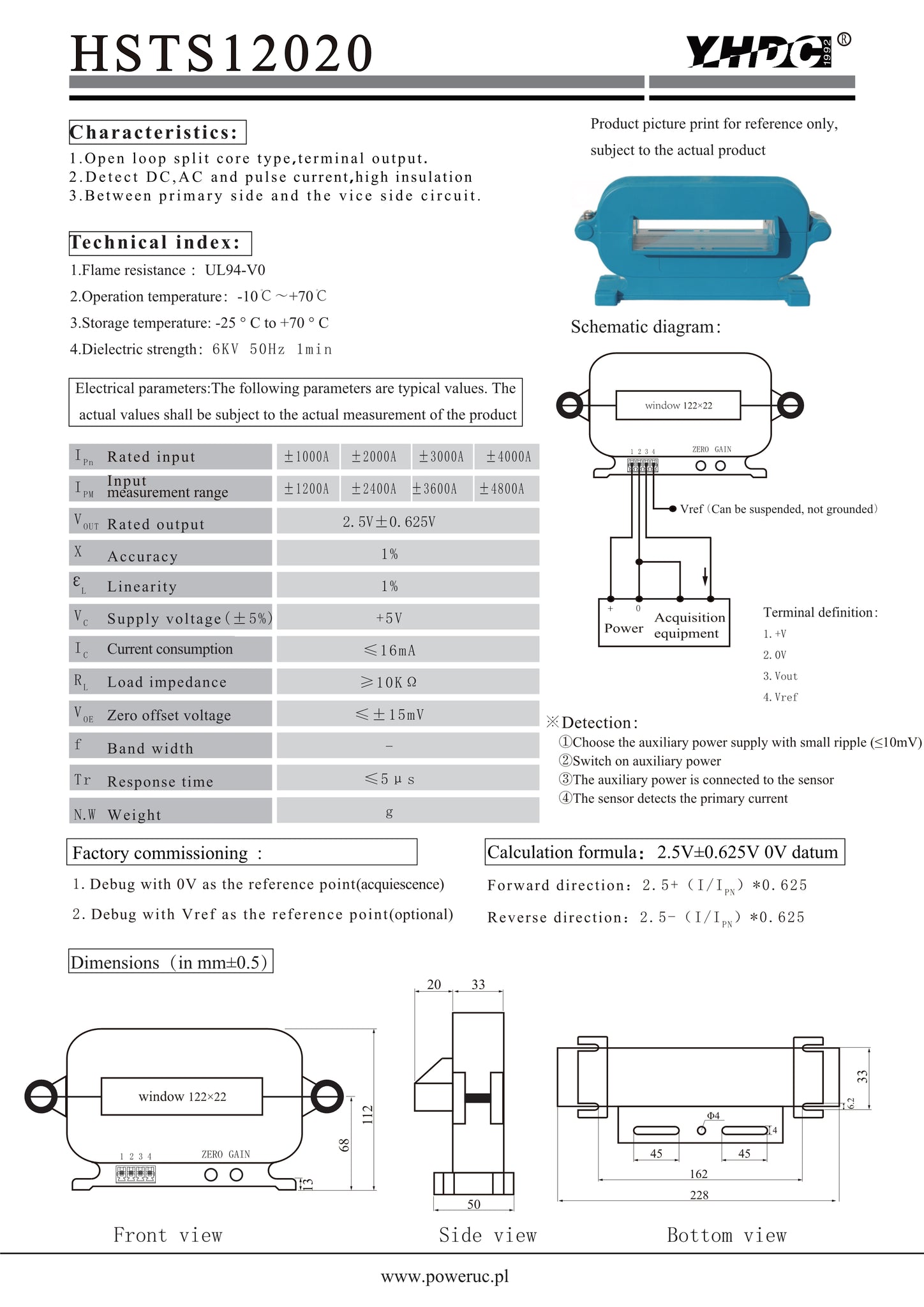

Electrical parameters:The following parameters are typical values. The actual values shall be subject to the actual measurement of the product
DOWNLOAD
