Split core current sensor HSTS016L Rated input ±10A ±20A ±30A ±50A ±100A ±150A ±200A Rated output 2.5V±0.625V - PowerUC

Split core current sensor HSTS016L Rated input ±10A ±20A ±30A ±50A ±100A ±150A ±200A Rated output 1.65V±0.625V/+3.3V And 2.5V±0.625V/+5V

PowerUC

Shipping calculated at checkout.
Only 100 left!

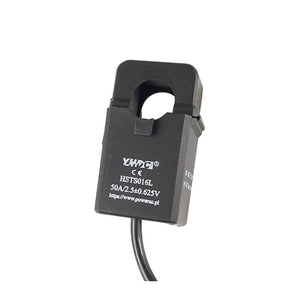

Model：HSTS016L

Detect DC,AC and puls e current , high insulation between prima - ry side and the vice side circuit.

Technical indicators:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC~25kHz

Dielectric strength：2.5KV 50Hz 1min

Electric parameters:



DOWNLOAD-HSTS016L-1.65V±0.625V/+3.3V

DOWNLOAD-HSTS016L-2.5V±0.625V/+5V
