Split core current sensor HSTS21 Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V

Split core current sensor HSTS21 Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 27 left!

Model：HSTS21

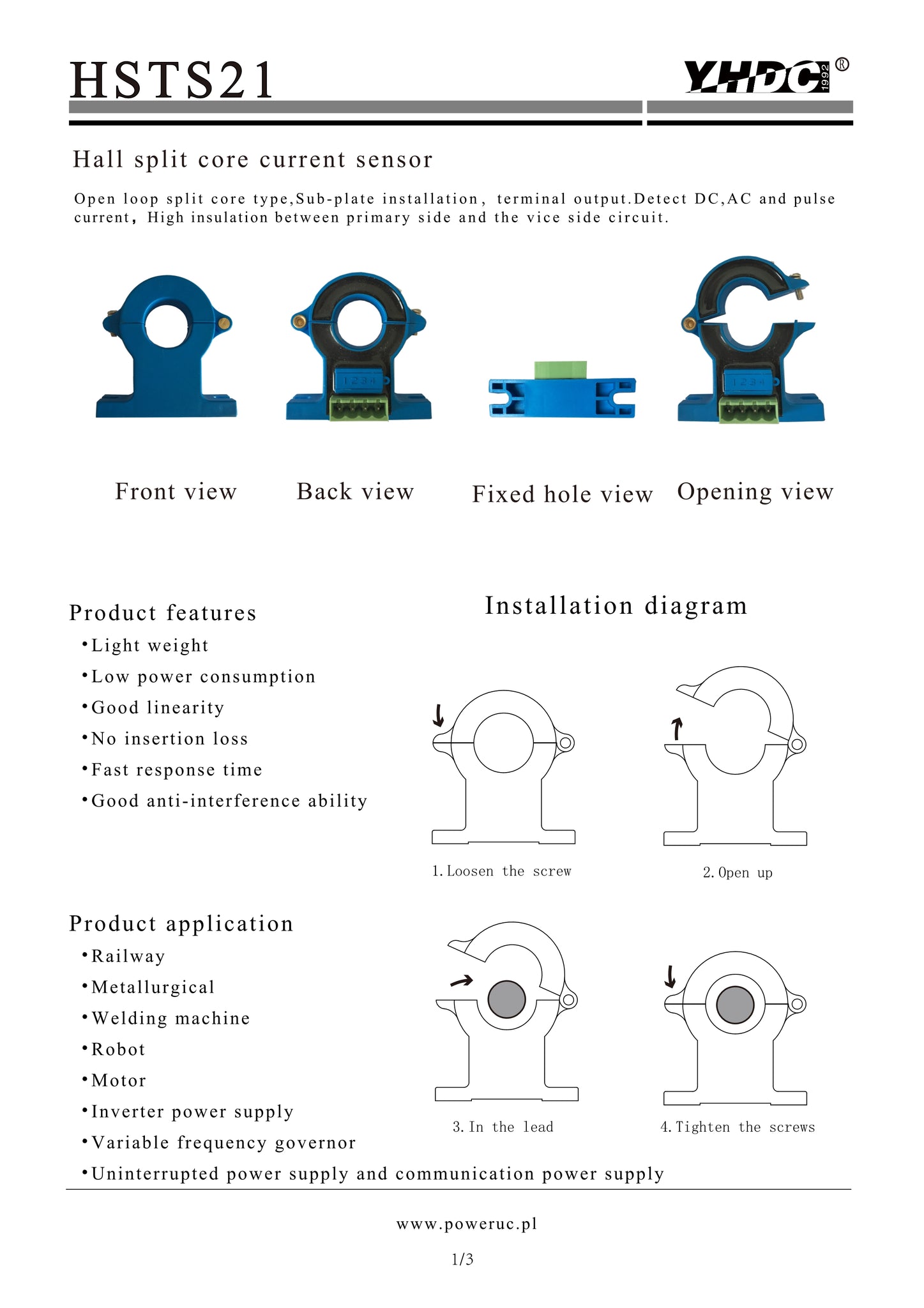

Open loop split core type,Sub-plate mounting type. Detect DC,AC and pulse current.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～25kHz

Dielectric strength：2.5KV 50Hz 1min

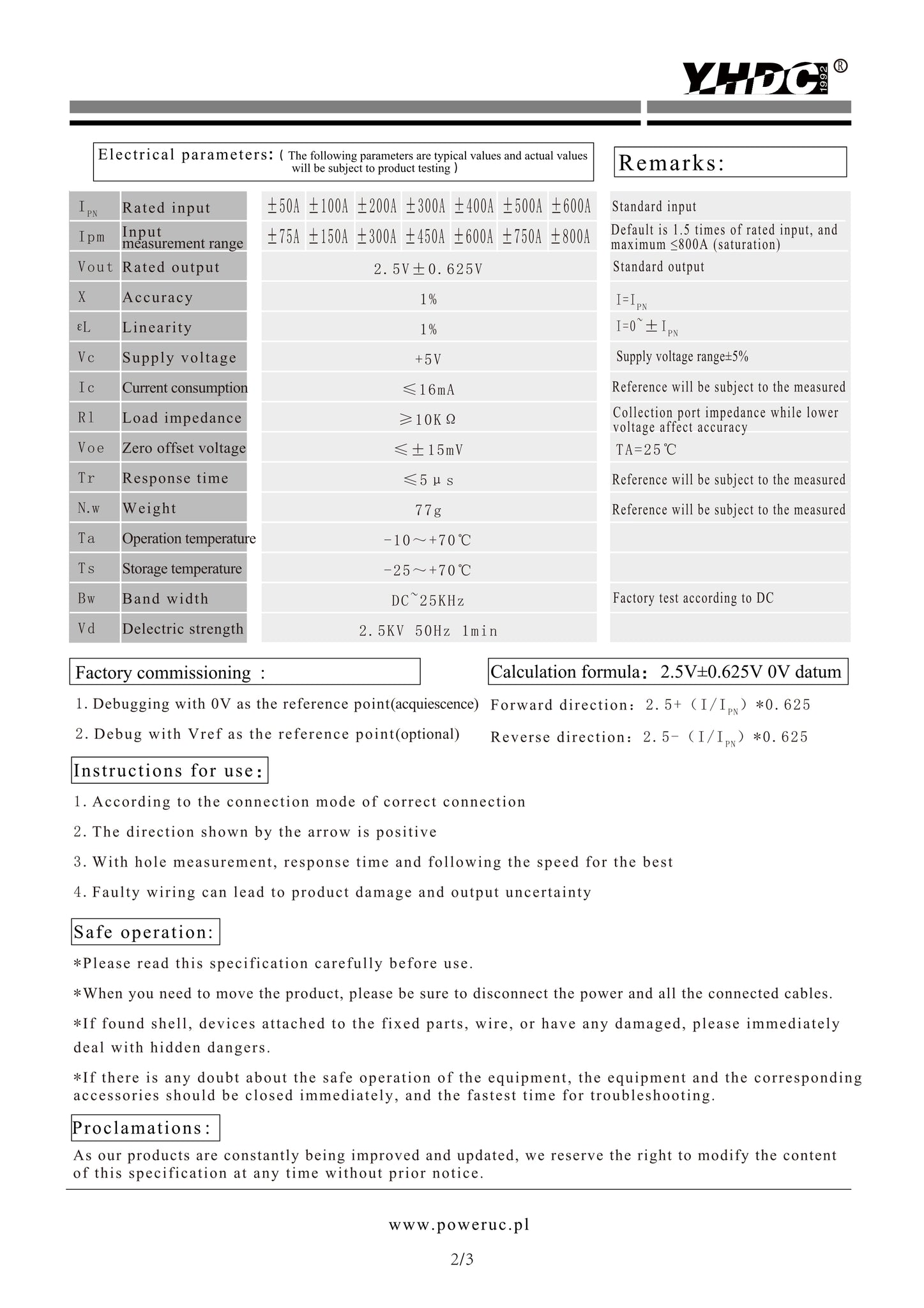

Electric parameters:

DOWNLOAD
