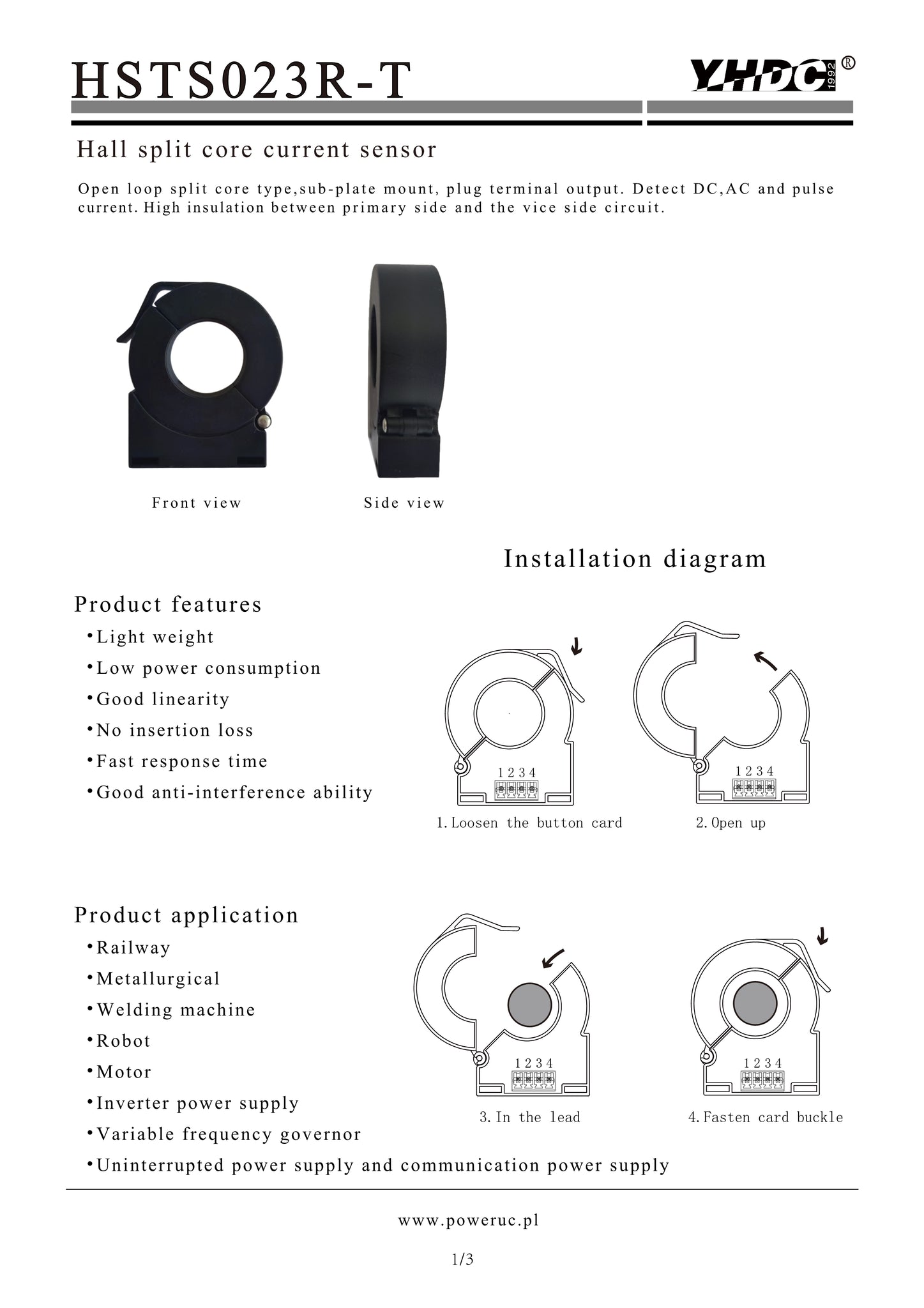

Split core current sensor HSTS023R-T Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V
Model:HSTS023R-T
Open loop split core type,sub-plate mount , plug terminal output . Detect DC,AC and pulse current.High insulation between primary side and the vice side circuit.
Technical indicators:
Flame resistance:UL94-V0
Operating temperature:-10~+70℃
Storage temperature:-25~+70℃
Bandwidth:DC~25kHz
Dielectric strength:2.5KV 50Hz 1min

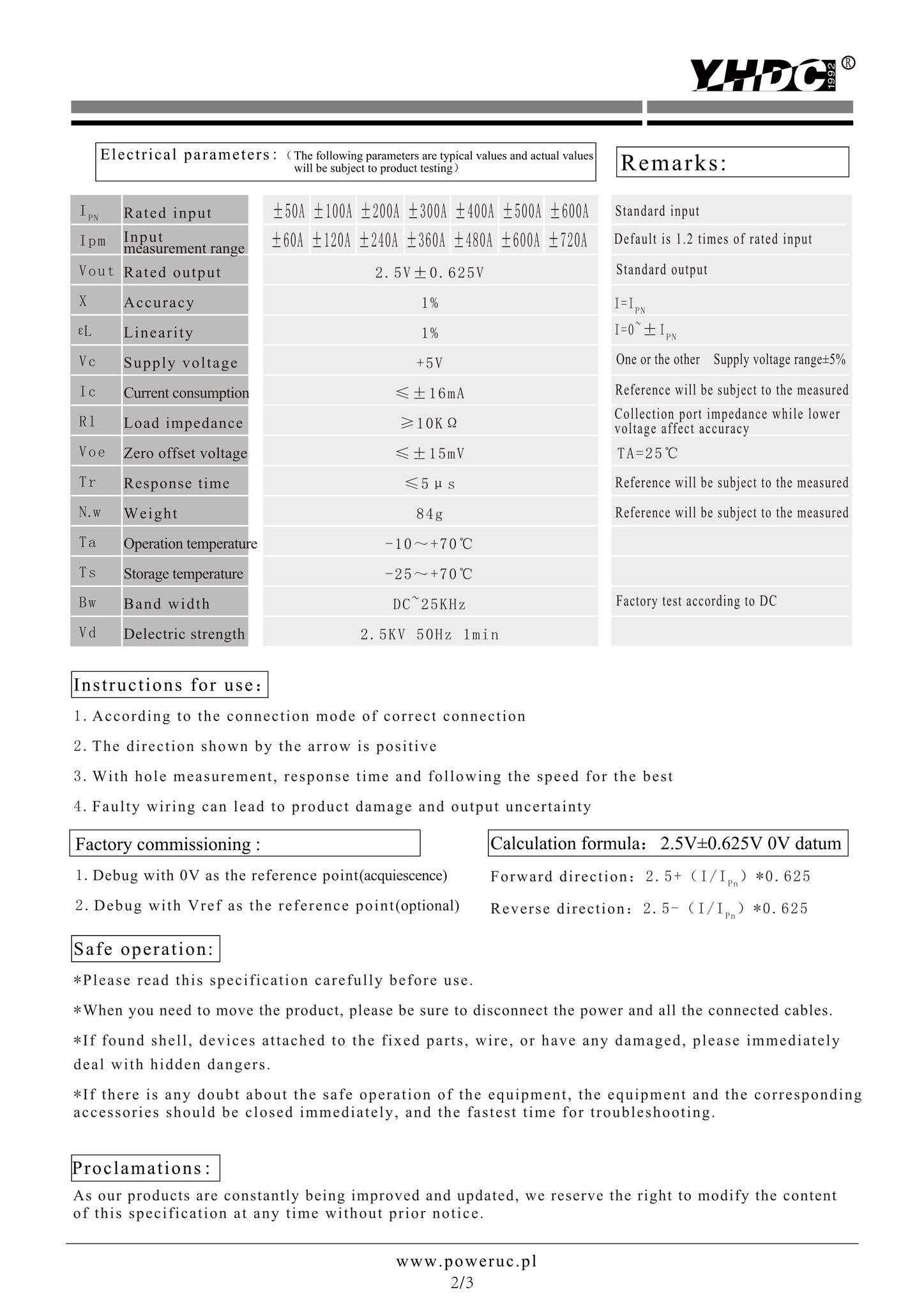

Electric parameters:
