Hall sensor HKBS16/A Rated input ±50A ±100A ±200A ±300A ±400A  ±600A  Rated output 2.5V±2V

Hall sensor HKBS16/A Rated input ±50A ±100A ±200A ±300A ±400A ±600A Rated output 2.5V±2V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

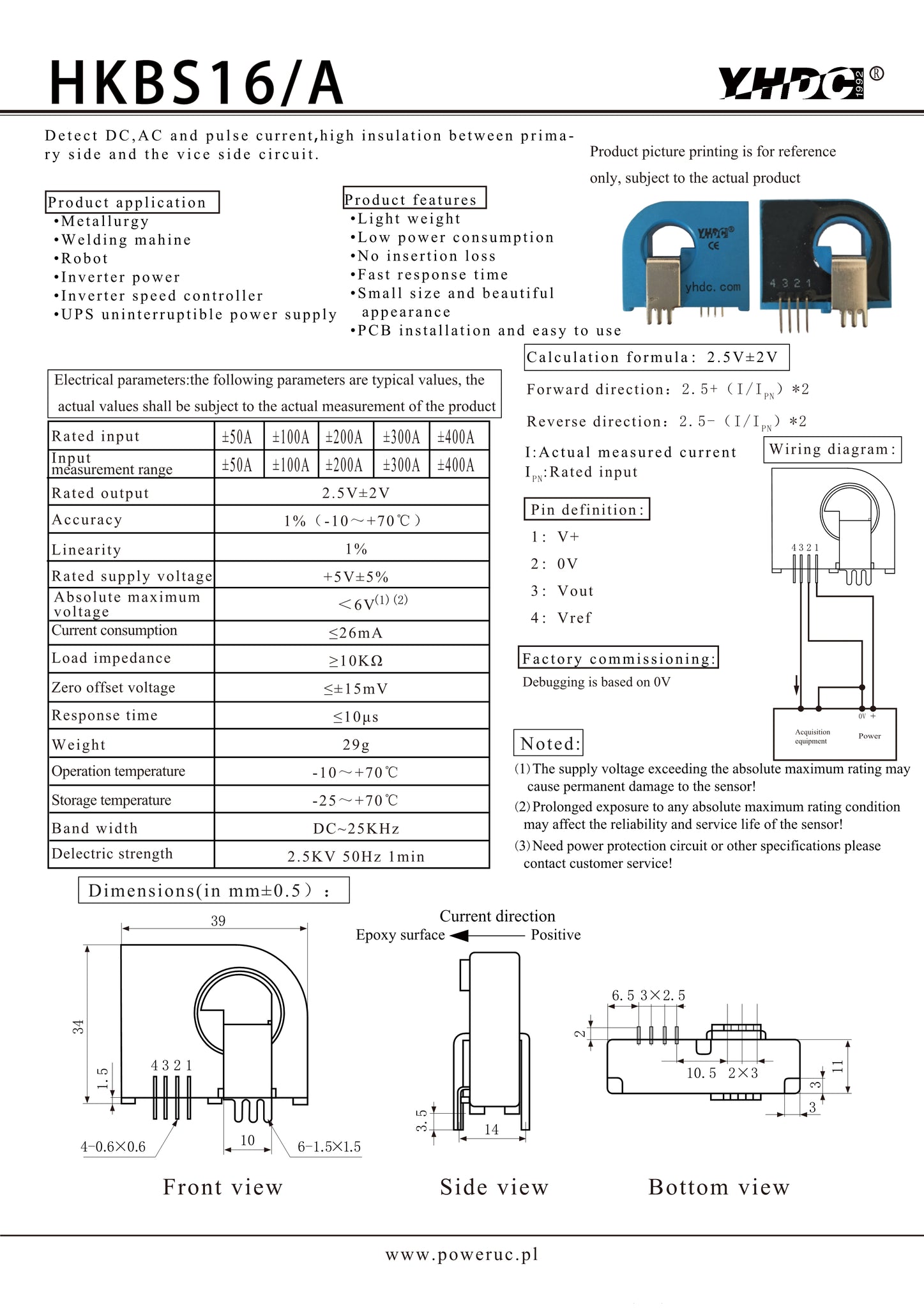

Model:HKBS16/A

Characteristics:

Detect DC,AC and puls e current,High insulation between primary side and the vice side circuit.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 2.5KV 50Hz 1min

Electrical Parameters:
