Magnetic saturation voltage sensor MTVA601 Rated input ±1000V ±2000V ±3000V ±4000V Rated output ±5V - PowerUC

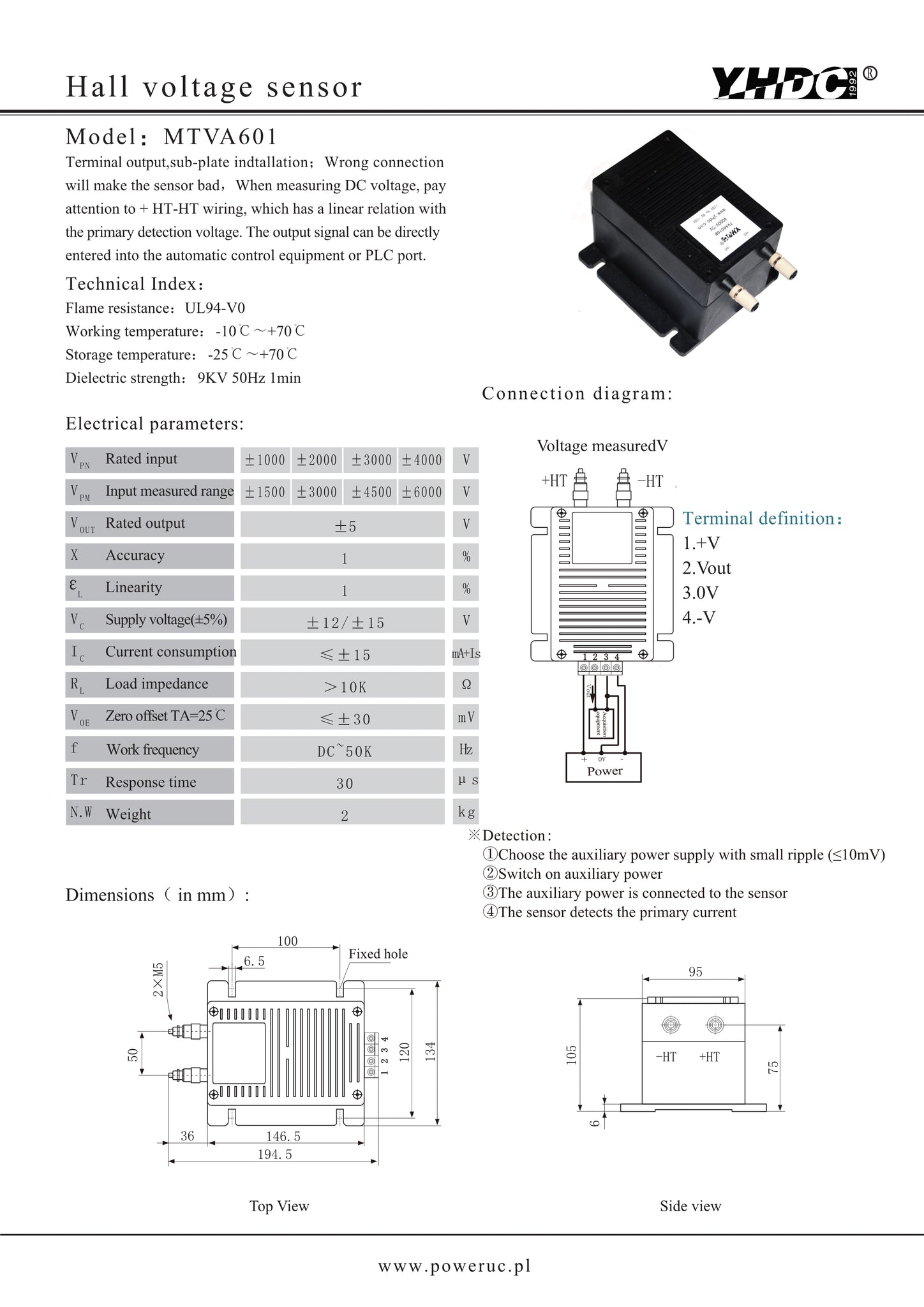

Magnetic saturation voltage sensor MTVA601 Rated input ±1000V ±2000V ±3000V ±4000V Rated output ±5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Crimping terminal output，Sub-plate mounting；Wrong connection
will make the sensor bad，When measuring DC voltage, +HT -HT is
not allowed to reverse，The output is linear with primary test current,
and the output signal can be directly enter automatic control equipment
or PLC port.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～50kHz

Dielectric strength：9KV 50Hz 1min

DOWNLOAD
