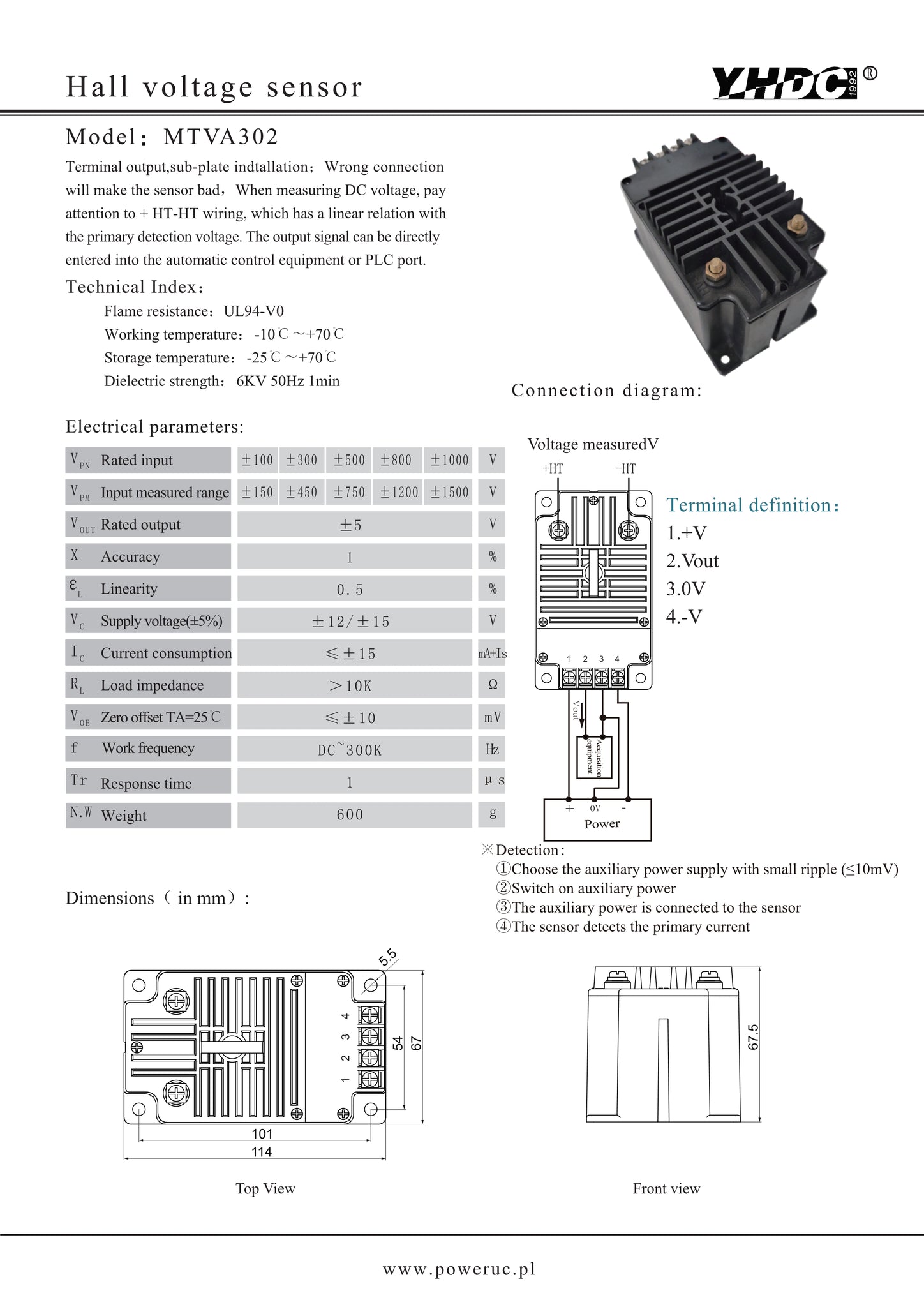

Magnetic saturation voltage sensor MTVA302 Rated input ±100V ±300V ±500V ±800V ±1000V Rated output ±5V - PowerUC

Magnetic saturation voltage sensor MTVA302 Rated input ±100V ±300V ±500V ±800V ±1000V Rated output ±5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Crimping terminal output，Sub-plate mounting；Wrong connection
will make the sensor bad，When measuring DC voltage, +HT -HT is
not allowed to reverse，The output is linear with primary test current,
and the output signal can be directly enter automatic control equipment
or PLC port.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～300kHz

Dielectric strength：6KV 50Hz 1min

DOWNLOAD
