Hall voltage sensor HVS62 Rated input ±50V ±100V ±200V Rated output 2.5V±0.625V - PowerUC

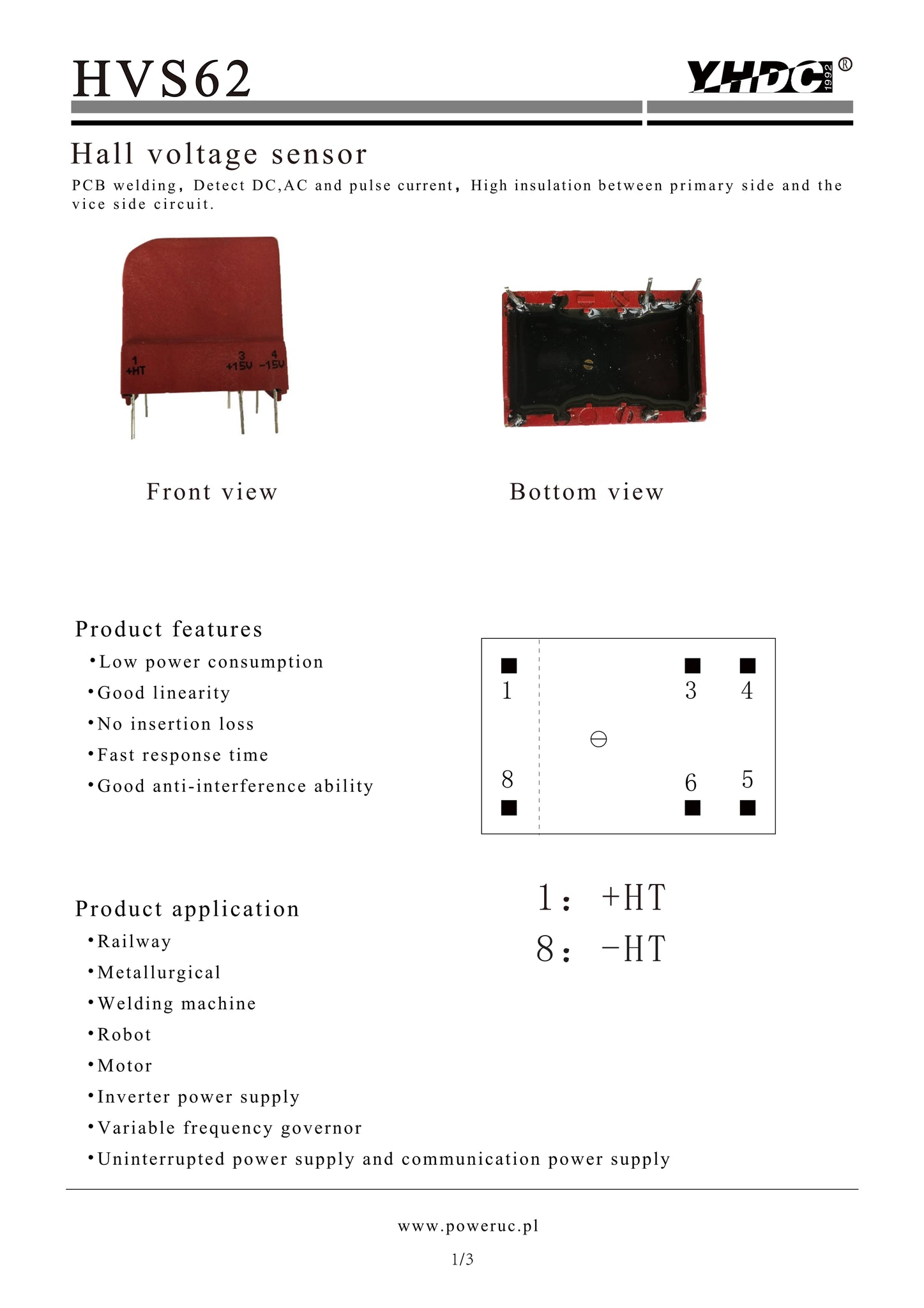

Voltage sensor HVS62 Rated input ±50V ±100V ±200V Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Closed loop current type,PCB mounting type;Current limiting resistance and sampling resistance built-in. Detect DC,AC and pulse voltage

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Dielectric strength：2.5KV 50Hz 1min

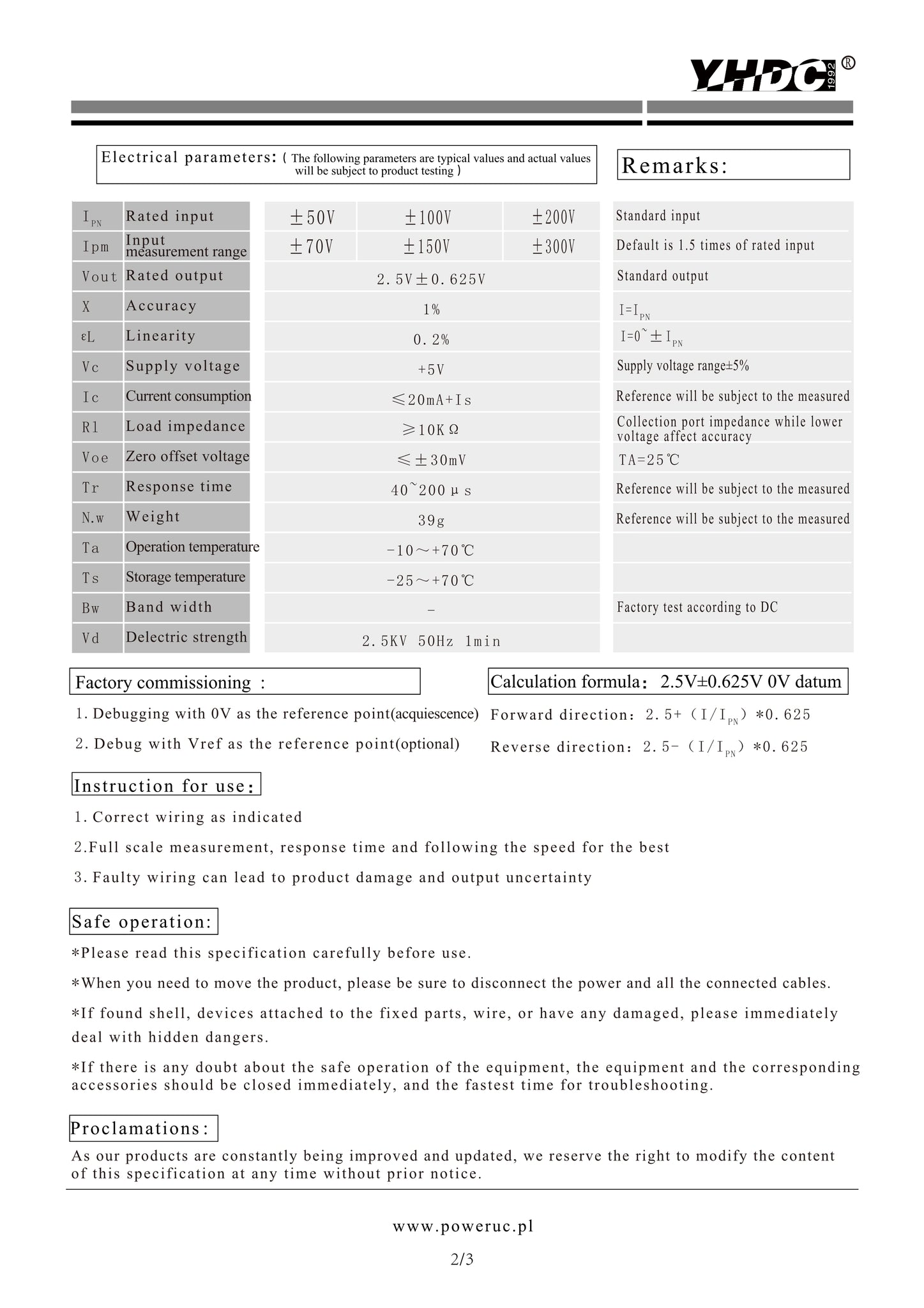

Electric parameters:

DOWNLOAD
