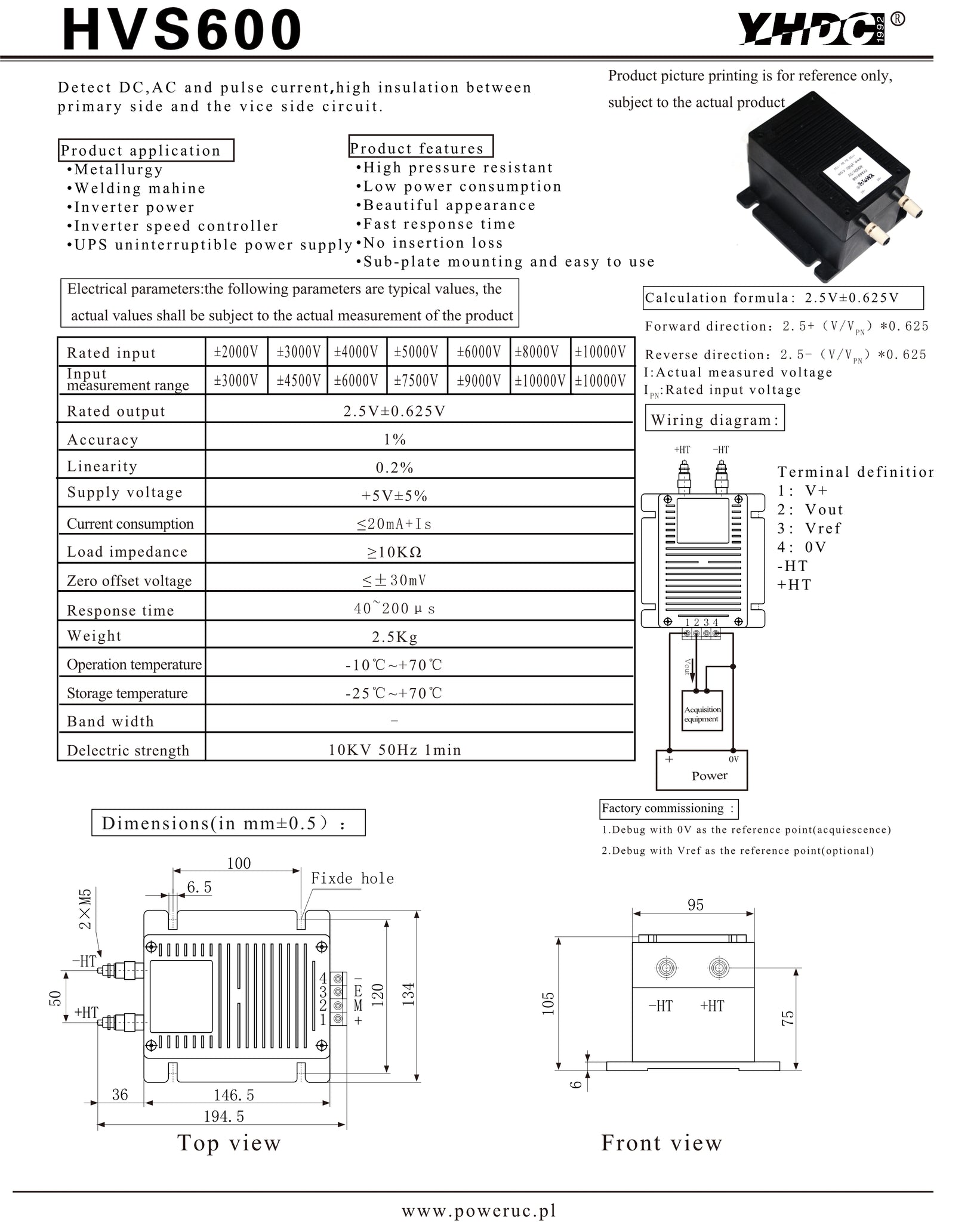

Hall voltage sensor HVS600GB Rated input ±2000V ±3000V ±4000V ±5000V ±6000V ±8000V ±10000V Rated output 2.5V±0.625V - PowerUC

Hall voltage sensor HVS600GB Rated input ±2000V ±3000V ±4000V ±5000V ±6000V ±8000V ±10000V Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Sub-plate installation, crimping terminal input/output.  Current limiting resistance and sampling resistance built-in, input and output voltage directly.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Dielectric strength: 10KV 50Hz 1min

Electrical parameters:

DOWNLOAD
