Hall voltage sensor HV4117TB Rated input ±50V ±100V ±200V ±300V ±400V ±500V Rated output ±5V - PowerUC

Hall voltage sensor HV4117TB Rated input ±50V ±100V ±200V ±300V ±400V ±500V Rated output ±5V

PowerUC

  • €12,97
    Unit price per
Shipping calculated at checkout.

Only 5 left!

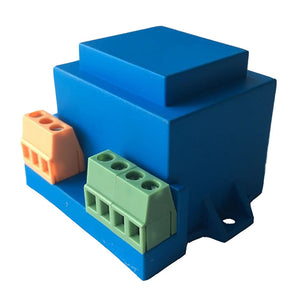

Model:HV4117TB

Sub-plate mounting type,Crimping terminal input/output; Current limiting resistance and sampling resistance built-in. Detect DC,AC and pulse voltage.

Technical index:

Flame resistance:UL94-V0

Operating temperature:-10~+70℃

Storage temperature:-25~+70℃

Dielectric strength:3.5KV 50Hz 1min

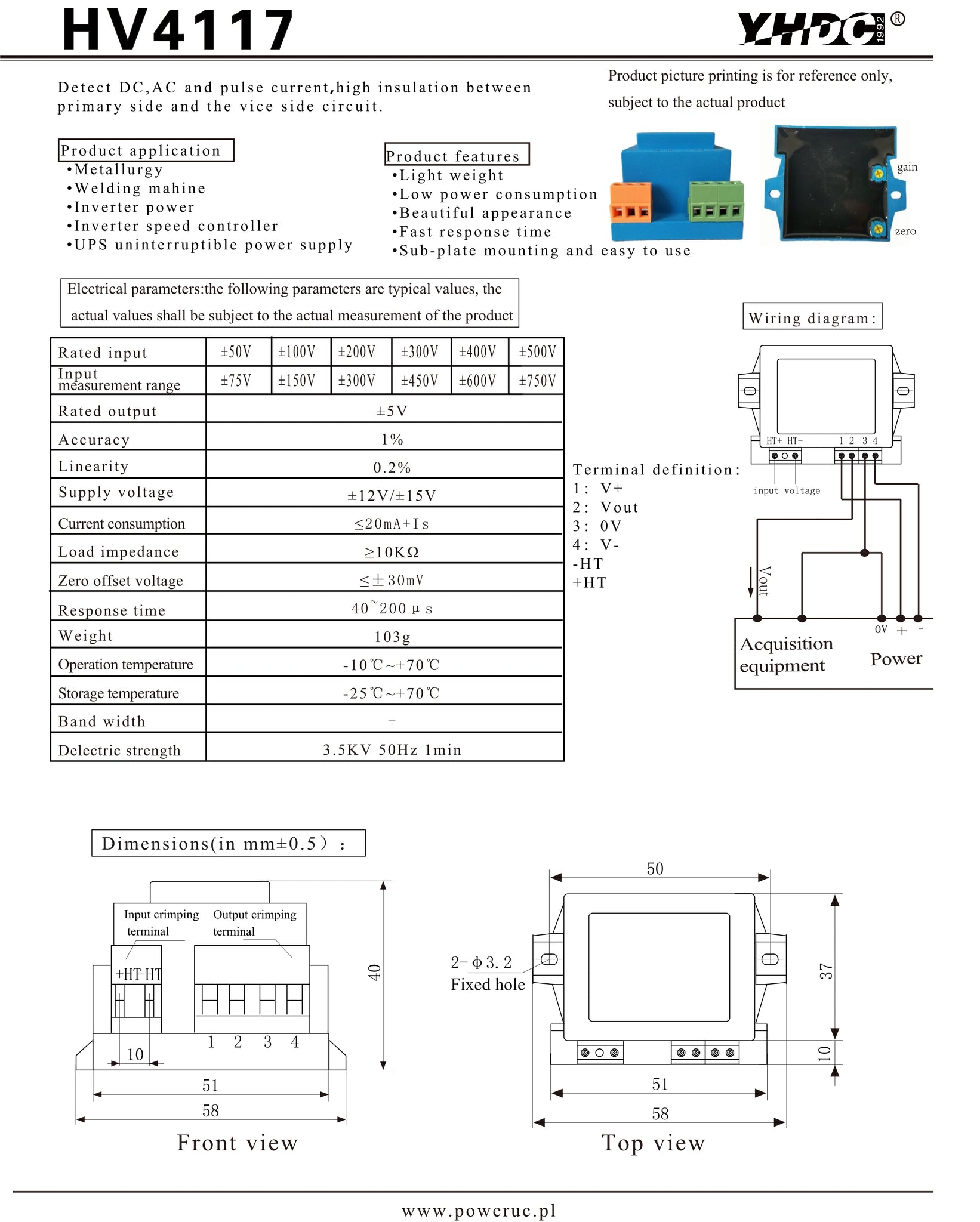

Electric parameters:

DOWNLOAD
