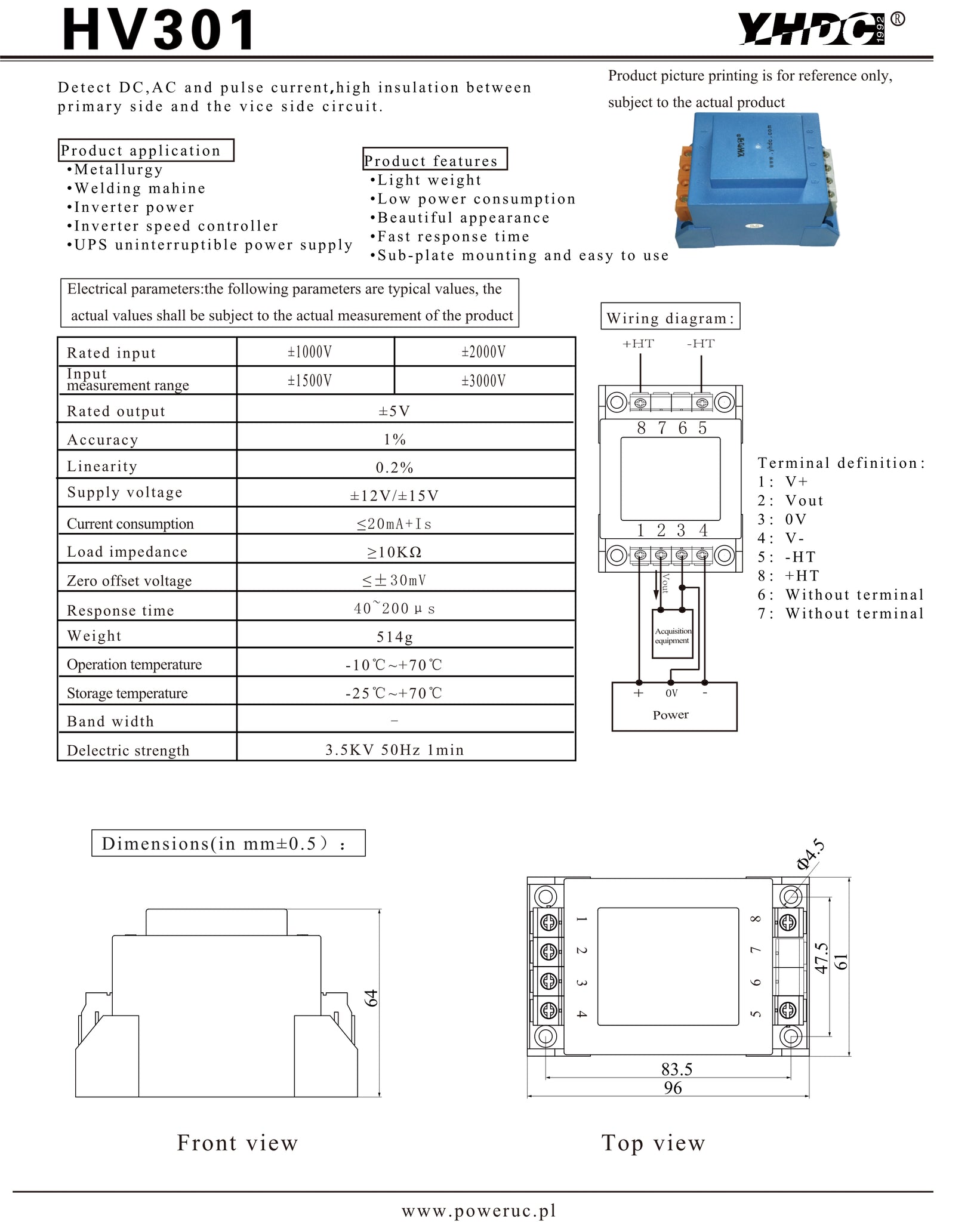

Voltage sensor HV301 Rated input ±1000V ±2000V Rated output ±5V

PowerUC

Shipping calculated at checkout.

Model：HV301

Detect DC,AC and puls e current, high insulation between primary side and the vice side circuit.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Dielectric strength：3.5KV 50Hz 1min

Electric parameters:

DOWNLOAD
