Hall voltage sensor HV25-□□□ Rated input ±200V ±500V ±800V ±1000V Rated output ±5V - PowerUC

Voltage sensor HV25-□□□ Rated input ±200V ±500V ±800V ±1000V Rated output ±5V/±25mA

PowerUC

  • €16,77
    Unit price per
Shipping calculated at checkout.

Only 5 left!

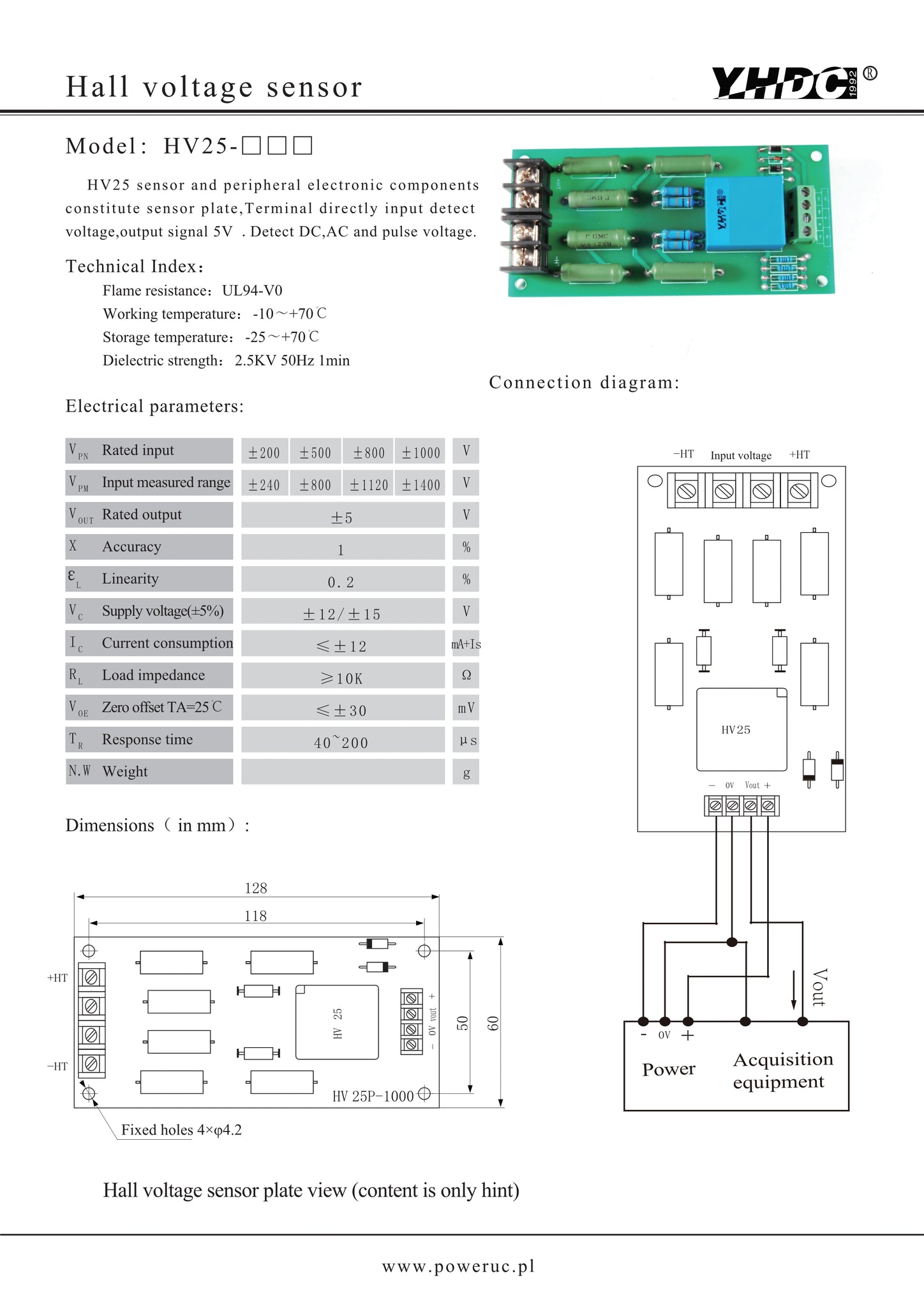

HV25 and peripheral electronic devices constitute the sensor board, with the plug terminal directly input the detection voltage, output 25mA signal. Detect DC voltage, AC voltage and pulse voltage.
HV25 and peripheral electronic devices constitute the sensor board, with a chip terminal directly input the  detection voltage,output 5V signal. Detect DC voltage,  AC voltage and pulse voltage.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Dielectric strength: 2.5KV 50Hz 1min

Electrical parameters:


DOWNLOAD-HV25-□□□-±5V

DOWNLOAD-HV25-□□□-±25mA
