Hall voltage sensor HV202 Rated input ±500V ±700V ±800V ±900V ±1000V Rated output ±5V - PowerUC

Voltage sensor HV202 Rated input ±500V ±700V ±800V ±900V ±1000V Rated output ±5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：HV202

Sub-plate mounting type, closed loop current type; Crimping terminal input/output; Current limiting resistance and sampling resistance built-in, input and output voltage directly.Detect DC,AC and pulse voltage

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Dielectric strength：3.5KV 50Hz 1min

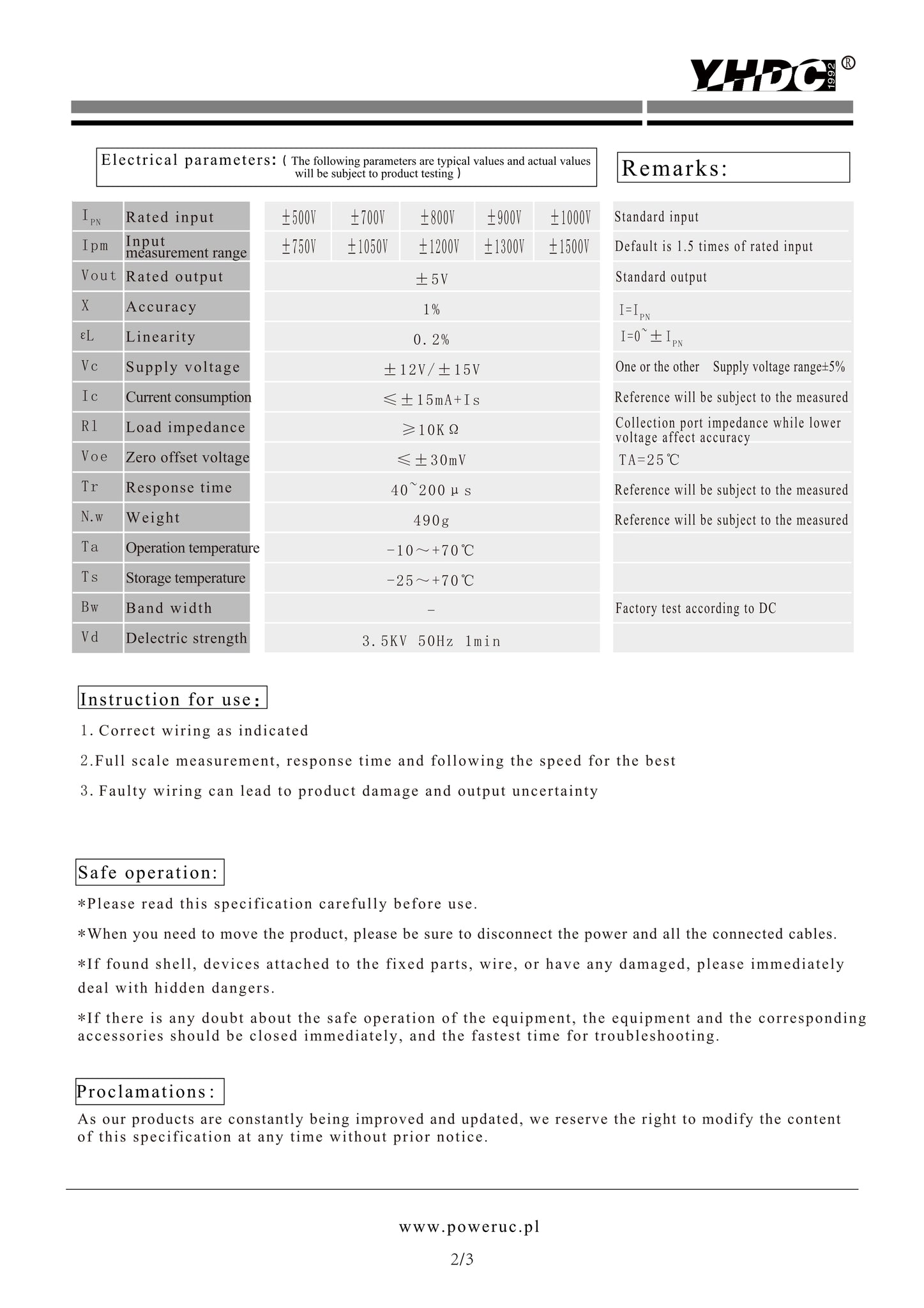

Electric parameters:

DOWNLOAD
