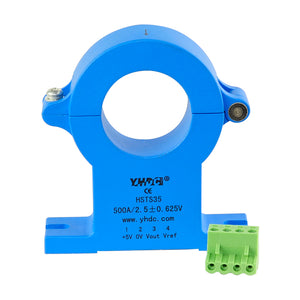

Split core current sensor HSTS35 Rated input ±200A ±500A ±800A ±1000A ±1200V ±1500A Rated output 2.5V±0.625V
Split core current sensor HSTS35 Rated input ±200A ±500A ±800A ±1000A ±1200V ±1500A Rated output 2.5V±0.625V

Split core current sensor HSTS35 Rated input ±200A ±500A ±800A ±1000A ±1200V ±1500A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 3 left!

Model: HSTS35

Open-loop split core type, split plate mounting type. Detect DC, AC and pulse currents.

Technical indicators:

Flame retardant: UL94-V0
Working temperature: -10~ + 70°C
Storage temperature: -25~ + 70°C
Bandwidth: DC ~ 25kHz
Dielectric strength: 2.5KV 50Hz 1min

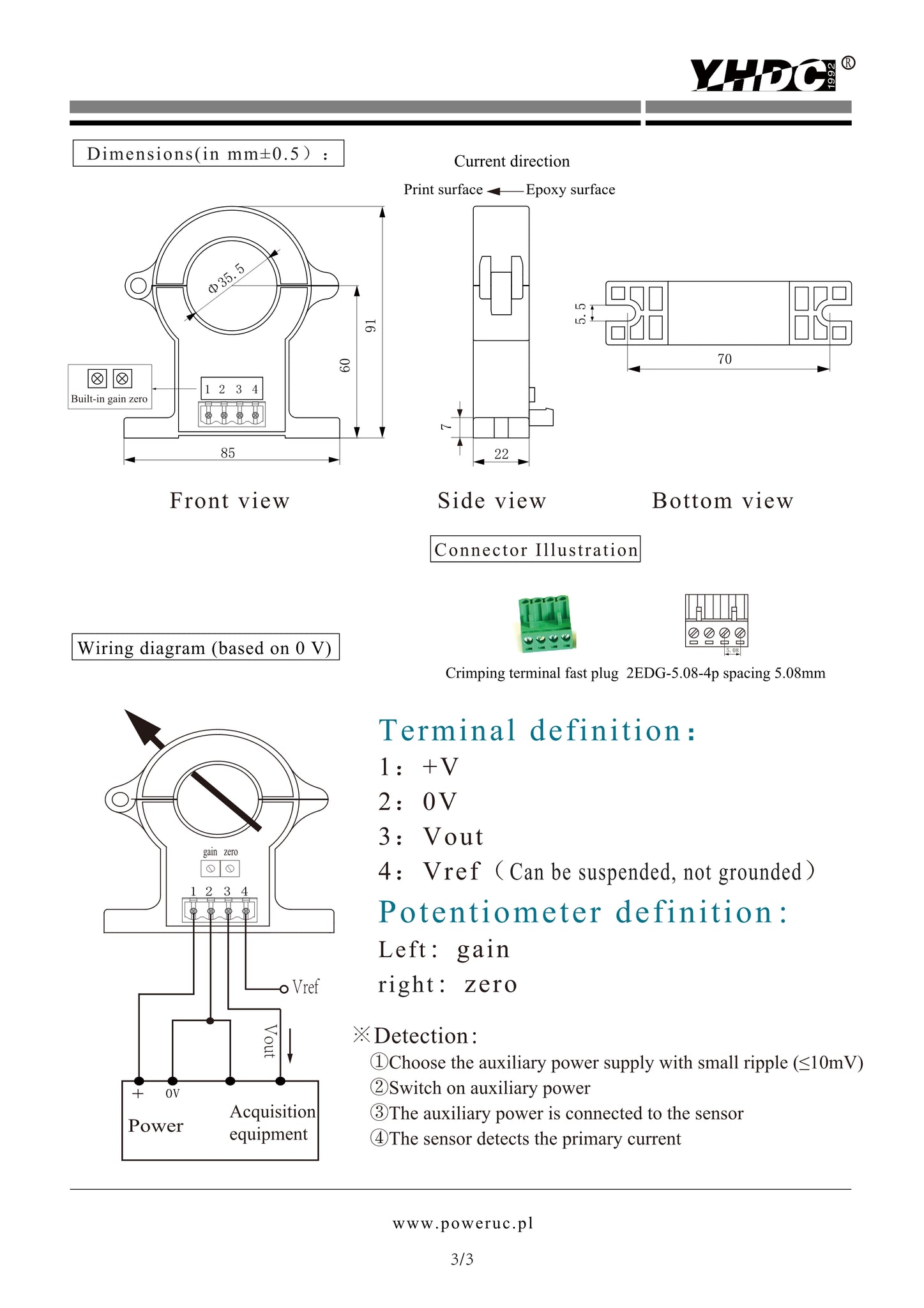

Electrical parameters:



DOWNLOAD
