Hall split core current sensor HSTS30 Rated input ±100A ±300A ±500A ±600A ±800A ±1000A Rated output 2.5V±0.625V - PowerUC

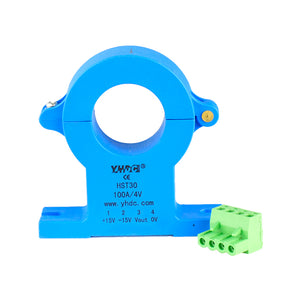

Split core current sensor HSTS30 Rated input ±100A ±300A ±500A ±600A ±800A ±1000A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 2 left!

Model：HSTS30

Open loop split core type,Sub-plate mounting type. Detect DC,AC and pulse current.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～25kHz

Dielectric strength：2.5KV 50Hz 1min

Electric parameters:

DOWNLOAD
