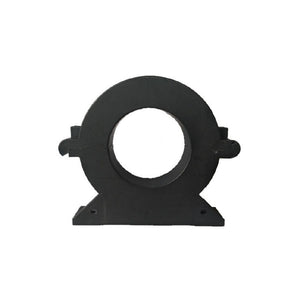

Split core current sensor HSTS100 Rated input ±500A ±800A ±1000A ±1200A ±1500A ±2000A Rated output 2.5V±0.625V
Model:HSTS100
Detect DC,AC and puls e current, high insulation between primary side and the vice side circuit.
Technical index:
Flame resistance:UL94-V0
Operating temperature:-10~+70℃
Storage temperature:-25~+70℃
Bandwidth:DC~10kHz
Dielectric strength:3KV 50Hz 1min

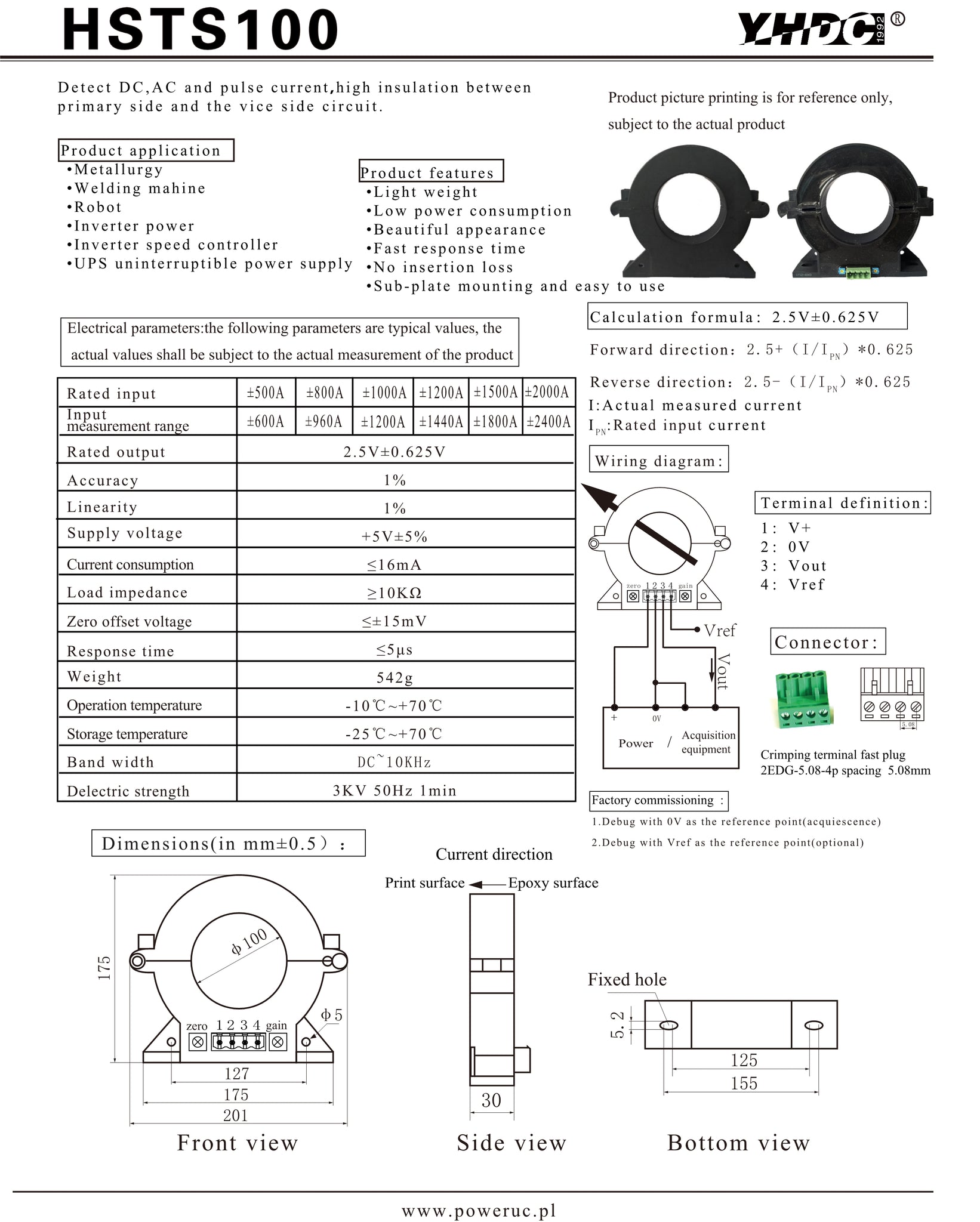

Electric parameters:
DOWNLOAD
