Split core current sensor HSTS023R Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V
Split core current sensor HSTS023R Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V
Split core current sensor HSTS023R Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V
Split core current sensor HSTS023R Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V

Split core current sensor HSTS023R Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:HSTS023R

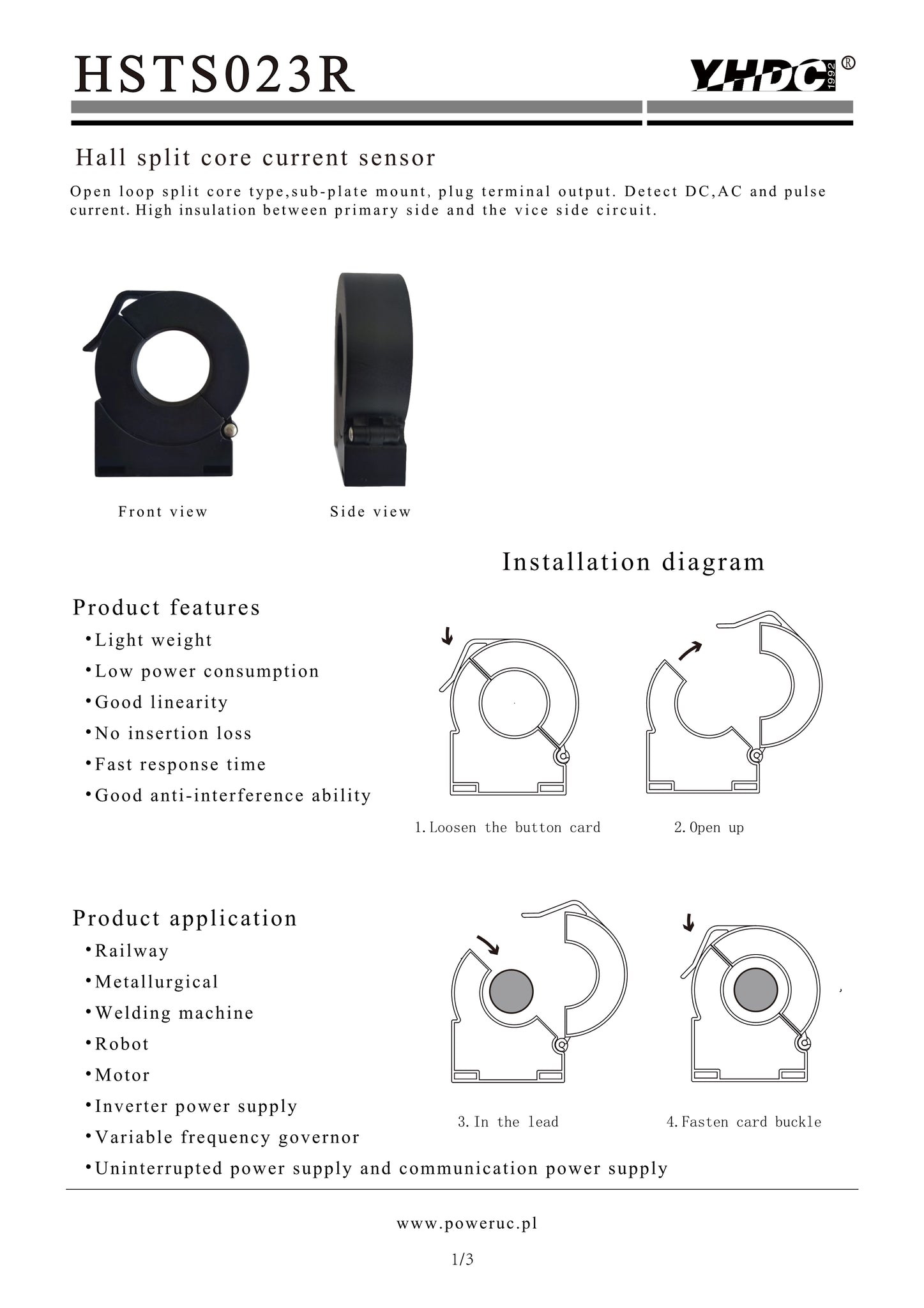

Open loop split core type,sub-plate mount , plug terminal output . Detect DC,AC and pulse current.High insulation between primary side and the vice side circuit.

Technical index:

 Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～25KHz

Dielectric strength：2.5KV 50Hz 1min

Electric parameters:
