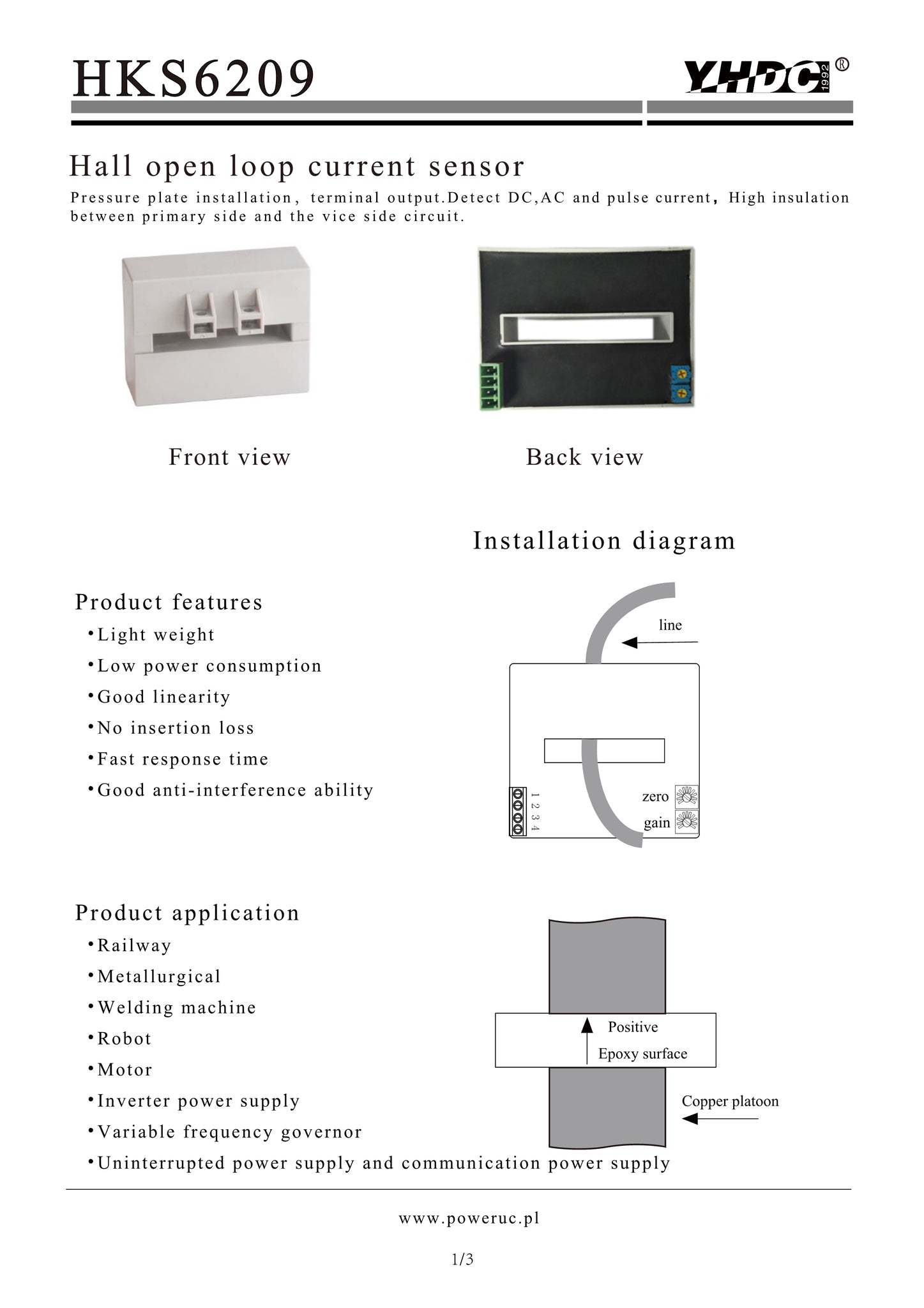

Hall open loop current sensor HKS6209 Rated input ±200A ±300A ±400A ±500A ±600A ±800A Rated output 2.5V±0.625V - PowerUC

Hall open loop current sensor HKS6209 Rated input ±200A ±300A ±400A ±500A ±600A ±800A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Open loop hall circuit, sub-plate installation.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 2.5KV 50Hz 1min

Electrical parameters:

DOWNLOAD
