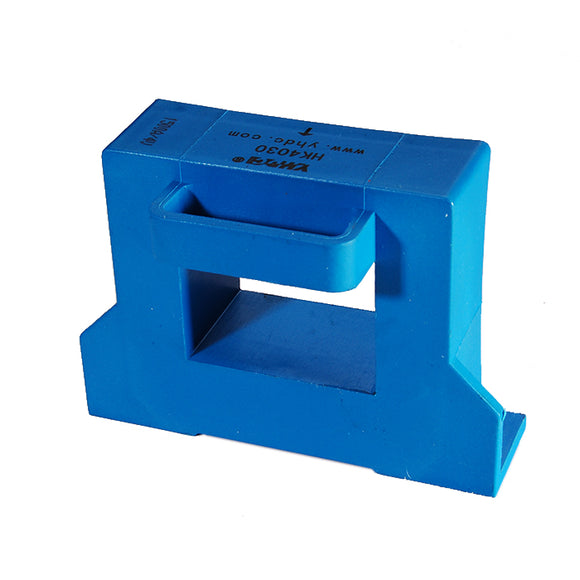

Hall open loop current sensor HKS4030 Rated input  200A 400A 500A 600A 800A 1000A 1200A 1500A Rated output 2.5±0.625V - PowerUC

Hall open loop current sensor HKS4030 Rated input 200A 400A 500A 600A 800A 1000A 1200A 1500A Rated output 2.5±0.625V

YHDC

  • €20,83
    Unit price per

Only 0 left!
Will be in stock after

Open loop hall circuit, sub-plate installation.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -40°C ~ +85°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 4.5KV 50Hz 1min

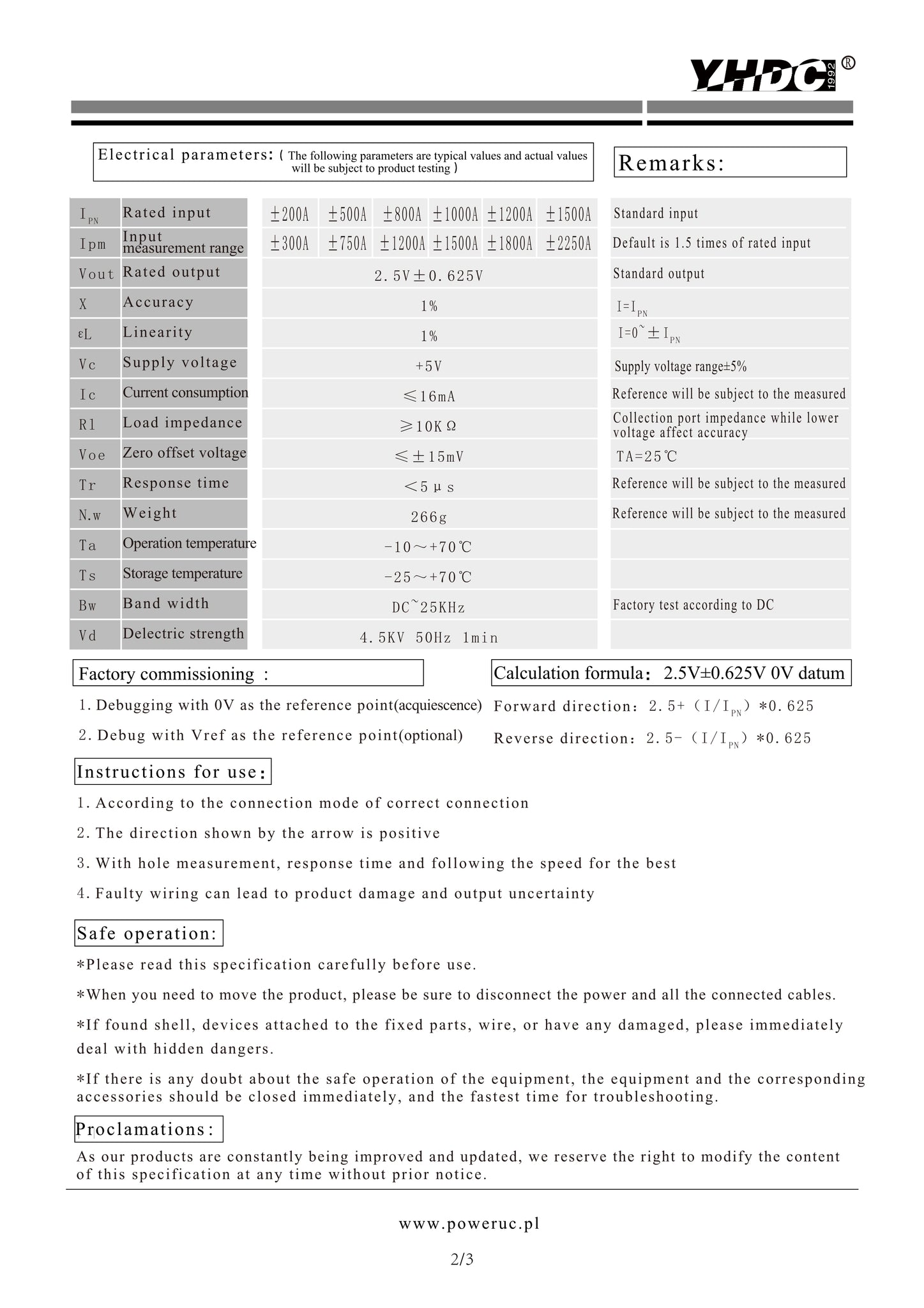

Electrical parameters:
