Closed loop multi-range current sensor HTS25 Rated input ±25A Rated output 2.5V±0.625V/1.65V±0.625V Rated supply voltage +5V/+3.3V (with Vref and without Vref)

PowerUC

  • €6,13
    Unit price per
Shipping calculated at checkout.

Only 10 left!

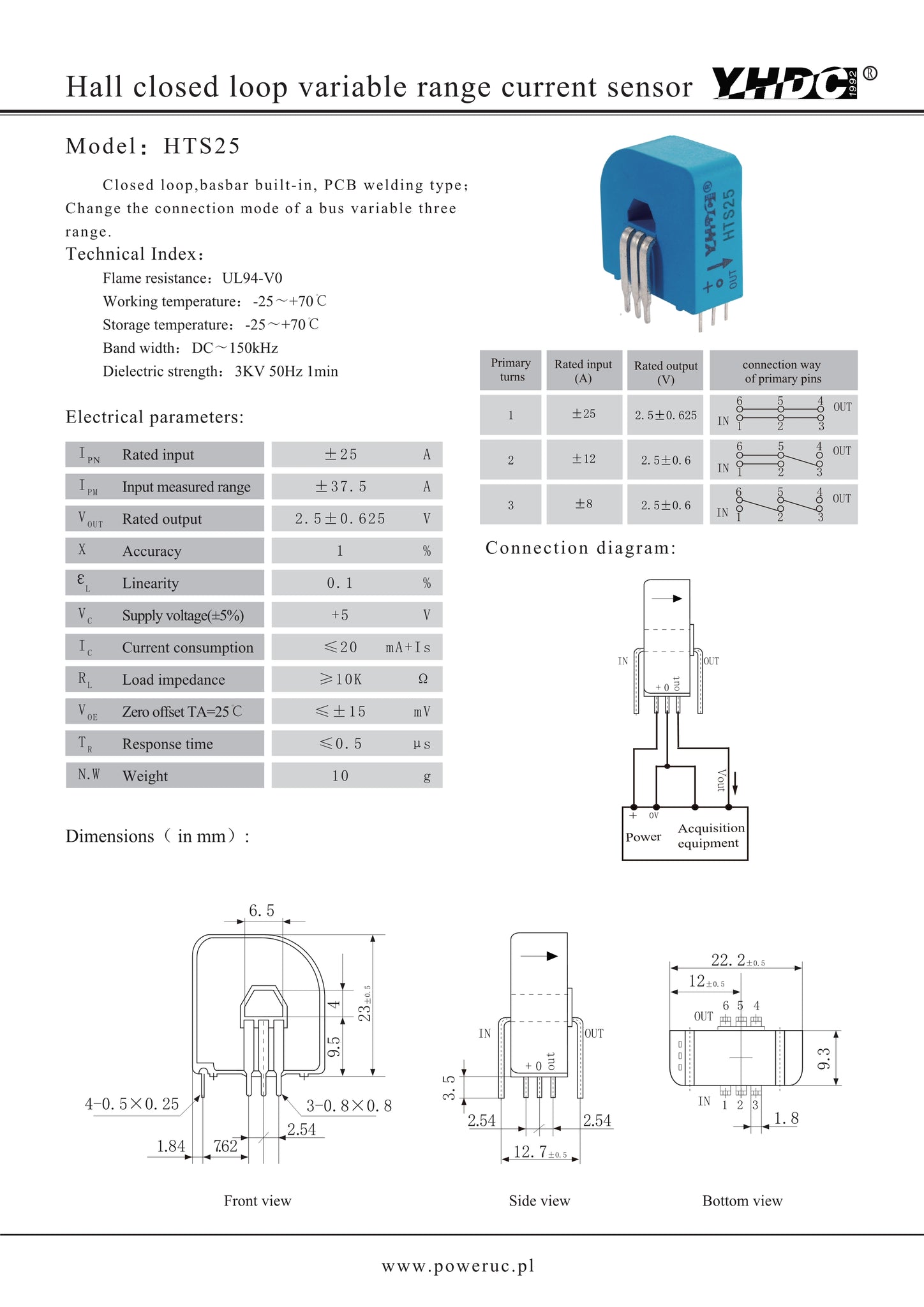

Model:HTS25

Detect DC,AC and puls e current, high insulation between primary side and the vice side circuit. Change the connection mode of primary bus-bar can be converted into three measuring range.


Technical index:

Flame resistance:UL94-V0

Operating temperature:-25~+70℃

Storage temperature:-25~+70℃

Bandwidth:DC~150kHz

Dielectric strength:3KV 50Hz 1min

Electric parameters:

DOWNLOAD-HTS25 ±25A 2.5V±0.625V +5V(with Vref)

DOWNLOAD-HTS25 ±25A 2.5V±0.625V +5V(without Vref)

DOWNLOAD-HTS25 ±25A 1.65V±0.625V +3.3V(with Vref)

DOWNLOAD-HTS25 ±25A 1.65V±0.625V +3.3V(without Vref)
