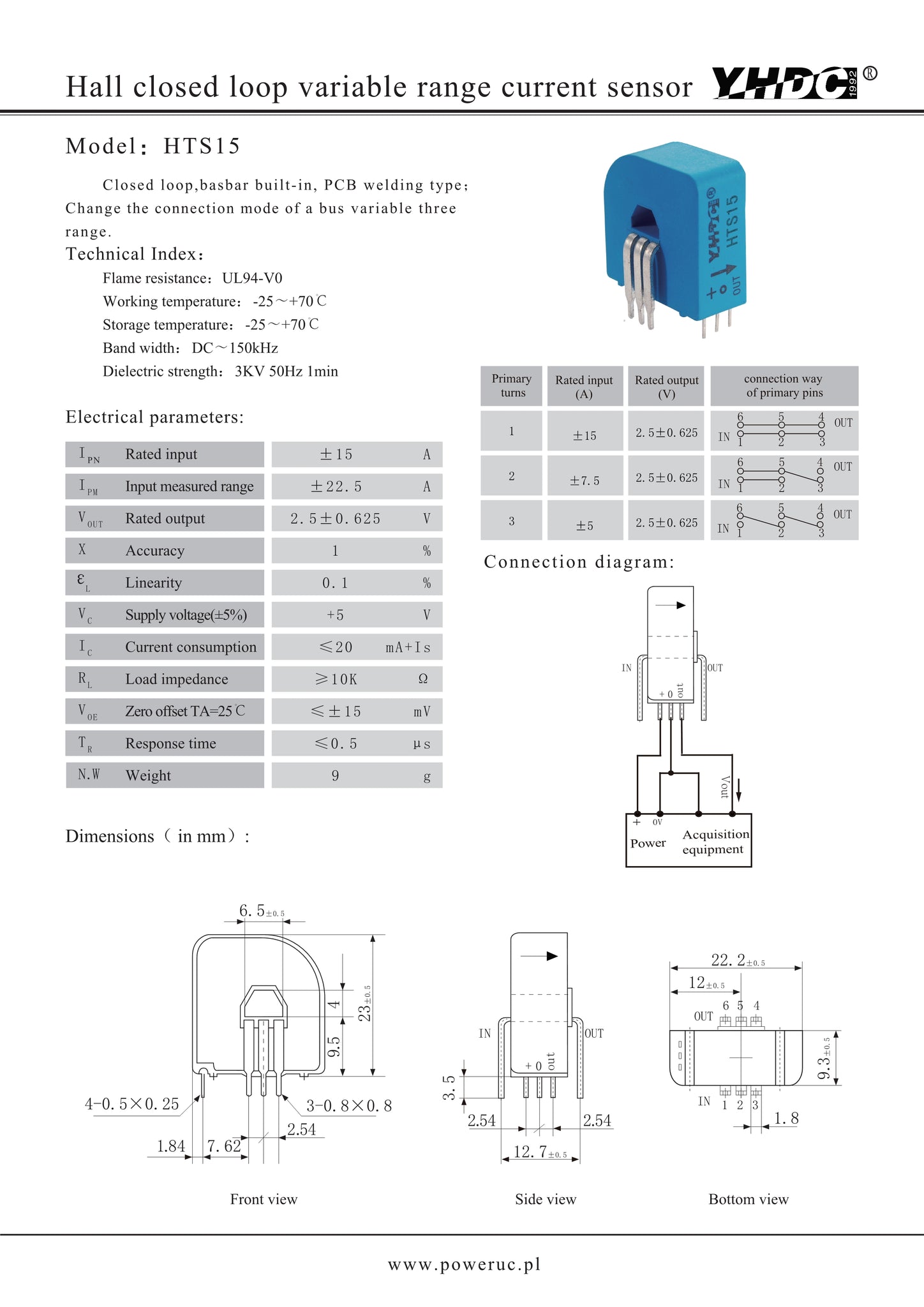

Hall closed loop variable range current sensor HTS15 Rated input ±15A Rated output 2.5V±0.625V - PowerUC

Hall closed loop variable range current sensor HTS15 Rated input ±15A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 10 left!

Model：HTS15

Closed loop,basbar built-in, PCB mounting type; Change the connection way of primary busbar can get three variable range.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-25～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～150kHz

Dielectric strength：3KV 50Hz 1min

Electric parameters:


DOWNLOAD
