Split core current sensor HST023R-T Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output ±4V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

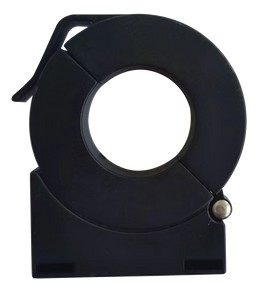

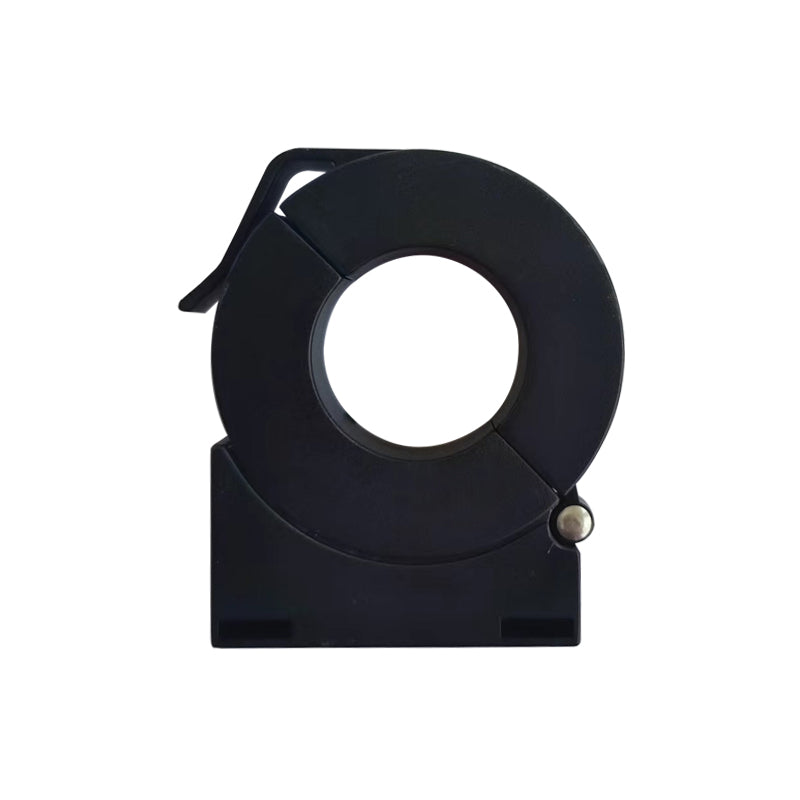

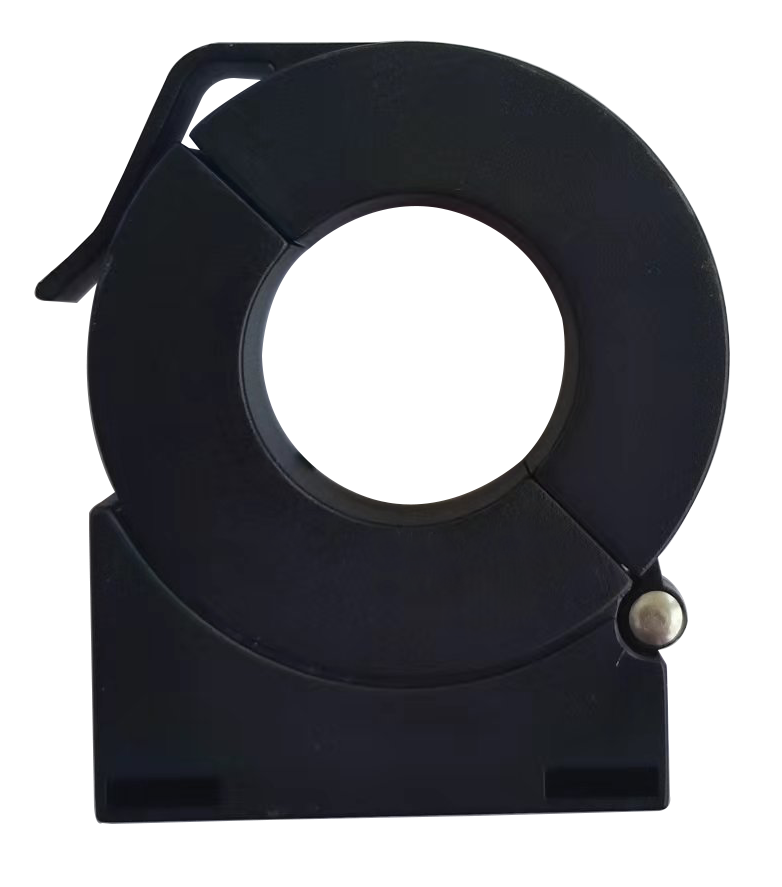

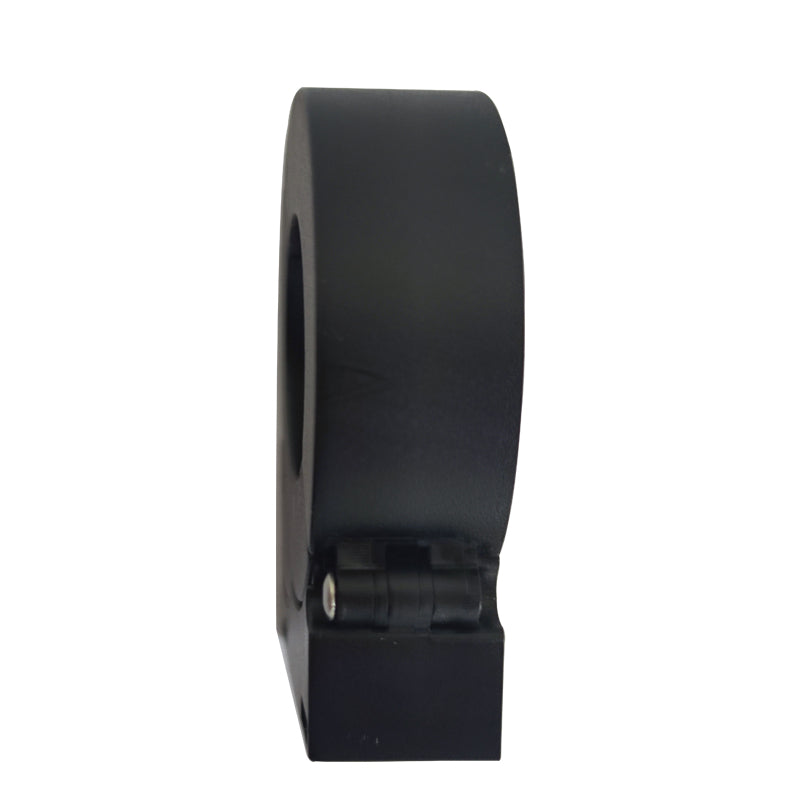

Model:HST023R-T

Open loop split core type,sub-plate mount , plug terminal output . Detect DC,AC and pulse current.High insulation between primary side and the vice side circuit.

Technical indicators:

Flame resistance:UL94-V0

Operating temperature:-10~+70℃

Storage temperature:-25~+70℃

Bandwidth:DC~25kHz

Dielectric strength:2.5KV 50Hz 1min

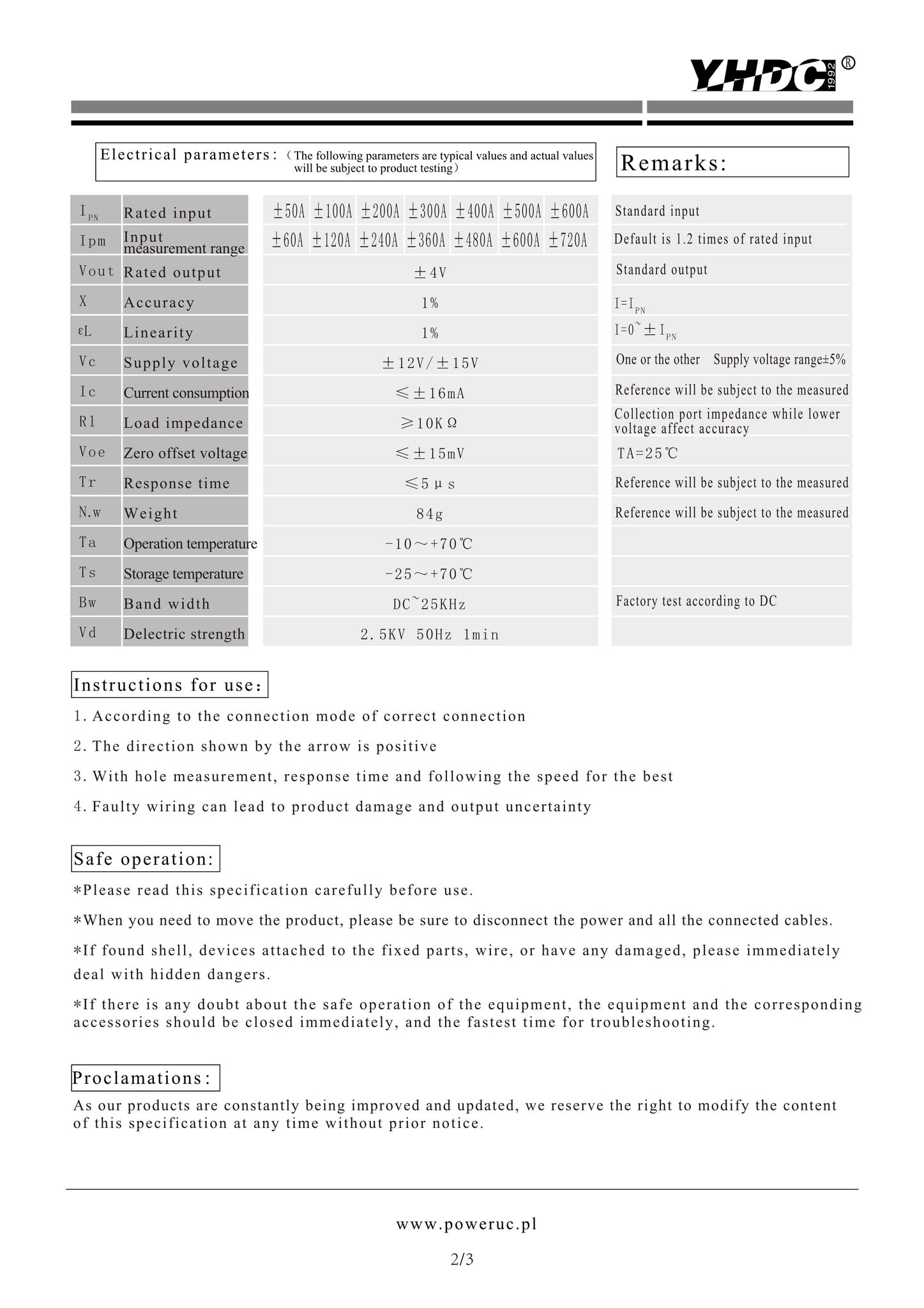

Electric parameters:

DOWNLOAD
