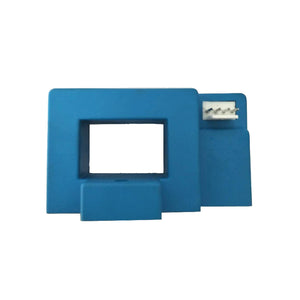

Hall sensor HKS2416/A Rated input ±100A ±200A ±400A ±500A ±600A ±800A Rated output 2.5V±2V

Hall sensor HKS2416/A Rated input ±100A ±200A ±400A ±500A ±600A ±800A Rated output 2.5V±2V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:HKS2416/A

Characteristics:

Detect DC,AC and puls e current，High insulation between primary side and the vice side circuit.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 2.5KV 50Hz 1min

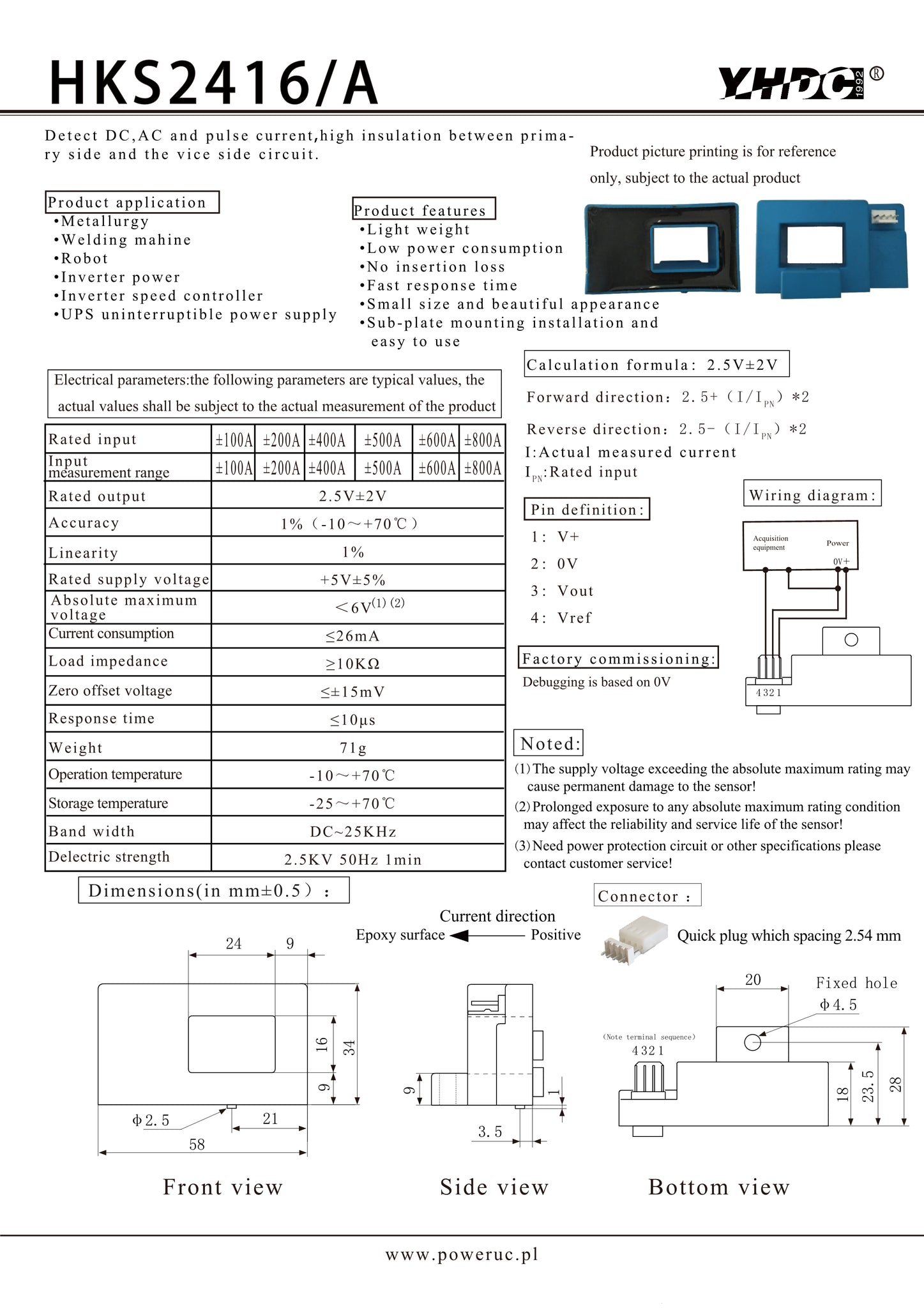

Electrical Parameters:

DOWNLOAD
