Hall sensor HKS1508/A Rated input ±50A ±100A ±200A ±300A ±500A  ±600A  Rated output 2.5V±2V

Hall sensor HKS1508/A Rated input ±50A ±100A ±200A ±300A ±500A ±600A Rated output 2.5V±2V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

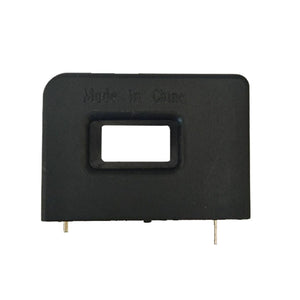

Model:HKS1508/A

Characteristics:

Detect DC,AC and puls e current,High insulation between primary side and the vice side circuit.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 2.5KV 50Hz 1min

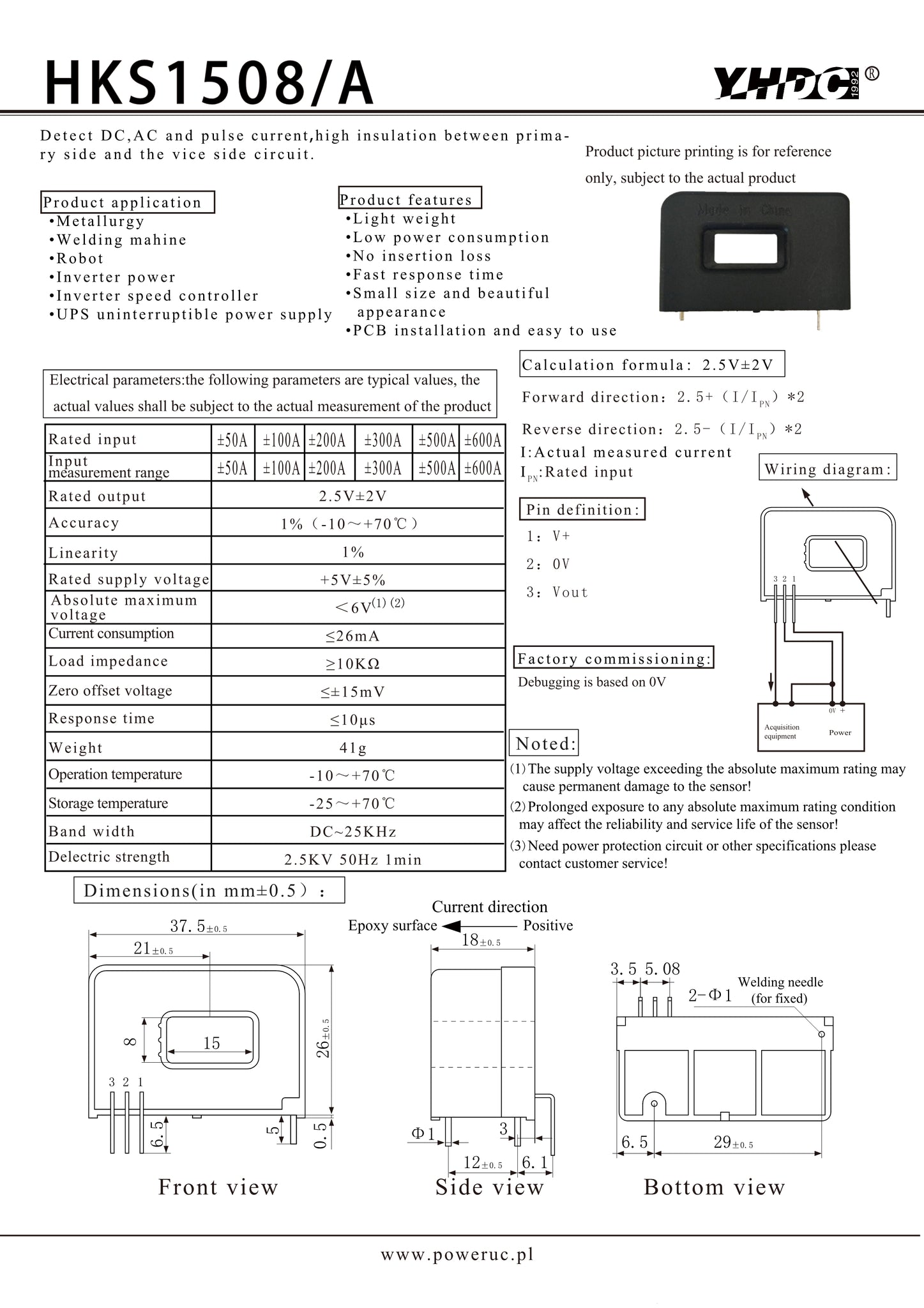

Electrical Parameters:

DOWNLOAD
