Hall split core current sensor HSTS30 Rated input ±100A ±300A ±500A ±600A ±800A ±1000A Rated output 2.5V±0.625V - PowerUC

Split core current sensor HSTS30 Rated input ±100A ±300A ±500A ±600A ±800A ±1000A Rated output 2.5V±0.625V

PowerUC

  • €14,75
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Model:HSTS30

Open loop split core type,Sub-plate mounting type. Detect DC,AC and pulse current.

Technical index:

Flame resistance:UL94-V0

Operating temperature:-10~+70℃

Storage temperature:-25~+70℃

Bandwidth:DC~25kHz

Dielectric strength:2.5KV 50Hz 1min

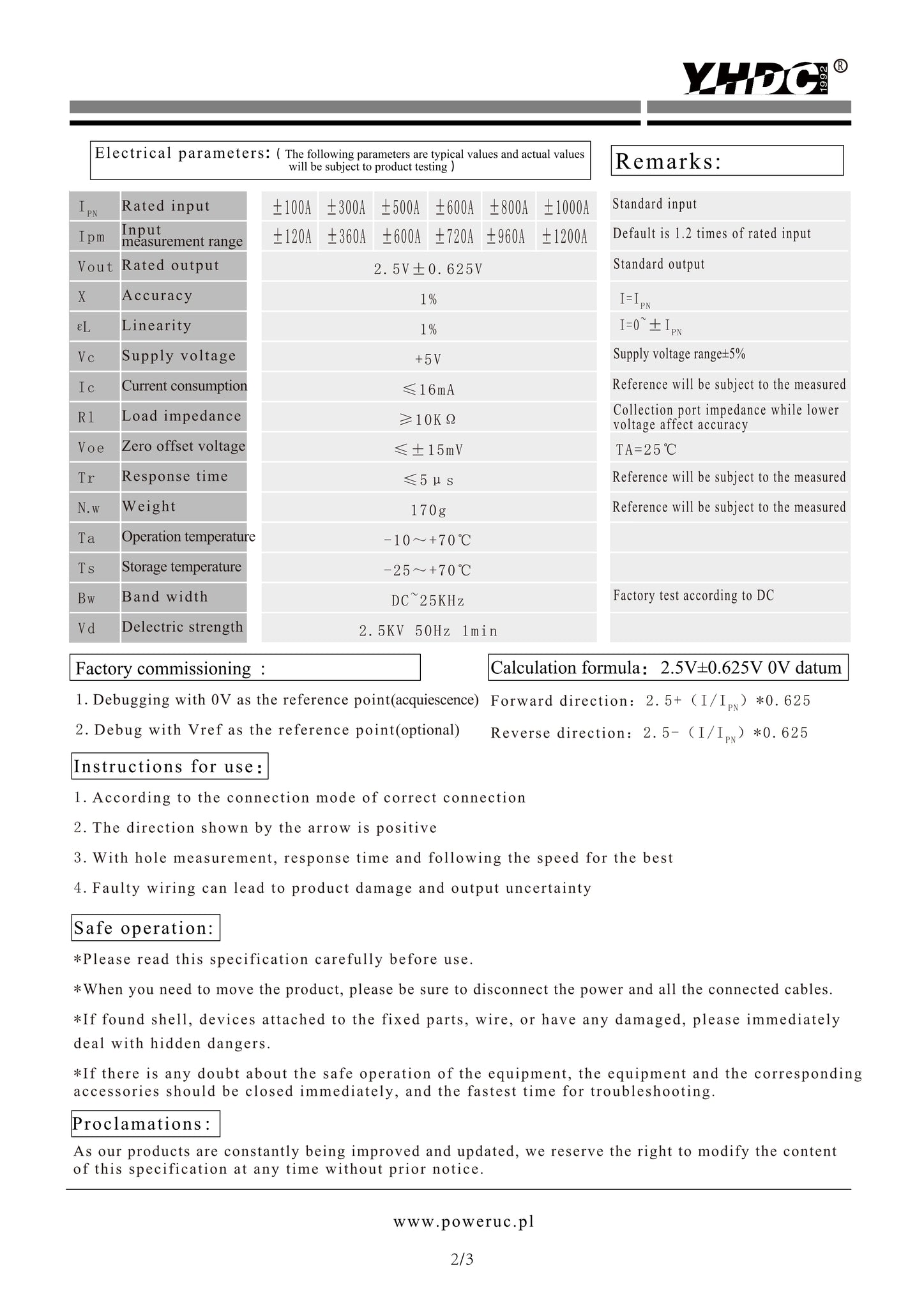

Electric parameters:

DOWNLOAD
