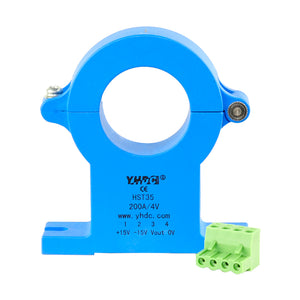

Hall split core current sensor HST35 Rated input ±200A ±500A ±800A ±1000A ±1200A ±1500A Rated output ±4V - PowerUC

Split core current sensor HST35 Rated input ±200A ±500A ±800A ±1000A ±1200A ±1500A Rated output ±4V

PowerUC

Shipping calculated at checkout.
Only 9 left!

型号：HST35

开环分裂铁芯型，分裂板安装型。检测直流、交流和脉冲电流。

技术指标：

阻燃：UL94-V0
工作温度：-10~+70°C
储存温度：-25~+70°C
带宽：DC~25kHz
介电强度：2.5KV 50Hz 1min

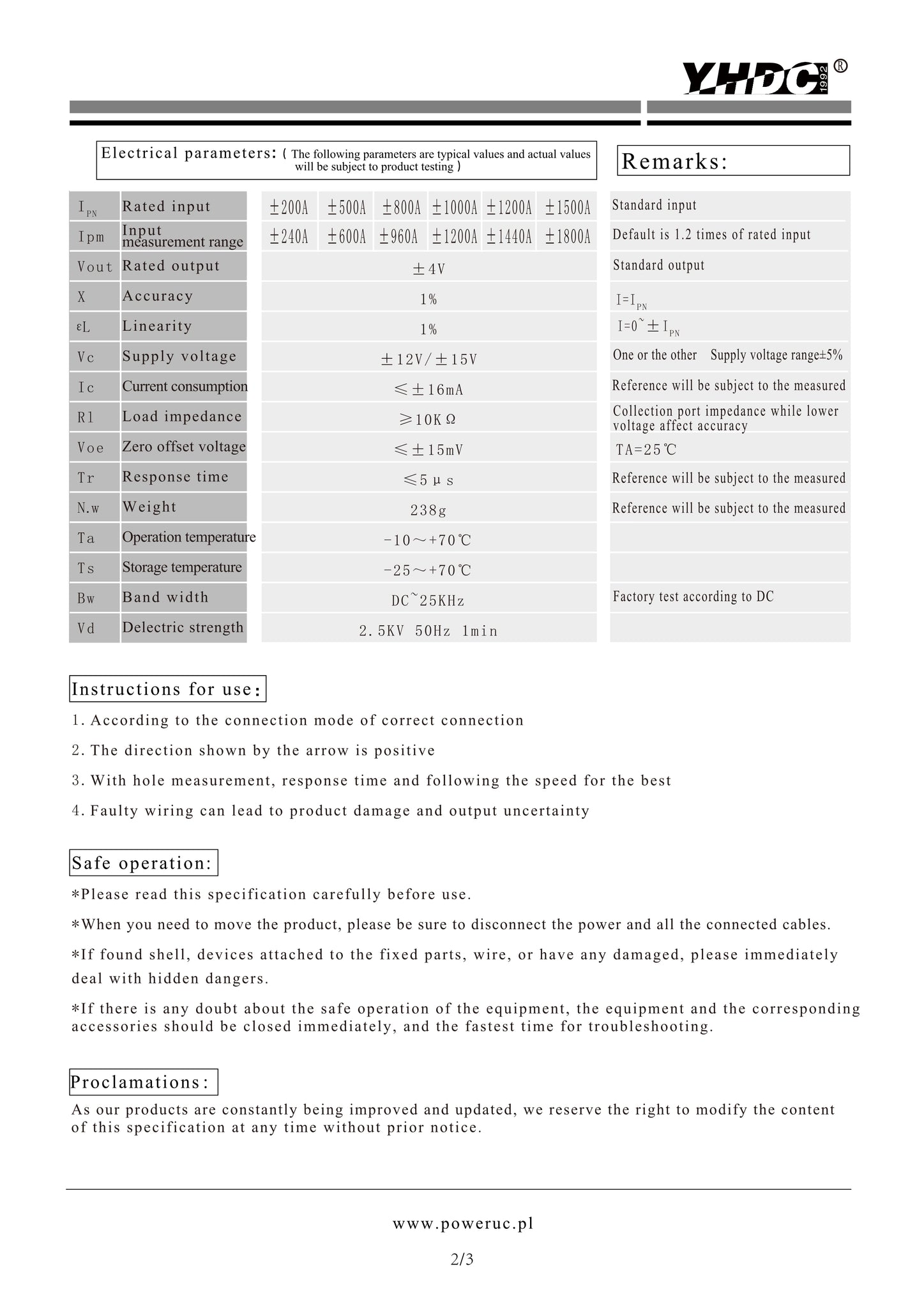

电气参数：

下载
