Hall open loop current sensor HKS1508 Rated input ±50A ±100A ±150A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±1.5V - PowerUC

Open loop current sensor HKS1508 Rated input ±50A ±100A ±150A ±200A ±300A ±400A ±500A ±600A Rated output 2.5V±1.5V

PowerUC

  • €18,05
    Unit price per
Shipping calculated at checkout.

Only 2 left!

Open loop current detection.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 2.5KV 50Hz 1min

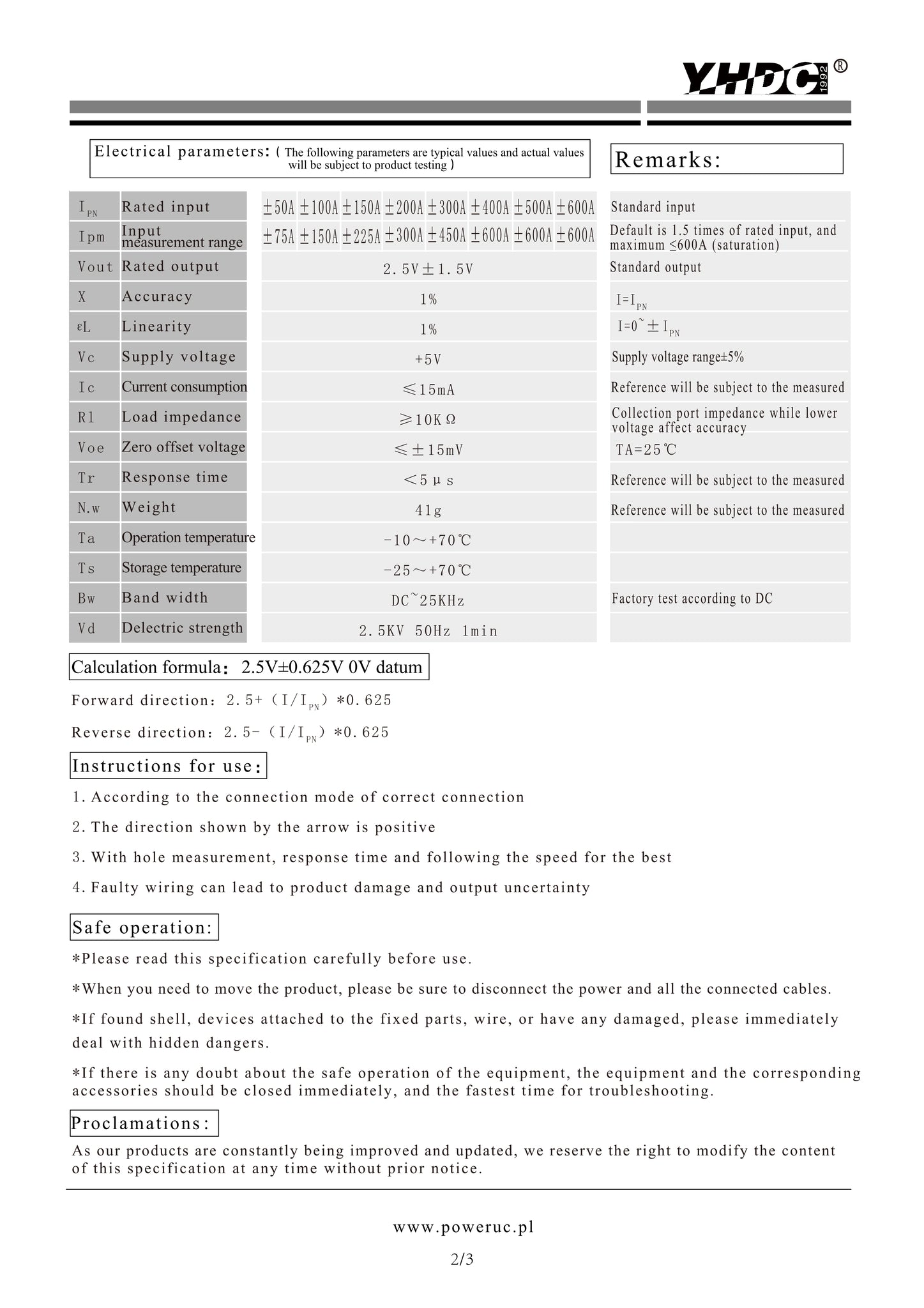

Electrical parameters:

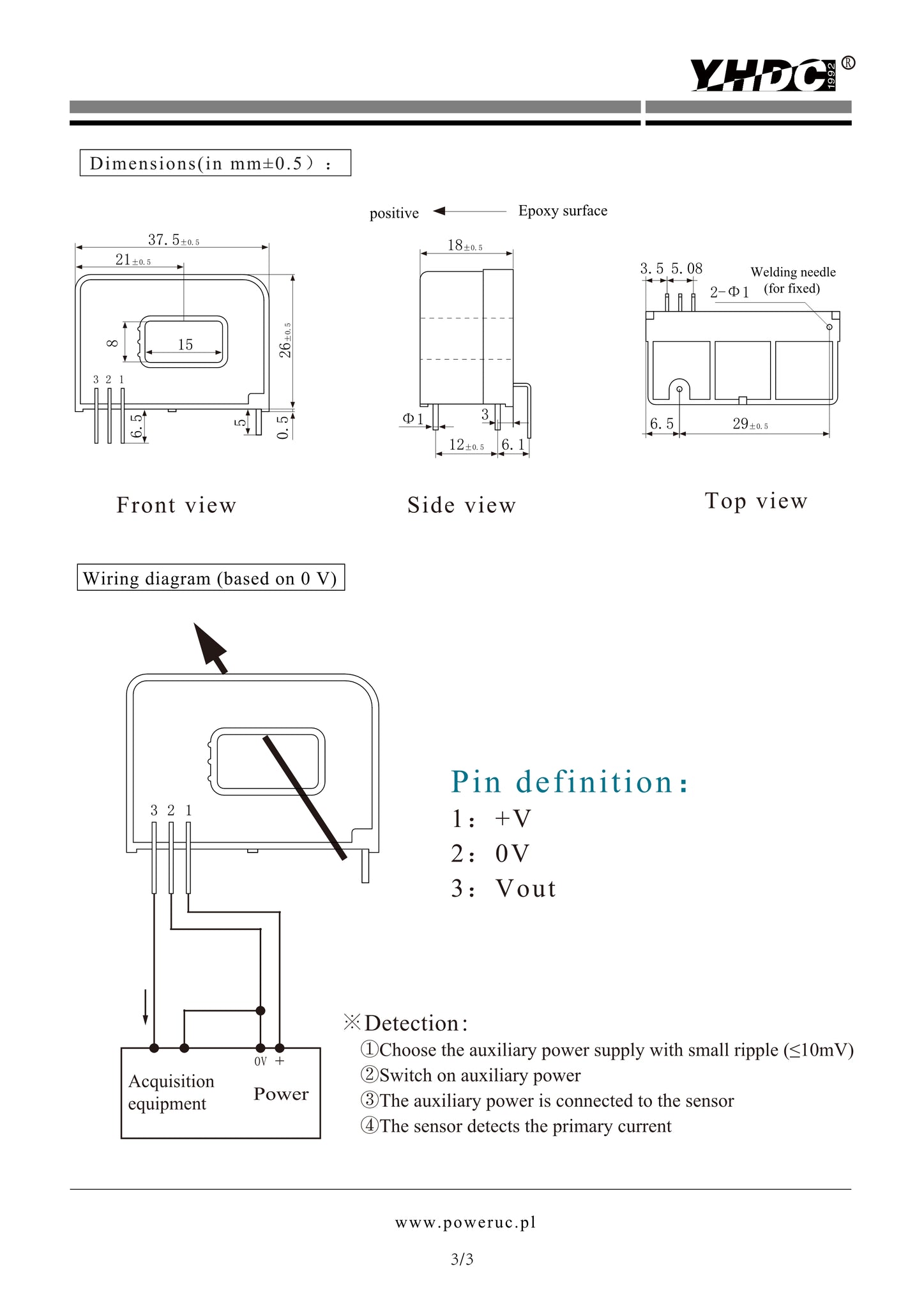

DOWNLOAD
