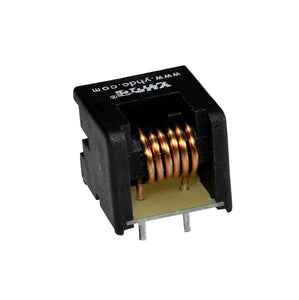

Open loop current sensor HK18-30 Rated input ±3A ±5A ±10A ±30A Rated output ±4V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Open loop hall circuit, busbar built-in, PCB welding type.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 3KV 50Hz 1min

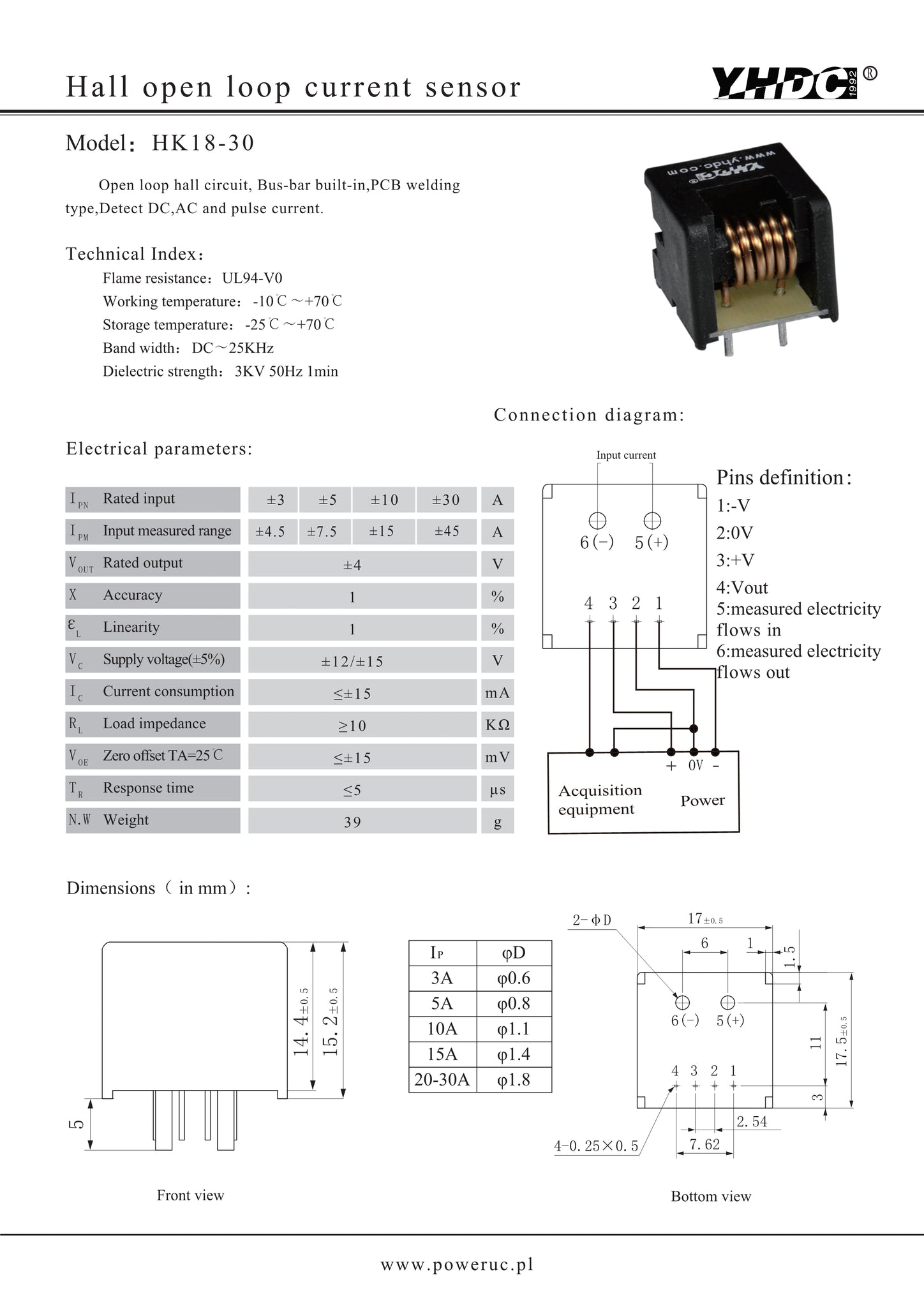

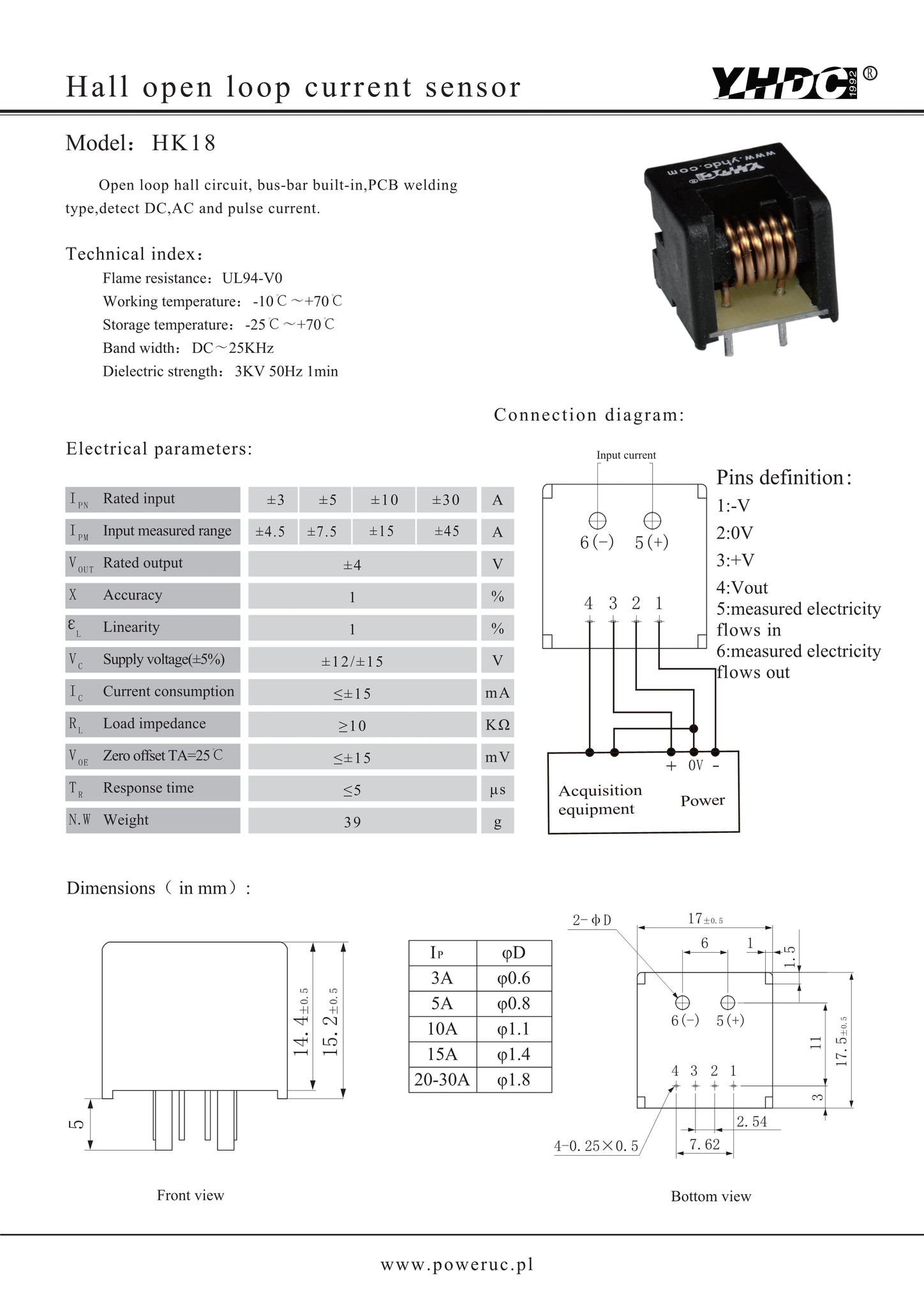

Electrical parameters:

DOWNLOAD
