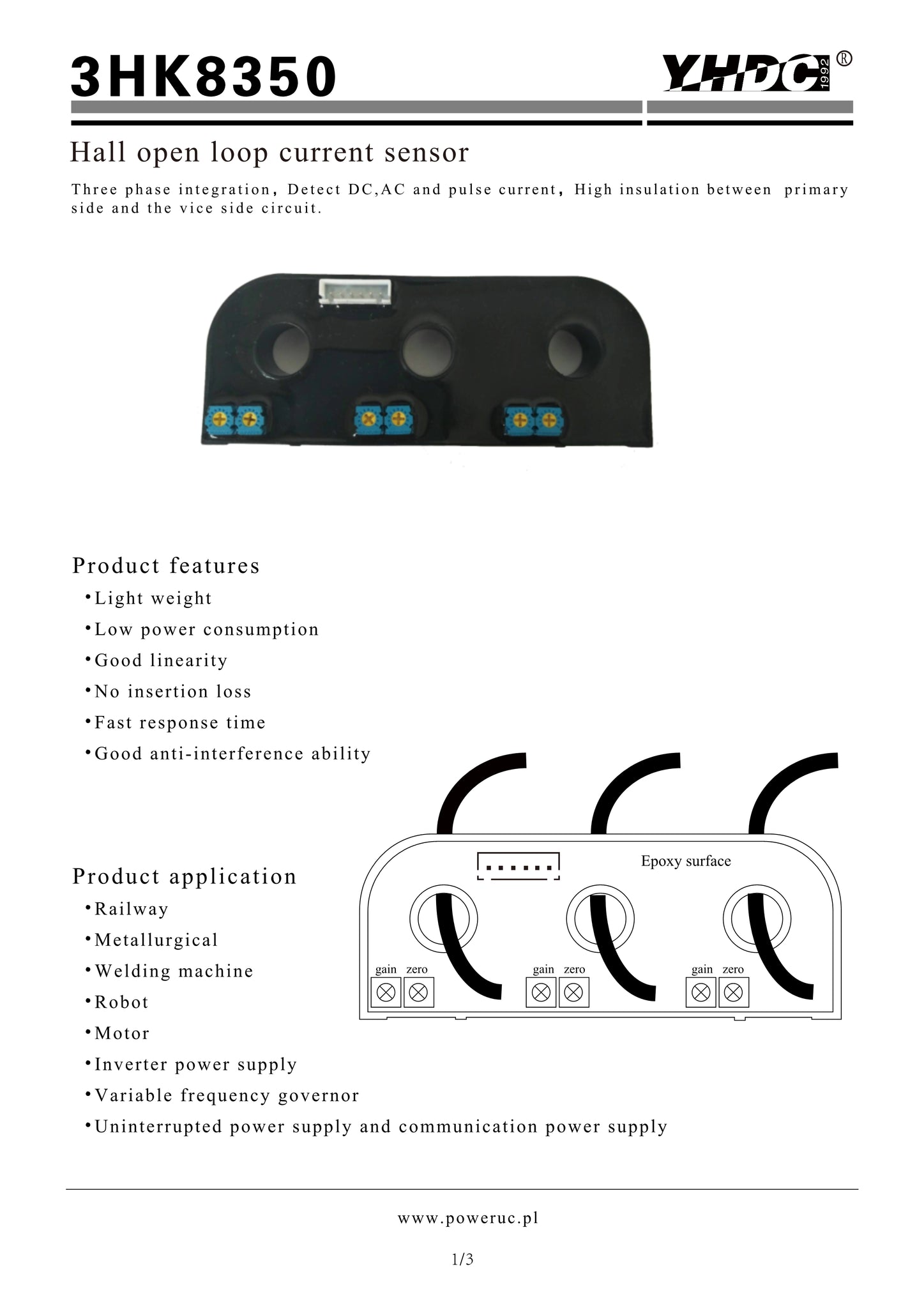

Hall open loop current sensor 3HK8350 Rated input ±50A ±100A ±200A ±300A ±400A Rated output ±4V - PowerUC

Three-phase current sensor 3HK8350 Rated input 50A 100A 200A 300A 400A Rated output ±4V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：3HK8350

Characteristic:

Three phase current sensor, open-loop Hall circuit, built-in bus, PCB welding type. Detect DC, AC and pulse current.

Technical indicators:

Flame resistance: UL94-V0
Working temperature: - 10 ° C ～ + 70 ° C
Storage temperature: - 25 ° C ～ + 70 ° C
Bandwidth: DC ~ 50KHz
Dielectric strength: 2.5KV, 50Hz, 1min

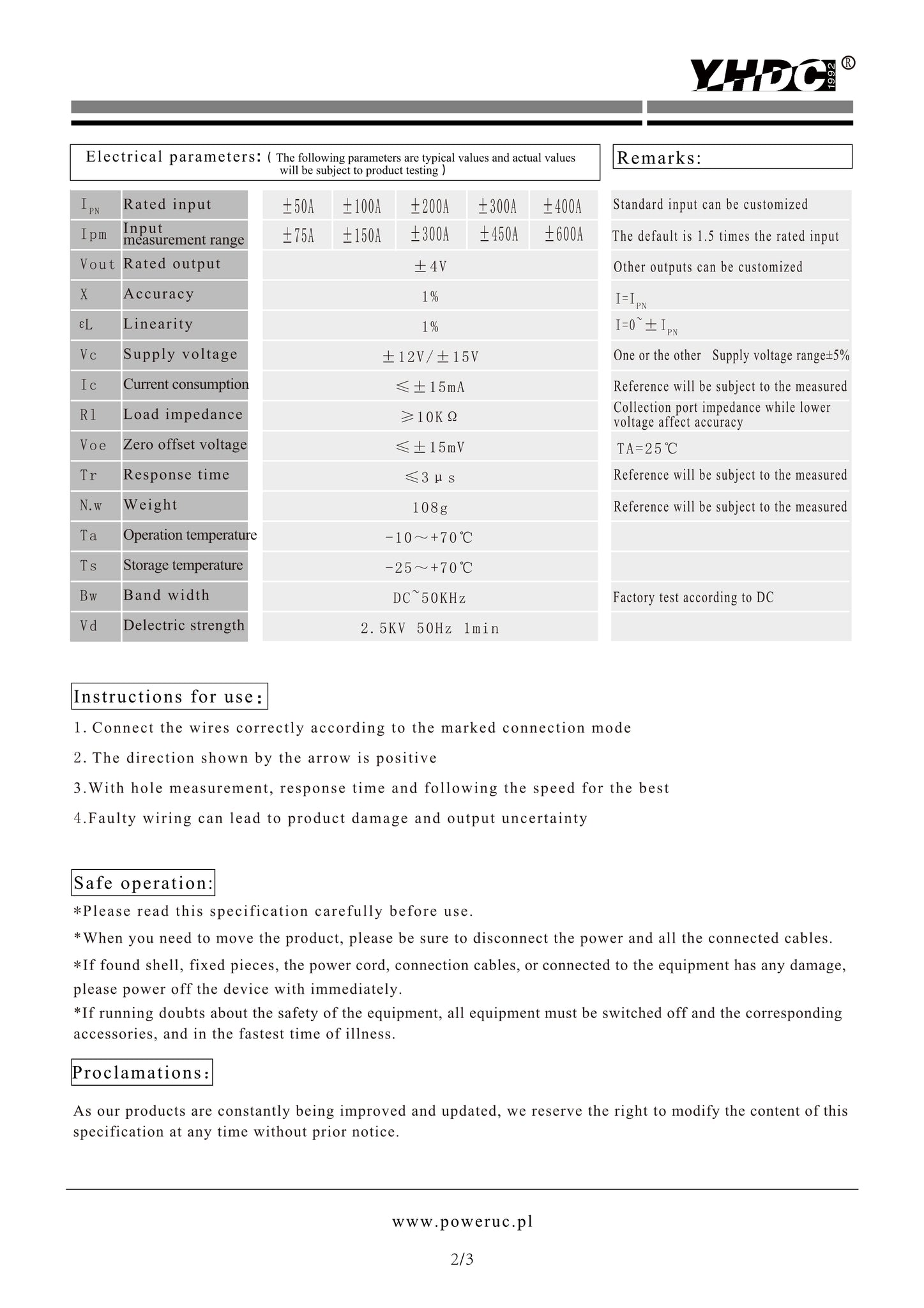

Electrical parameters:

DOWNLOAD
