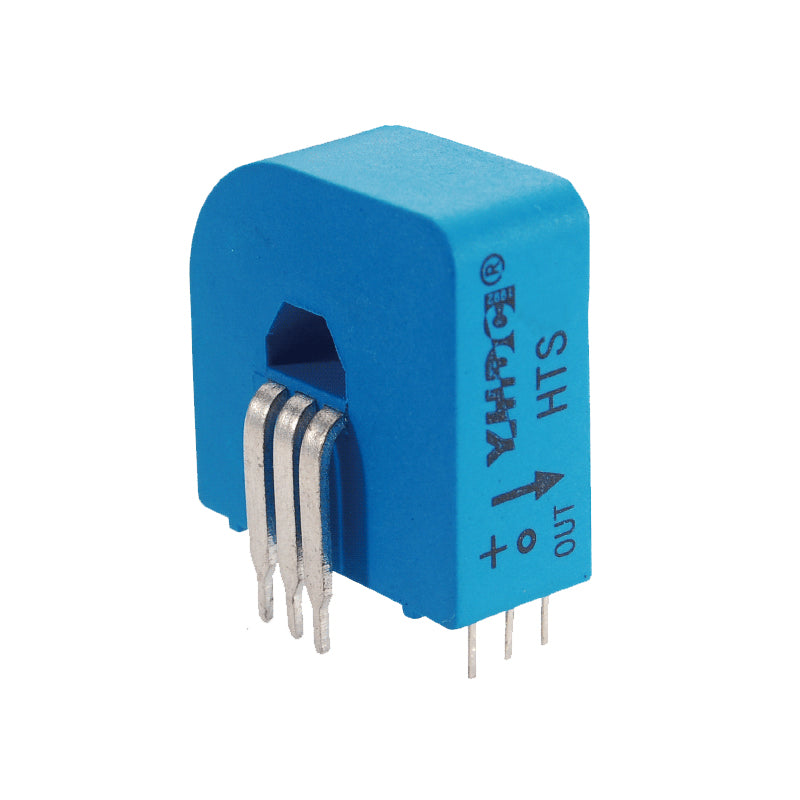

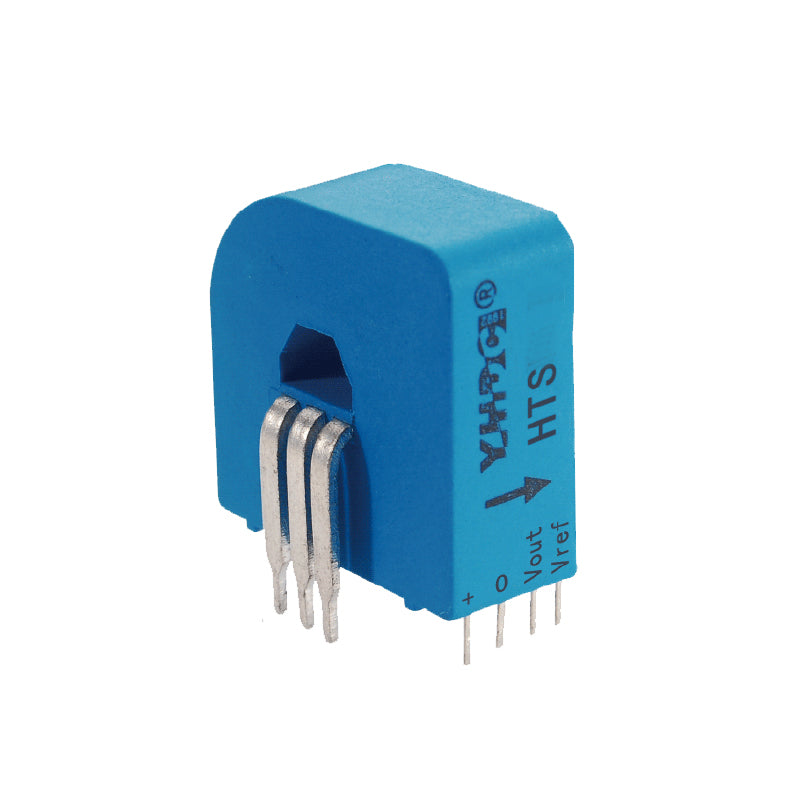

Closed loop multi-range current sensor HTS6 Rated input ±6A Rated output 2.5V±0.625V/1.65V±0.625V Rated supply voltage +5V/+3.3V (with Vref and without Vref)

PowerUC

  • €10,28
    Unit price per
Shipping calculated at checkout.

Only 50 left!

Model:HTS6

Detect DC,AC and puls e current, high insulation between primary side and the vice side circuit. Change the connection mode of primary bus-bar can be converted into three measuring range.

Technical index:

Flame resistance:UL94-V0

Operating temperature:-25~+70℃

Storage temperature:-25~+70℃

Bandwidth:DC~150kHz

Dielectric strength:3KV 50Hz 1min

Electric parameters:

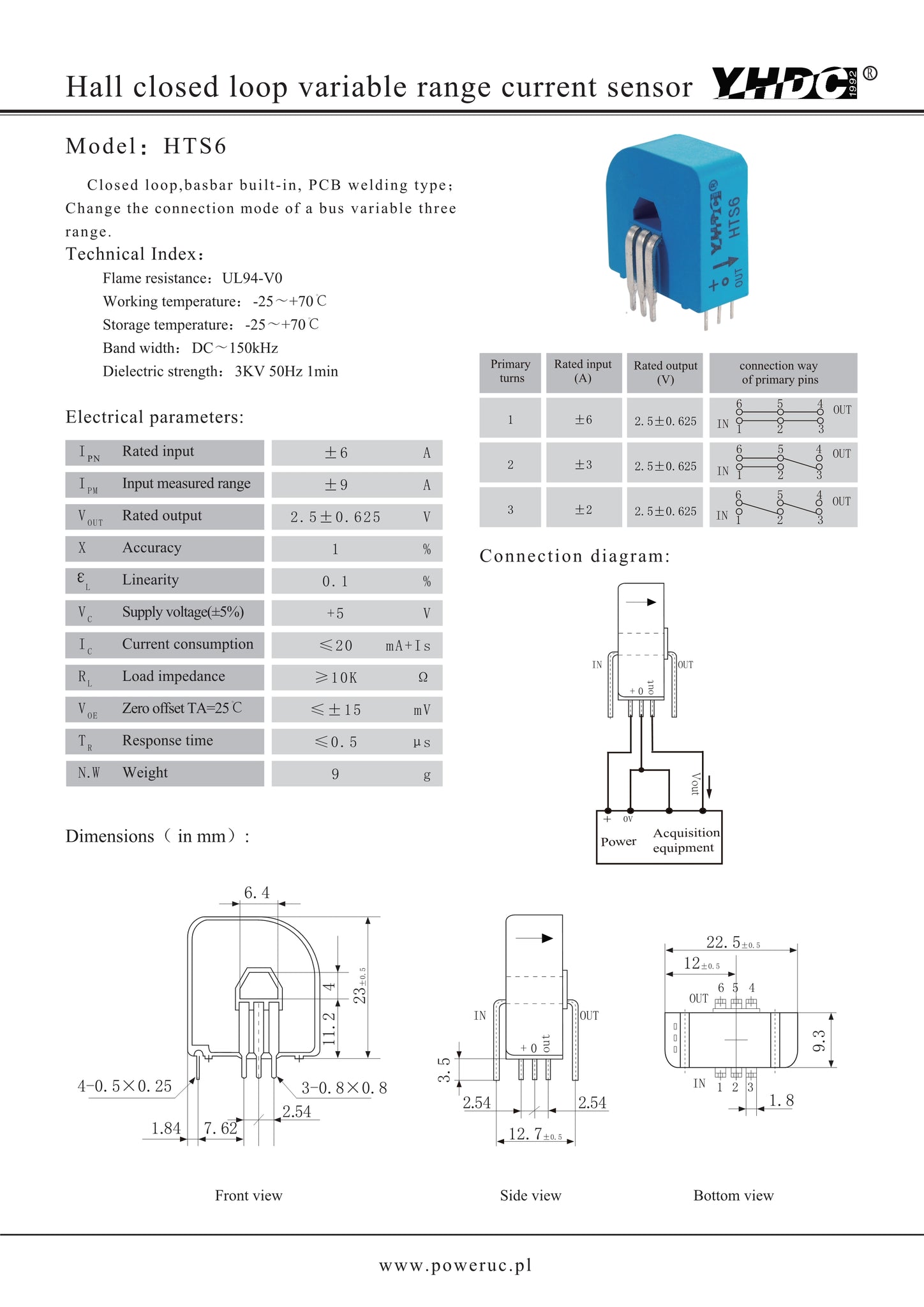

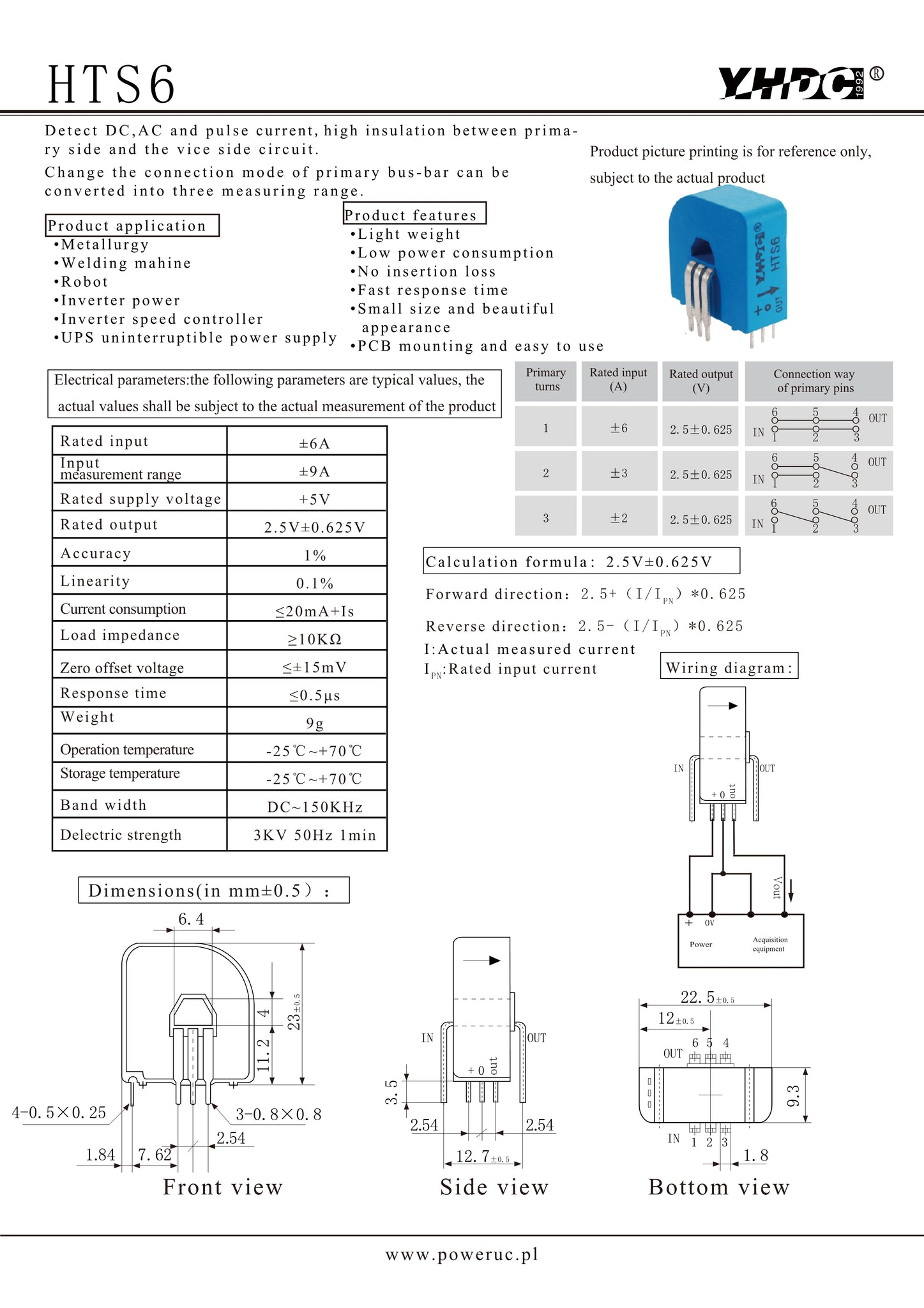

DOWNLOAD-HTS6 ±6A 2.5V±0.625V +5V(with Verf)

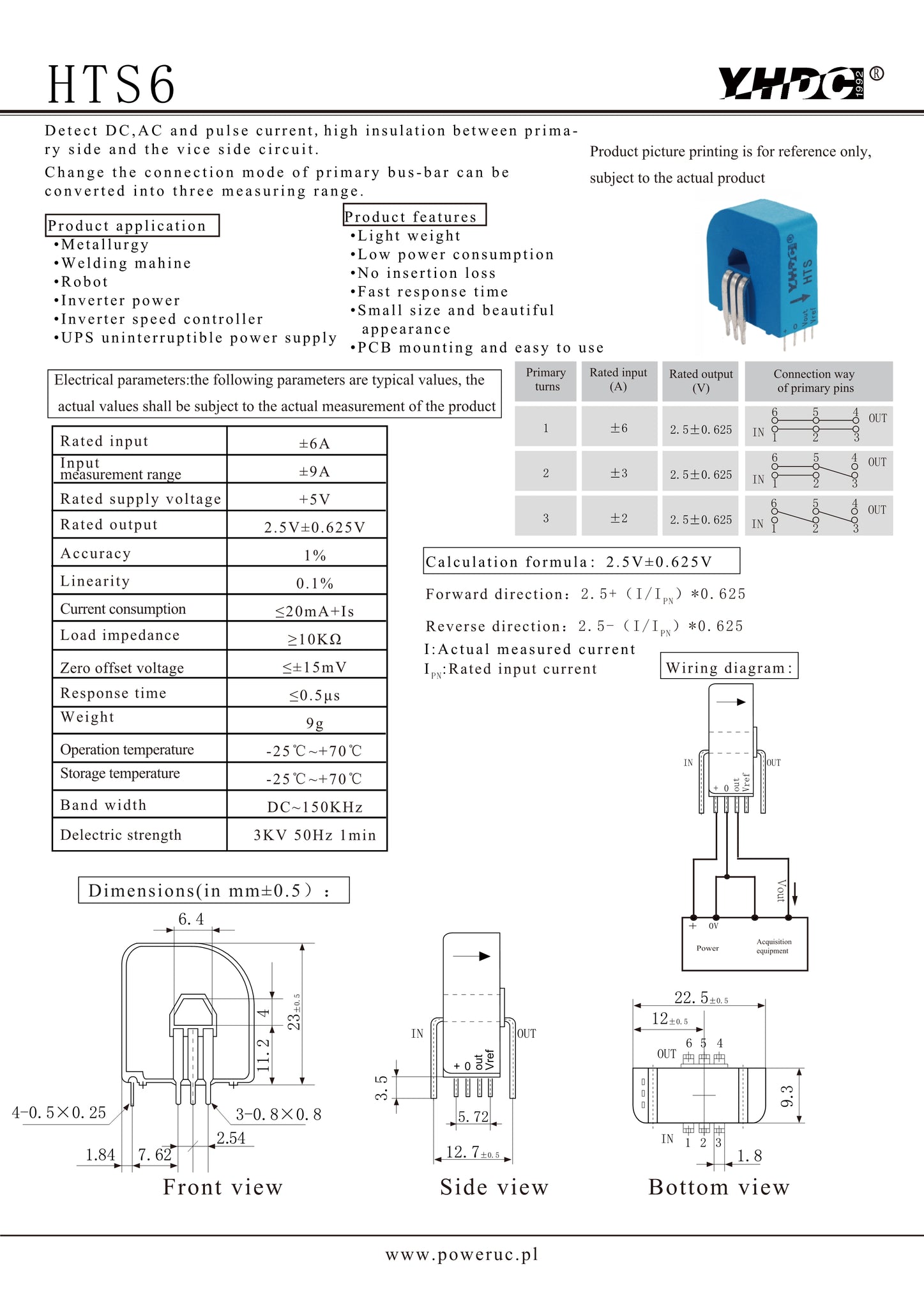

DOWNLOAD-HTS6 ±6A 2.5V±0.625V +5V(without Verf)

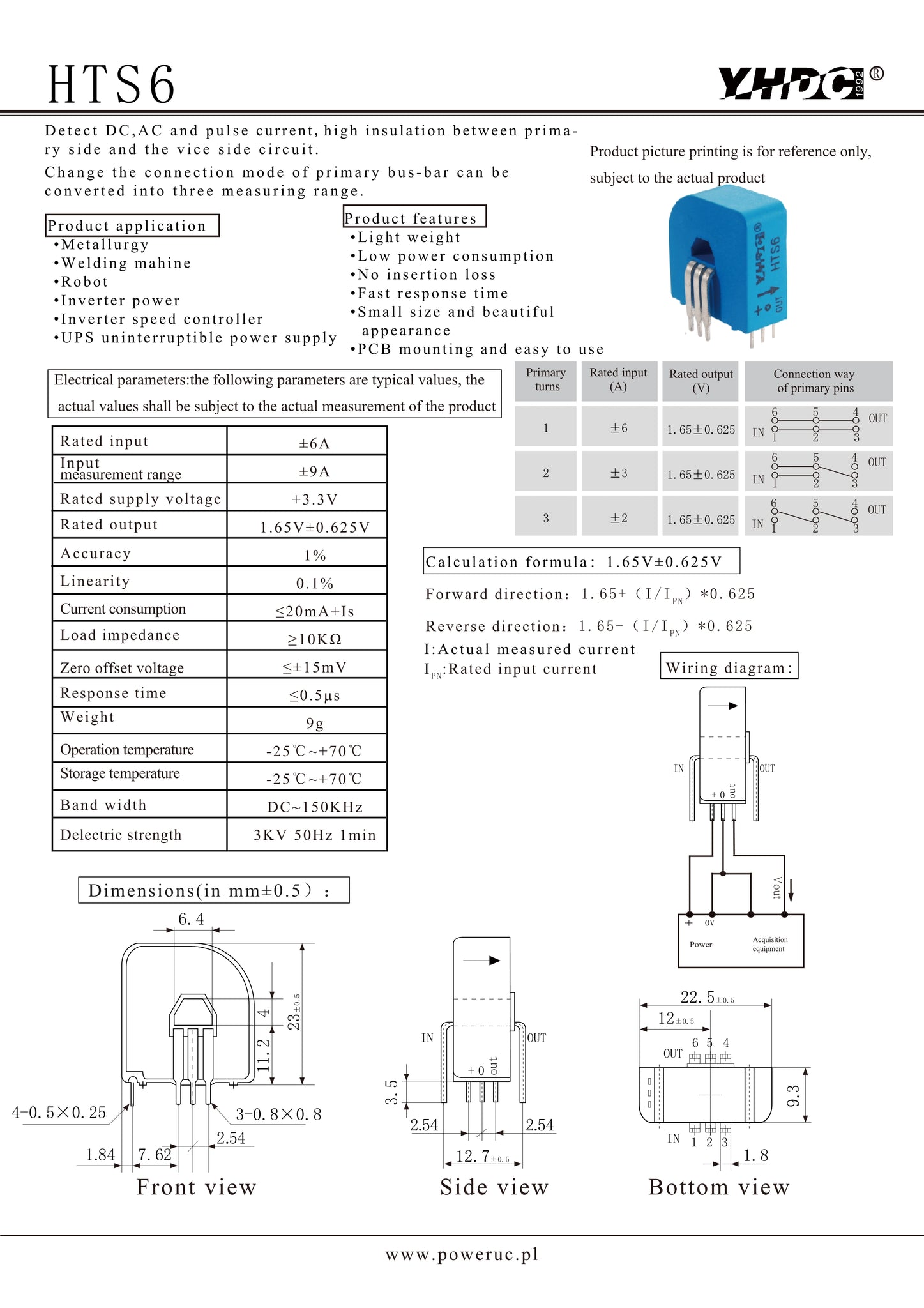

DOWNLOAD-HTS6 ±6A 1.65V±0.625V +3.3V(with Verf)

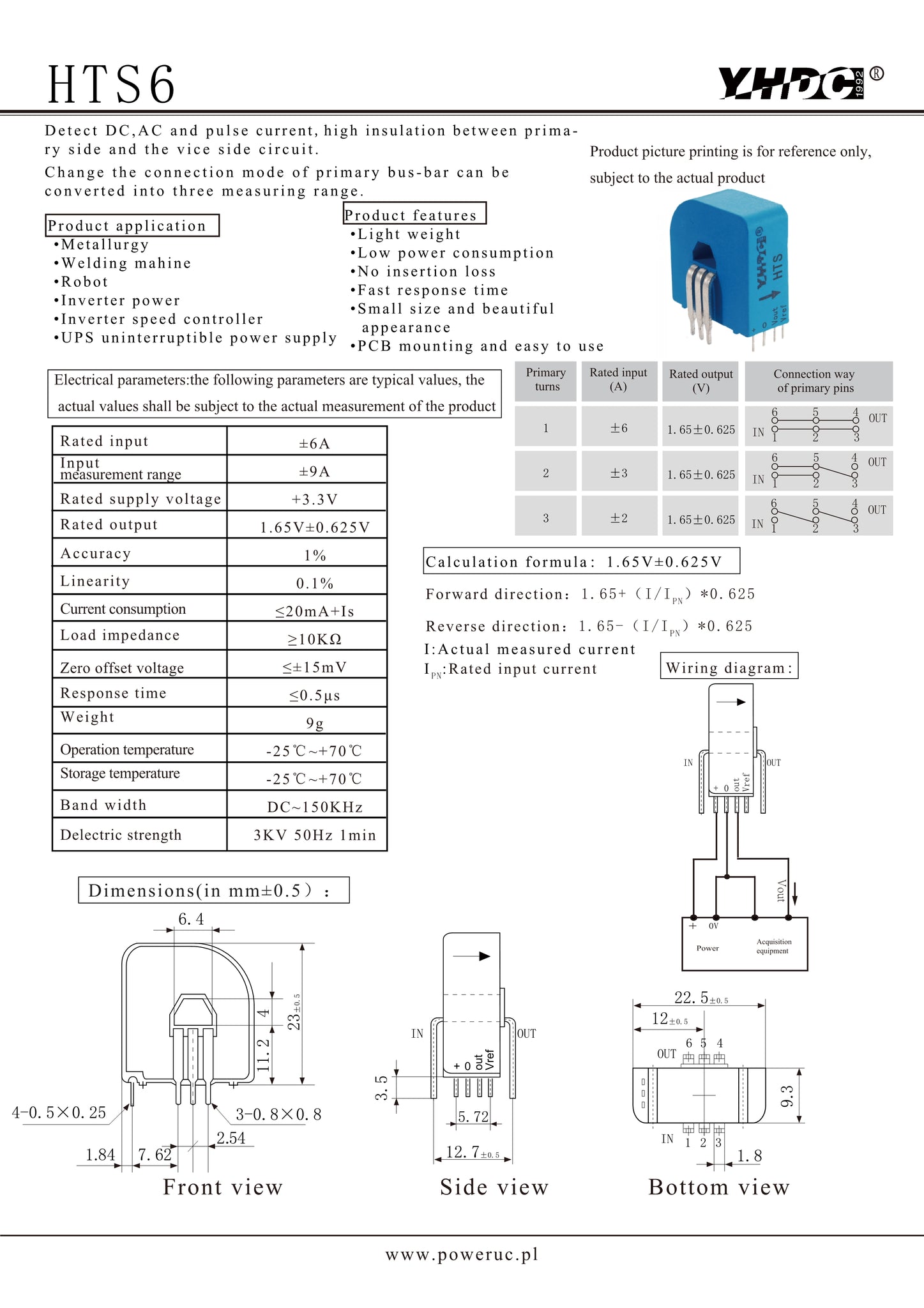

DOWNLOAD-HTS6 ±6A 1.65V±0.625V +3.3V(without Verf)
