Hall closed loop current sensor HA55 Rated input ±50A/±100A Rated output ±50mA - PowerUC

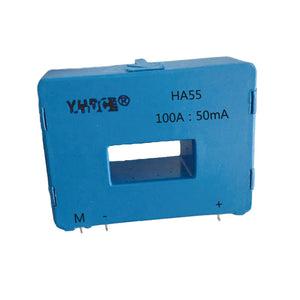

Closed loop current sensor HA55 Rated input ±50A/±100A Rated output ±50mA

PowerUC

Shipping calculated at checkout.
Only 100 left!

Model：HA55

Closed loop,PCB mounting type; Detect DC,AC and pulse current.

Technical data:

Flame resistance: UL94-V0

Operating temperature: -25～+70℃

Storage temperature: -25～+70℃

Bandwidth: DC～100kHz

Dielectric strength: 2.5KV 50Hz 1min

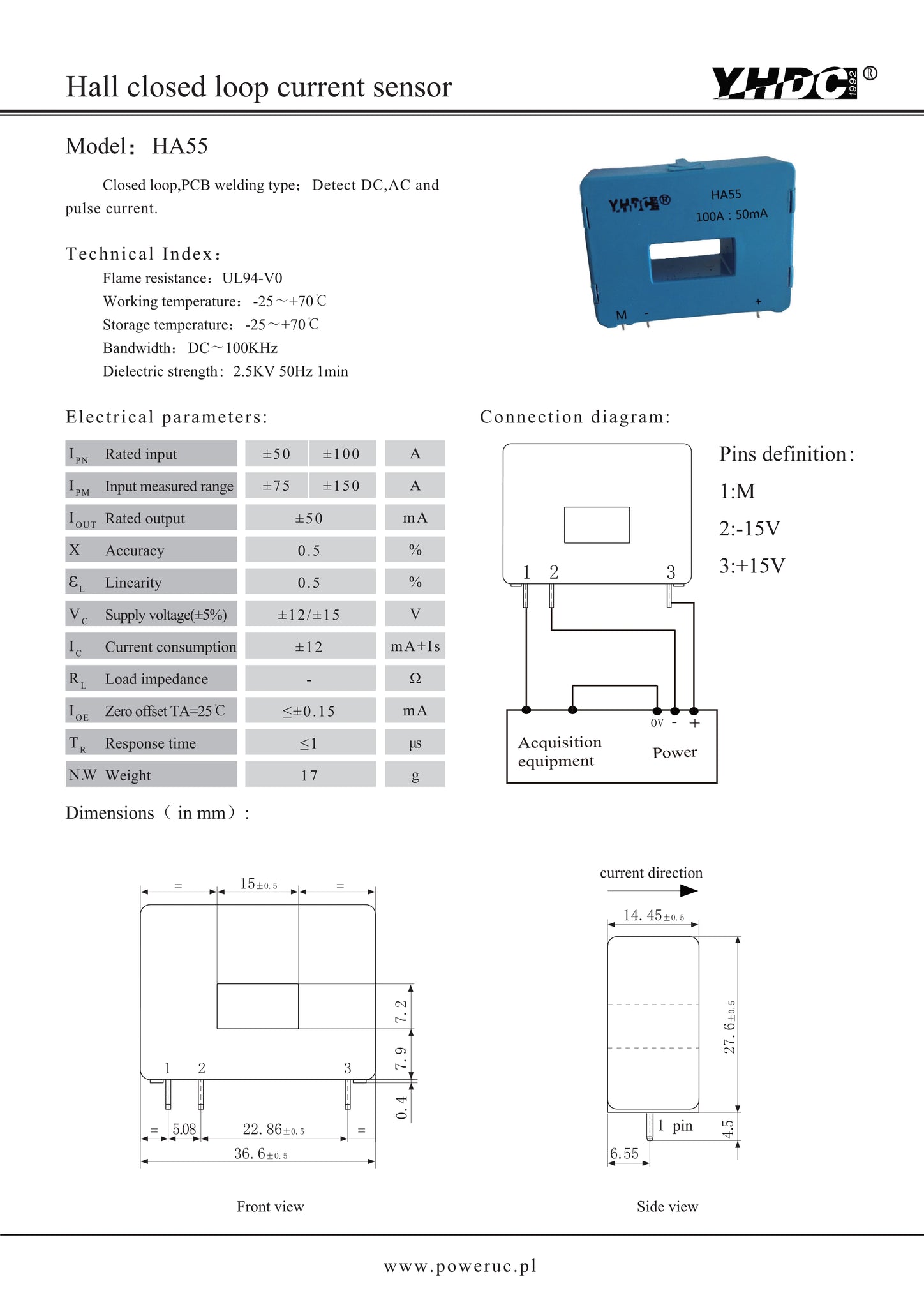

Specification:



DOWNLOAD
