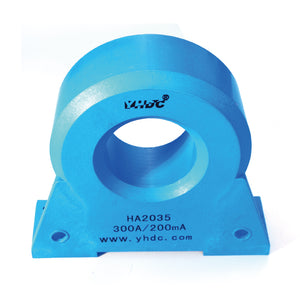

Closed loop current sensor HA2035 Rated input ±200A ±300A ±500A Rated output ±100mA ±150mA
Model:HA2035
Epoxy potting plug terminal, leading wire or PCB mounting type .AC/DC motor, current and voltage detection, battery powered, charging current detection, welding machine, inverter, automatic elevator, crane, papermaking,printing presses, injection molding machine, elevator Mechanical and electrical equipment such as AC/DC current/voltage detection
Technical index:
Flame resistance:UL94-V0
Operating temperature:-25~+70℃
Storage temperature:-25~+70℃
Bandwidth:DC~100kHz
Dielectric strength:6KV 50Hz 1min

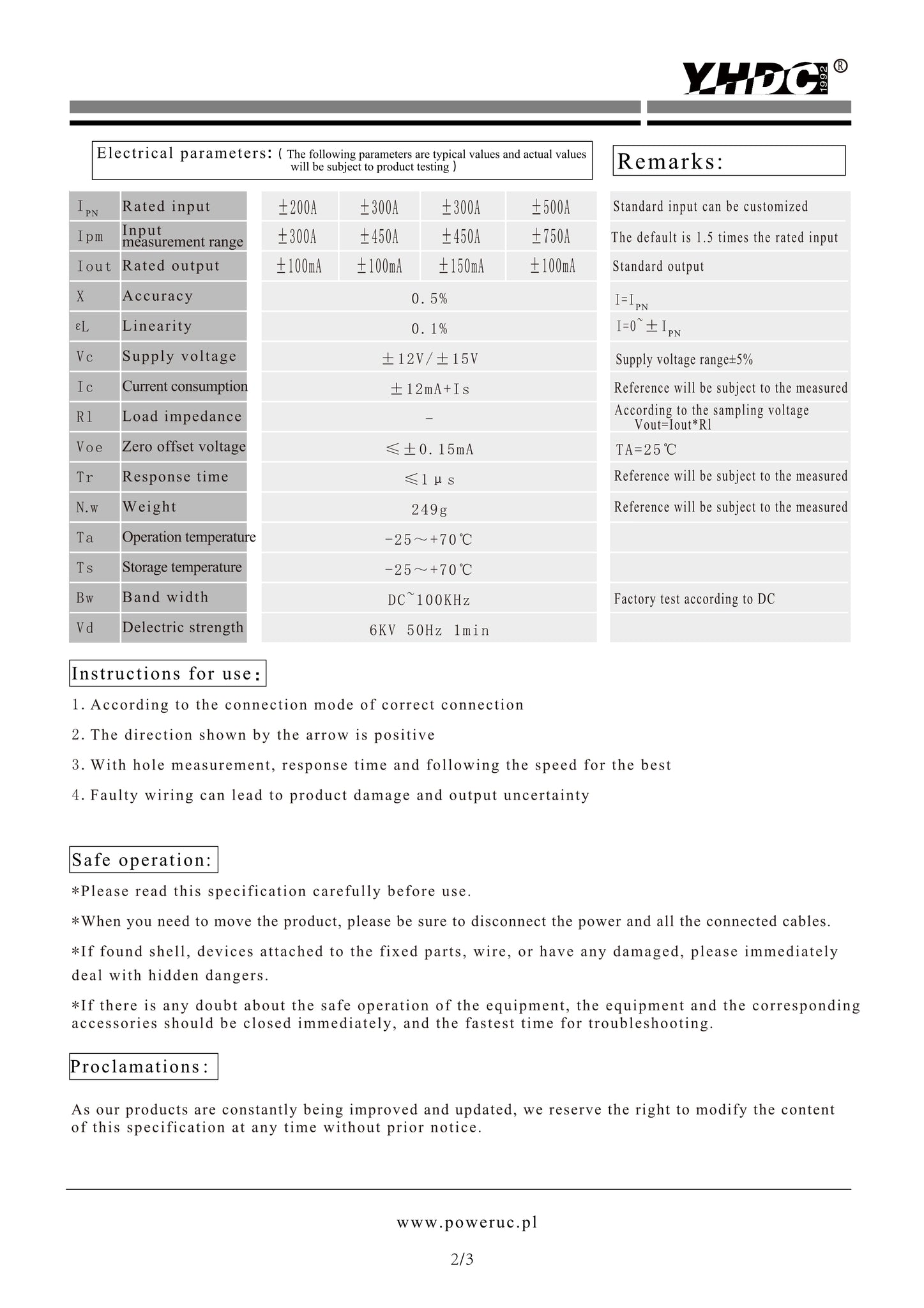

Electric parameters:
DOWNLOAD
