Hall closed loop current sensor HA2009 Rated input ±20A ±50A ±100A Rated output ±25mA ±33.3mA ±50mA - PowerUC

Hall closed loop current sensor HA2009 Rated input ±20A ±50A ±100A Rated output ±25mA ±33.3mA ±50mA

PowerUC

Shipping calculated at checkout.
Only 5 left!

Model：HA2009

Epoxy potting plug terminal, leading wire or PCB mounting type.AC/DC motor, current and voltage detection, battery powered, charging current detection, welding machine, inverter, automatic elevator, crane, papermaking,printing presses, injection molding machine, elevator Mechanical and electrical equipment such as AC/DC current/voltage detection

Technical index:

Flame resistance：UL94-V0

Operating temperature：-25～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～150kHz

Dielectric strength：3.5KV 50Hz 1min

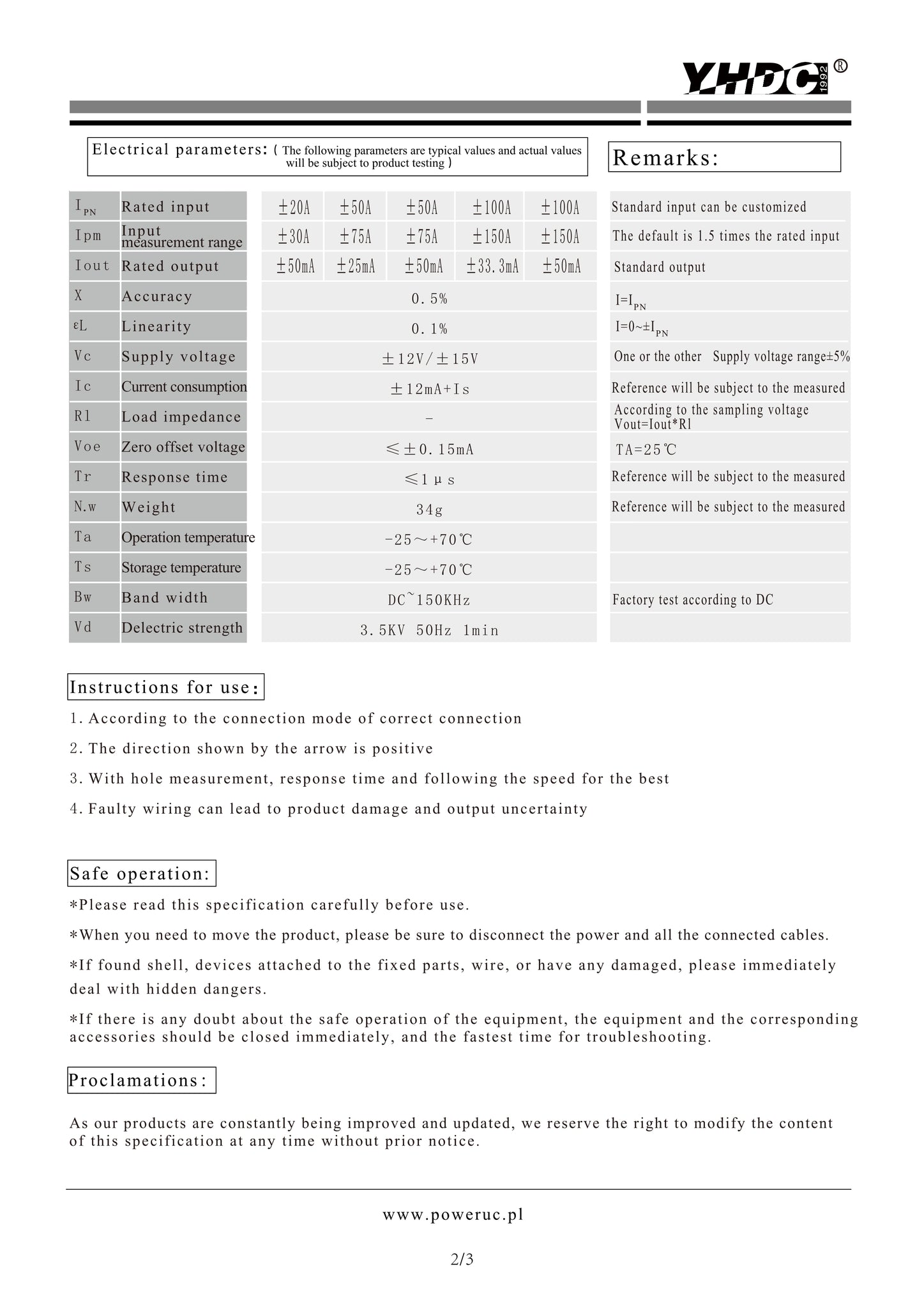

Electric parameters:

DOWNLOAD
