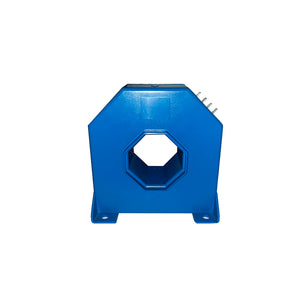

Closed loop current sensor HA5061 Rated input ±2000A Rated output ±500mA
Model:HA5061
Product characteristics:
Plug-in terminal output, plate installation, wrong wiring will cause product damage,measure the DC and AC pulse current, output in a linear relationship with the primary detection current,the output signal can directly enter the automatic control equipment or PLC port.
Technical index:
Flame resistance:UL94-V0
Working temperature:-10℃~+70℃
Storage temperature:-25℃~+70℃
Dielectric strength:6KV 50Hz 1min
Electrical parameters:The following parameters are typical values. The actual values shall be subject to the actual measurement of the product
