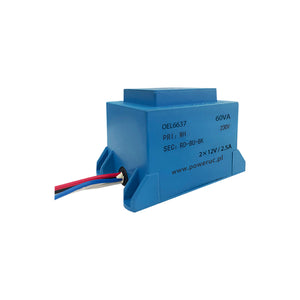

Waterproof transformer OEL6637 Power 60VA Primary voltage 110V/220V/230V/380V Secondary output voltage 6V/7.5V/9V/12V/15V/18V/24V 6V×2/7.5V×2/9V×2/12V×2/15V×2/18V×2/24V×2
OEL6637
Characteristics:
1. Vacuum epoxy resin encapsulated,100℃ /6 hours high temperature aging, long woking life 20 years and with high delectric strength
2. High quality H18 silicon steel sheet, low temperature rise, high efficiency
3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation
4. Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof
Technical index:
Mounting type：Sub-plate mount
Flame resistance ：UL94-V0
Insulation class：B
Waterproof grade: IP67
Operation temperature：-30℃～+40℃
Work frequency：50Hz～60Hz
Dielectric strength：Pri./Sec. 3.75KV 50Hz 1min 5mA,Sec/Sec 500V 50Hz 1min 5mA
Electrical parameters:（The following parameters are typical values and actual values will be subject to product testing）
