Waterproof transformer OE6028 Power 40VA  Primary voltage 110V/220V/230V/380V Secondary output  voltage 6V/7.5V/9V/12V/15V/18V/24V

Waterproof transformer OE6028 Power 40VA Primary voltage 110V/220V/230V/380V Secondary output voltage 6V/7.5V/9V/12V/15V/18V/24V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

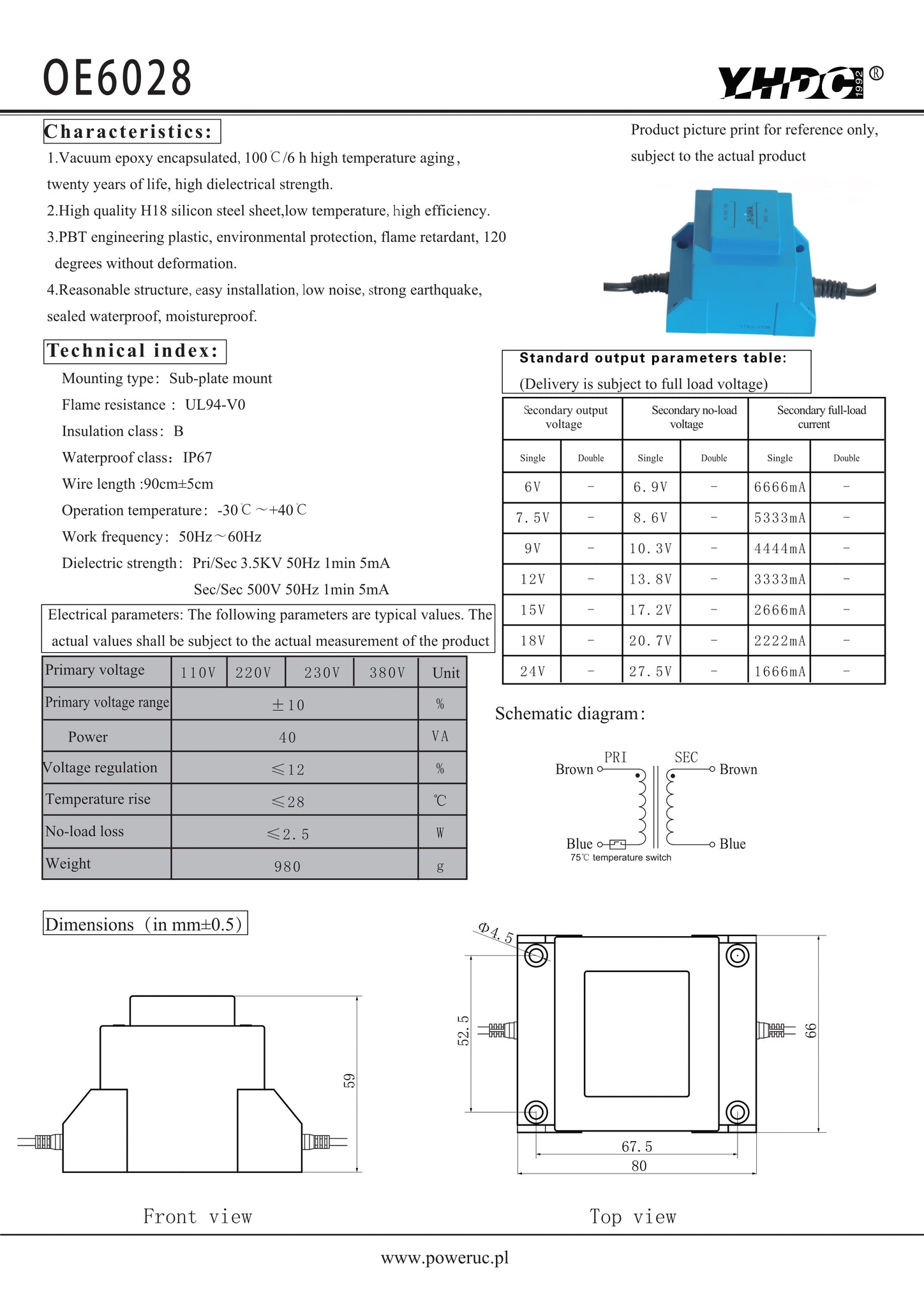

Model:OE6028

Characteristics:

1.Vacuum epoxy encapsulated, 100℃/6 h high temperature aging, twenty years of life, high dielectrical strength.

2.High quality H18 silicon steel sheet,low temperature, high efficiency.

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation.

4.Reasonable structure, easy installation, low noise, strong earthquake, sealed waterproof, moistureproof.

Technical Index:

Mounting type:Sub-plate mount

Flame resistance :UL94-V0

Insulation class:B

Waterproof class:IP67

Wire length :90cm±5cm

Operation temperature:-30℃~+40℃

Work frequency:50Hz~60Hz

Dielectric strength:Pri/Sec 3.5KV 50Hz 1min 5mA

                                 Sec/Sec 500V 50Hz 1min 5mA

Electrical parameters:

The following parameters are typical values. The actual values shall be subject to the actual measurement of the product.

DOWNLOAD
