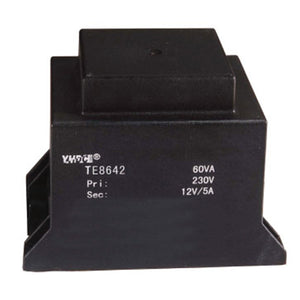

TE series isolation transformer TE8642 110V/220V/230V 120VA - PowerUC

TE series isolation transformer TE8642 110V/220V/230V/380V 120VA


  • €25,50
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after



1.Vacuum epoxy potting,100℃/6 h high temperature aging, Twenty years of life,High electrical strength

2.High quality H18 silicon steel sheet,Low temperature,High efficiency

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation

4.Reasonable structure,Easy installation,Low noise,Strong earthquake sealed waterproof, moistureproof

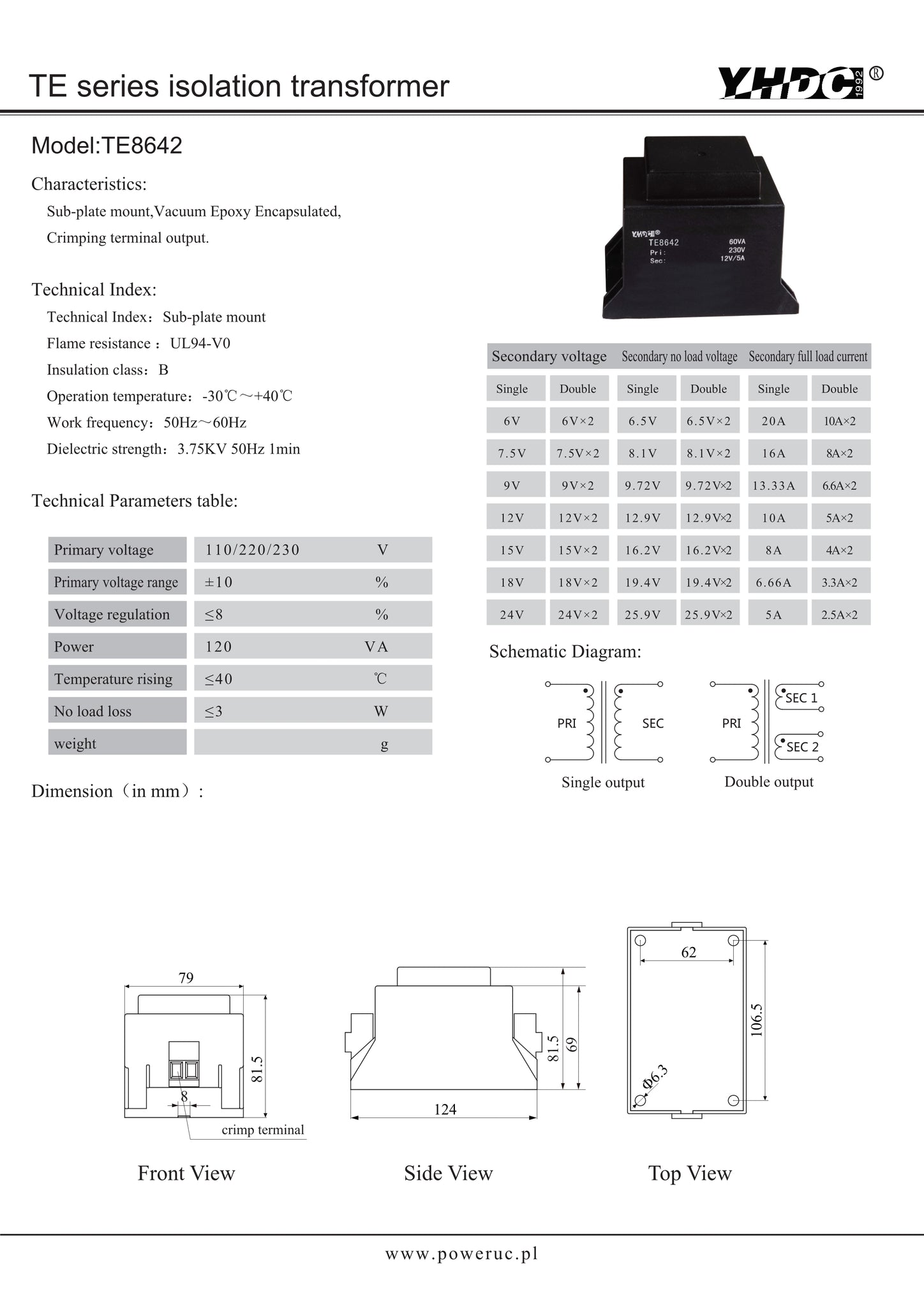

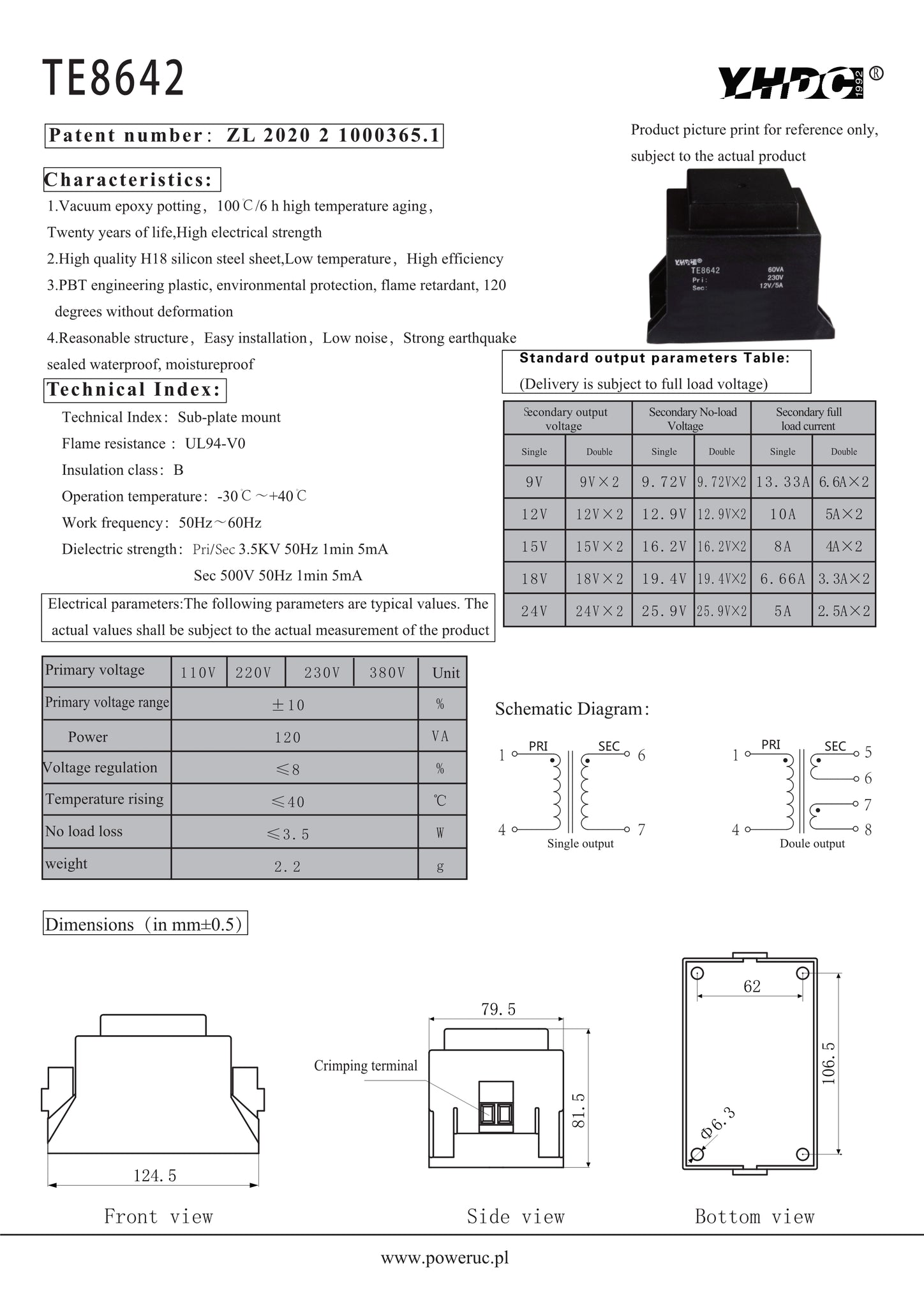

Technical Index:

Technical Index:Sub-plate mount

Flame resistance :UL94-V0

Insulation class:B

Operation temperature:-30℃~+40℃

Work frequency:50Hz~60Hz

Dielectric strength:Pri/Sec 3.5KV 50Hz 1min 5mA

Sec 500V 50Hz 1min 5mA

Technical Parameter:
