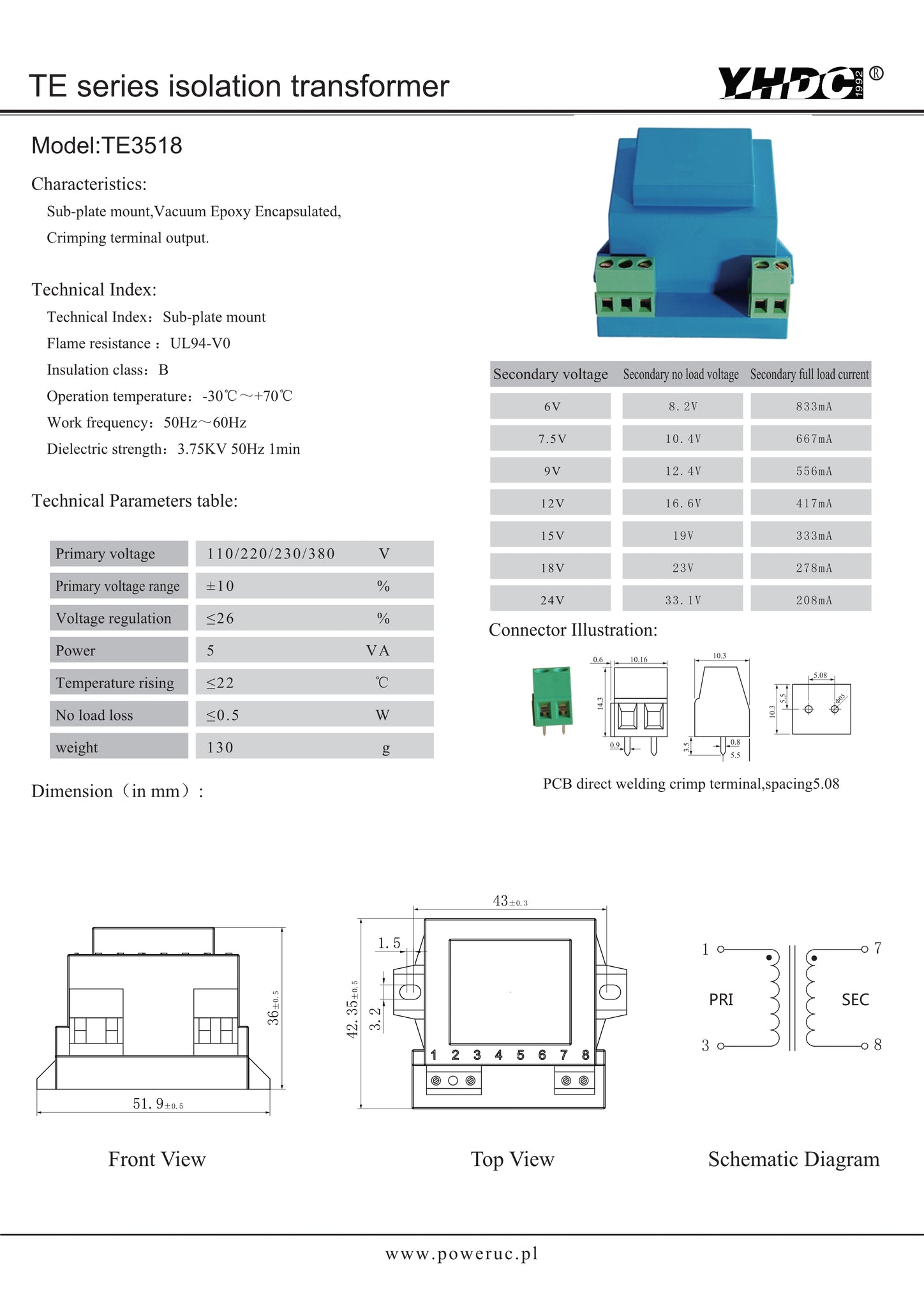

Model:TE3518

Characteristics:

1.Vacuum epoxy potting，100℃/6 h high temperature aging， Twenty years of life,High electrical strength

2.High quality H18 silicon steel sheet,Low temperature，High efficiency

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation

4.Reasonable structure，Easy installation，Low noise，Strong earthquake sealed waterproof, moistureproof

Technical Index:
Mounting type: Sub-plate mount
Flame resistance: UL94-V0
Insulation class: B
Operation temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min
