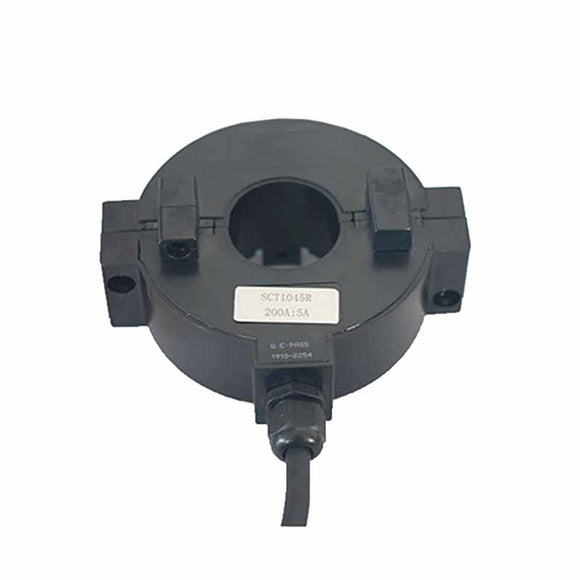

Split core waterproof current transformer SCTI045R rated input 200A 300A 400A 500A 600A rated output 5A

PowerUC

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Characteristic:

Split core structure, easy installation, cable output.

Outdoor use, good waterproof performance (IP67).

Technical Indicators:

Mounting type: Free hanging (In-Line)

Material of core: Laminated silicon steel

Flame resistance: UL94-VO

Applicable standards: GB20840-2014

Operating temperature: -20℃ ~ +60℃

Storage temperature: -30 ° C to +90 ° C

Frequency range: 50HZ-60Hz

Electrical resistance: 3.5kV 50Hz 1min

Weight: 1.2 Kg

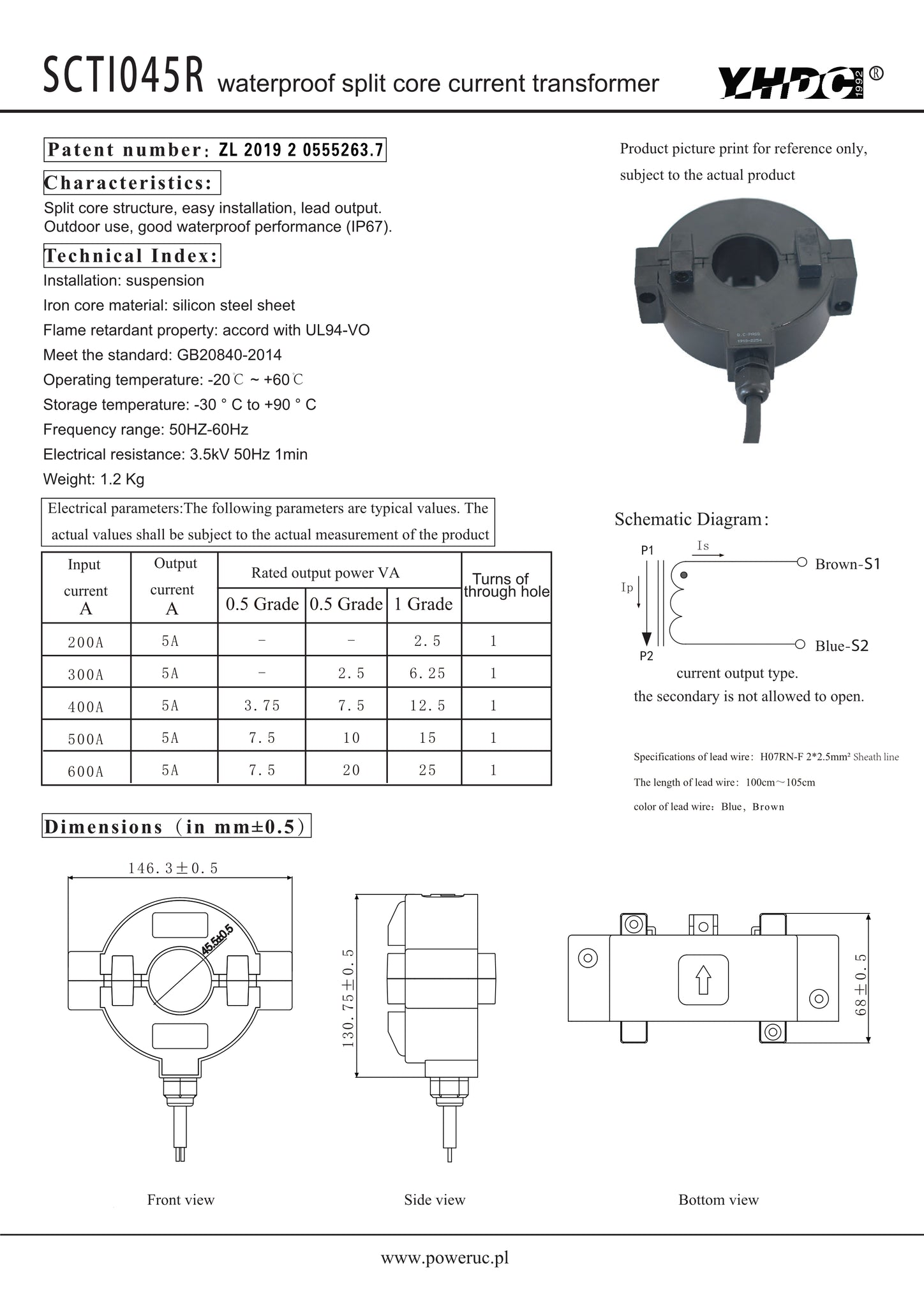

Electric Parameter:

DOWNLOAD
