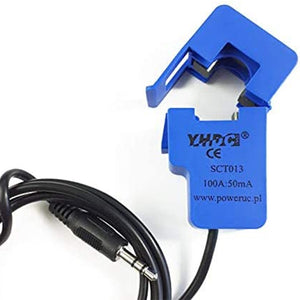

Split core current transformer SCT013 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA / 1V / 0.333V - PowerUC

Split core current transformer SCT013 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA / 1V / 0.333V

PowerUC

Shipping calculated at checkout.
Only 3159 left!

Model：SCT013

The opening size is 13mm*13mm, the lead wire is 1 meter, the standard Φ3.5 three-core plug output, the current and voltage two kinds of output. (Patent No. ZL 2015 3 0060067.X)

Technical features:

Hanging installation, lead output

Standard: GB1208-2006

Working temperature: -25℃～+60℃

Storage temperature: -30℃～+90℃

Working voltage: ≤720V

Frequency range: 50Hz-1KHz

Dielectric strength: 3.5KV 50Hz 1min

Specification:
