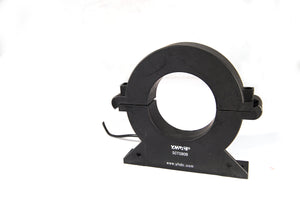

Split core current transformer SCT080B rated input 500A/800A/1000A/1500A/2000A rated output 0.333V - PowerUC

Split core current transformer SCT080B rated input 100A 500A 600A 800A 1000A 1200A 1500A 2000A rated output 1A/5A/0.333V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristic:

Split core ,1A/5A/0.333V output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor

Technical Indicators:

Plate mounting :output with cable

Material of core: Silicon steel sheet

Fire resistance property: UL94-V0

Work voltage: ≤720V

Work temperature: -20°C ~ +60°C

Storage temperature: -25°C ~ +65°C

Frequency range: 50Hz ~ 60KHz

Dielectric strength: 3.5KV 50Hz 1min

Weight: 778g

Electric Parameter:
