Split core current transformer SCT065R rated input 300A 400A 500A 600A 700A 800A rated output 50mA/0.1A/1A/5A
Characteristic:

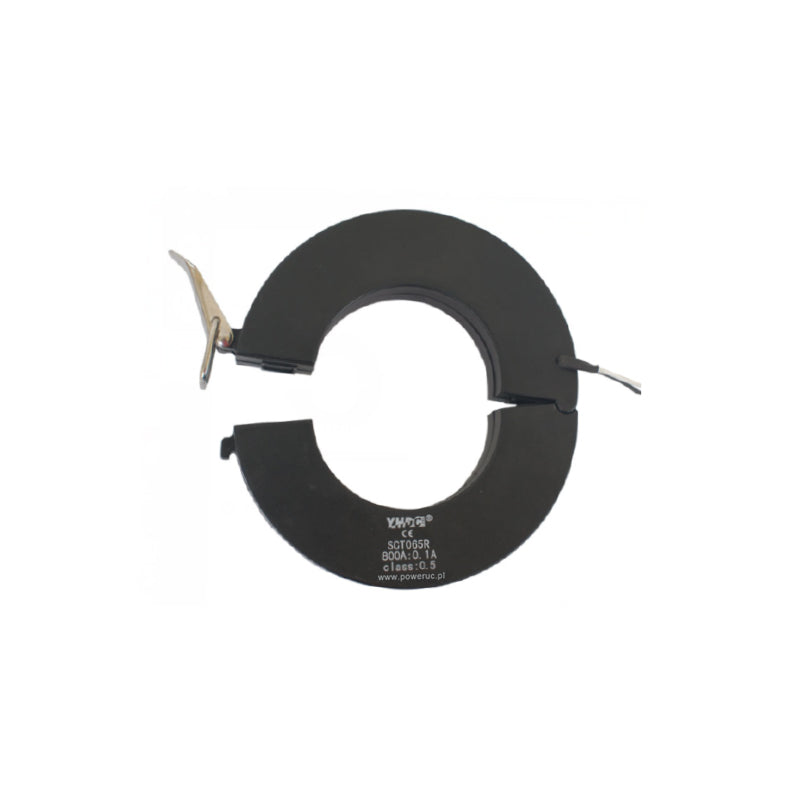

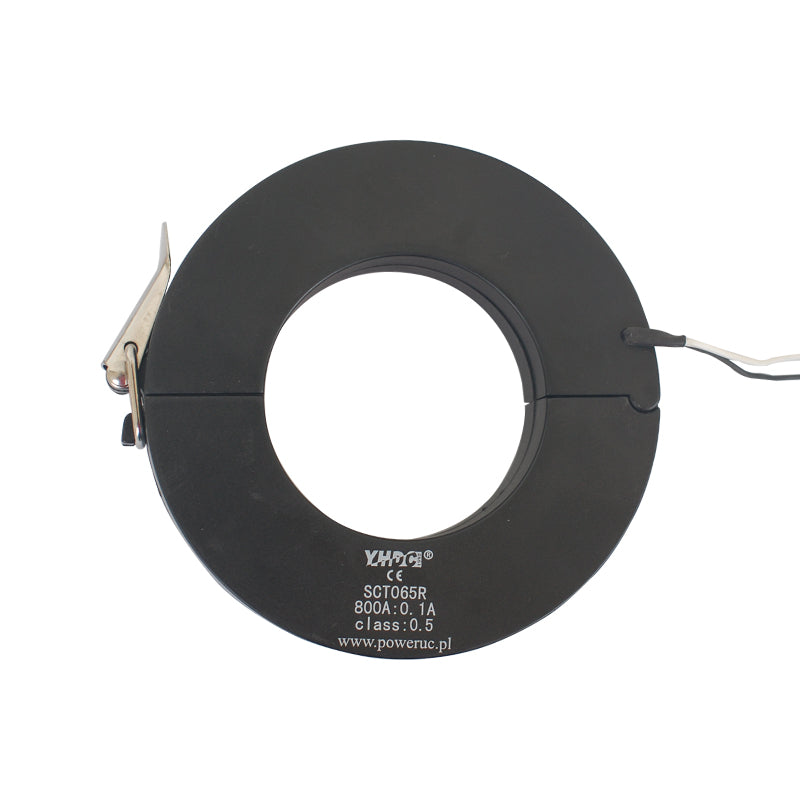

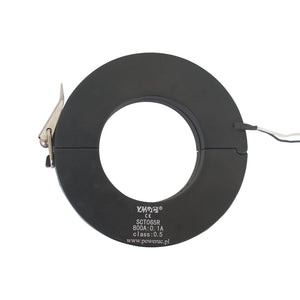

Ф65mm Aperture Split core current transformer
Technical Indicators:
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: ≤720V
Work temperature: -30°C ~ +65°C
Storage temperature: -40°C ~ +85°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: Input（bare conductor）/output AC 800V/1min 5mA 50Hz
Output/Outer shell AC 3.5KV/1min 5mA 50Hz)
Electric Parameter:
