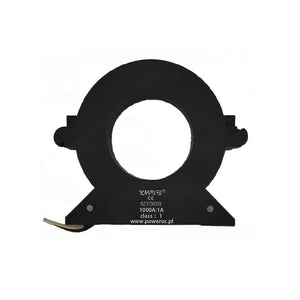

Split core current transformer SCT065B rated input 300A/500A/800A/1000A/1500A rated output 0.333V - PowerUC

Split core current transformer SCT065B rated input 100A 250A 300A 400A 500A 600A 800A 1000A 1500A rated output 1A/5A/0.333V

PowerUC

Shipping calculated at checkout.
Only 2 left!

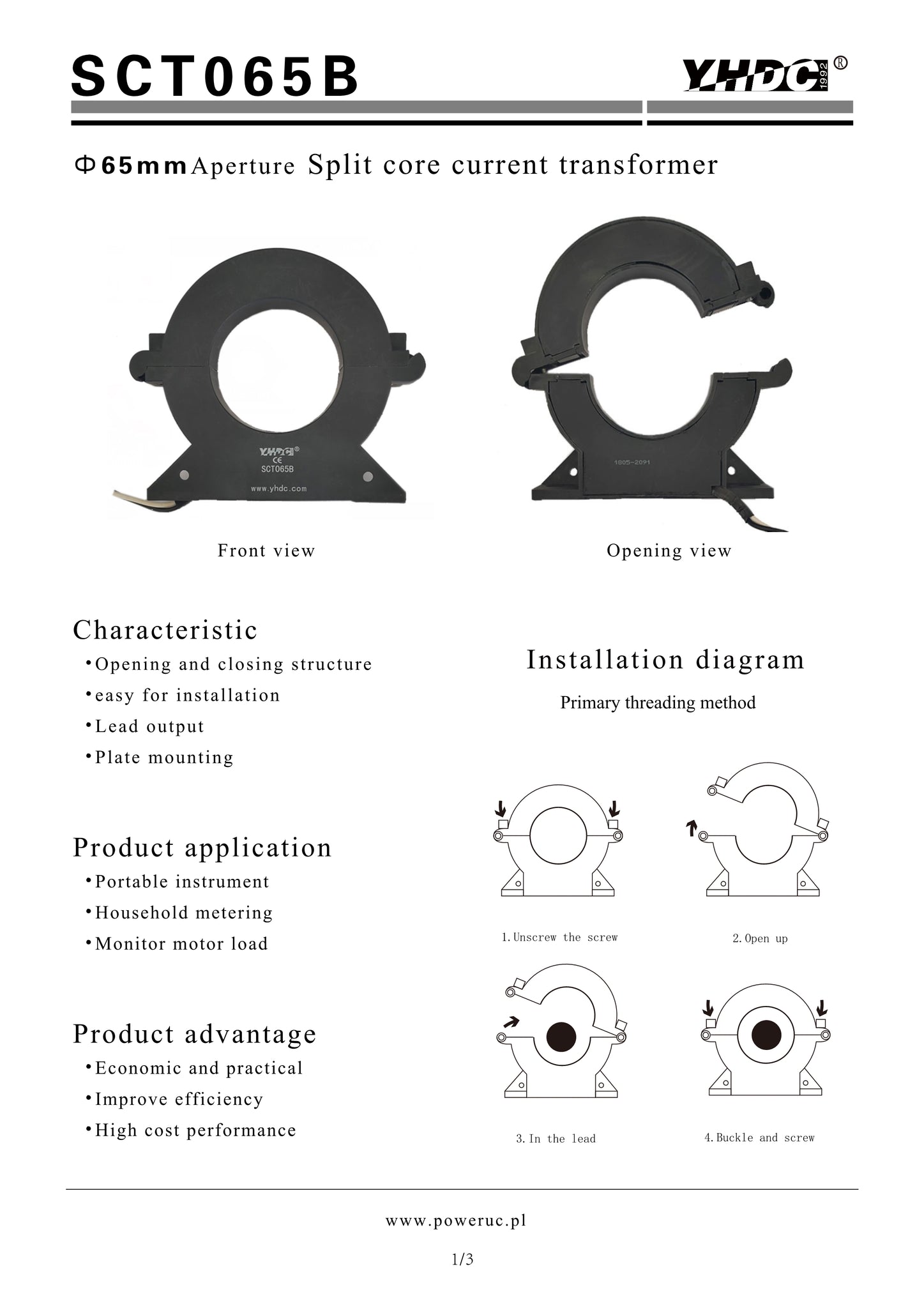

Characteristic:

Split core , 1A/5A/0.333V output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor

Technical Indicators:

Plate mounting :output with cable

Material of core: Silicon steel sheet

Fire resistance property: UL94-V0

Work voltage: ≤720V

Work temperature: -20°C ~ +60°C

Storage temperature: -25°C ~ +65°C

Frequency range: 50Hz ~ 60KHz

Dielectric strength: 3.5KV 50Hz 1min

Weight: 550g

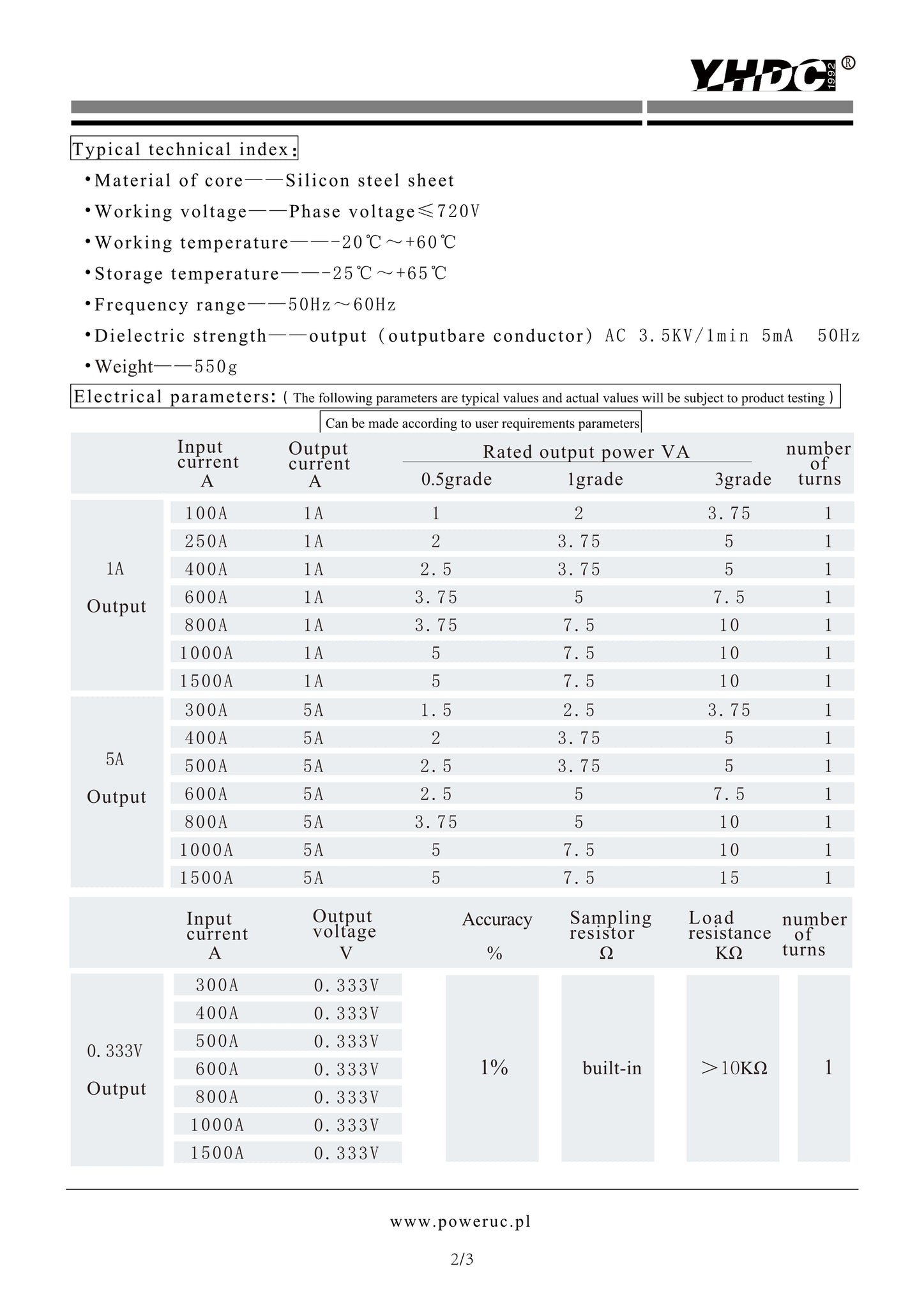

Electric Parameter:

DOWNLOAD
