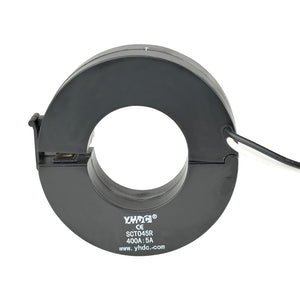

Split core current transformer SCT045R rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V
Characteristic:
Split core structure, Suspended installation, Round window shape: round, diameter: 45mm. Secondary leading wire output
Technical Indicators:
Material of core: Laminated silicon steel
Fire resistance property: UL94-V0
Work voltage: ≤720V
Work temperature: -30°C ~ +65°C
Storage temperature: -40°C ~ +85°C
Frequency range: 50Hz ~ 60Hz
Waterproof grade— —IP00
Dielectric strength: AC 3.5KV/1min
Electric Parameter:
