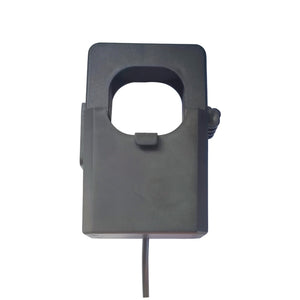

Split Core Current Transformer SCT036SL rated input 100A 200A 300A 400A 500A 600A rated output 50mA 100mA 0.333V 1V 3V 5V
Model:SCT036SL
Characteristics:

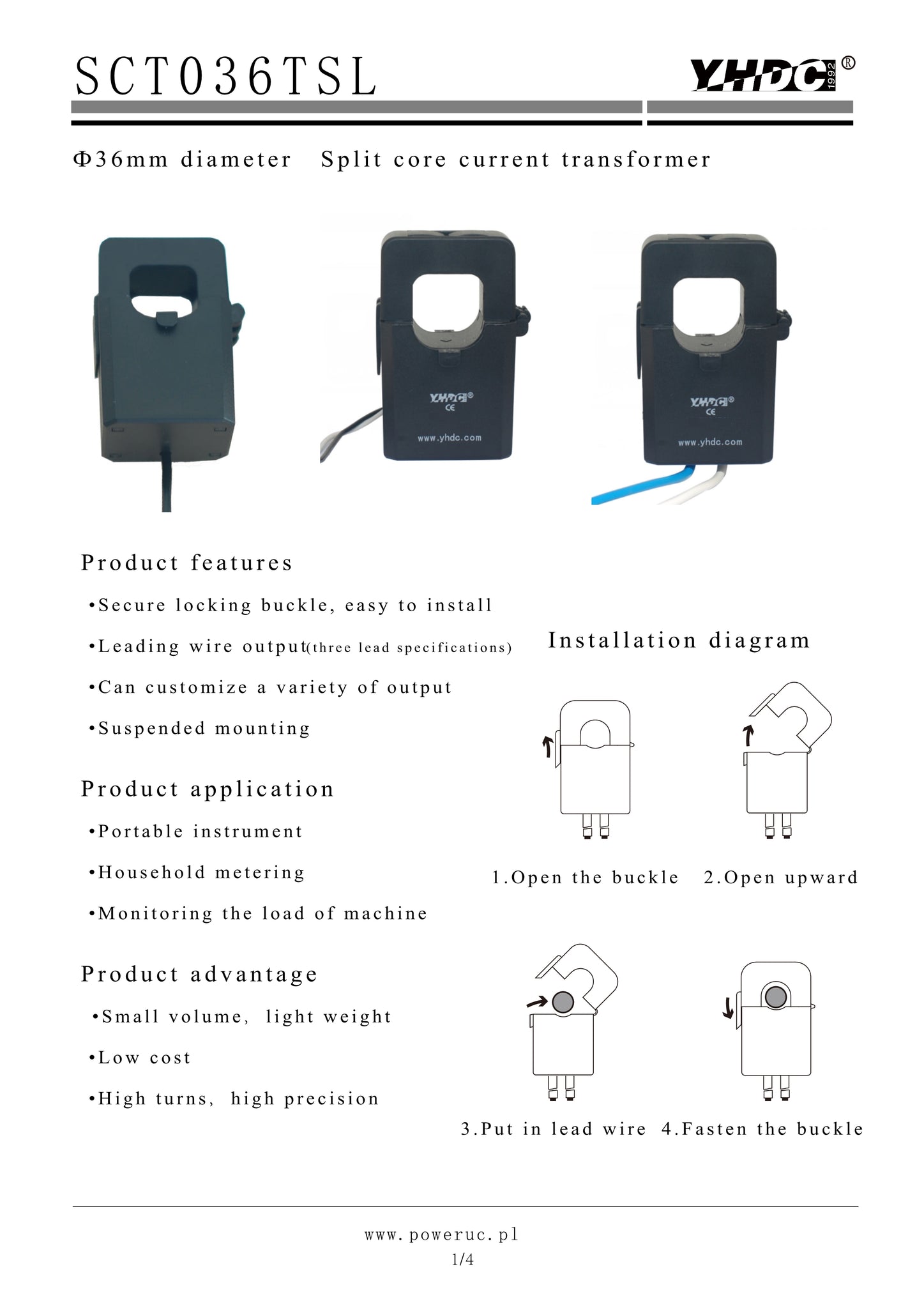

Safety lock buckle, easy installation,cable output.

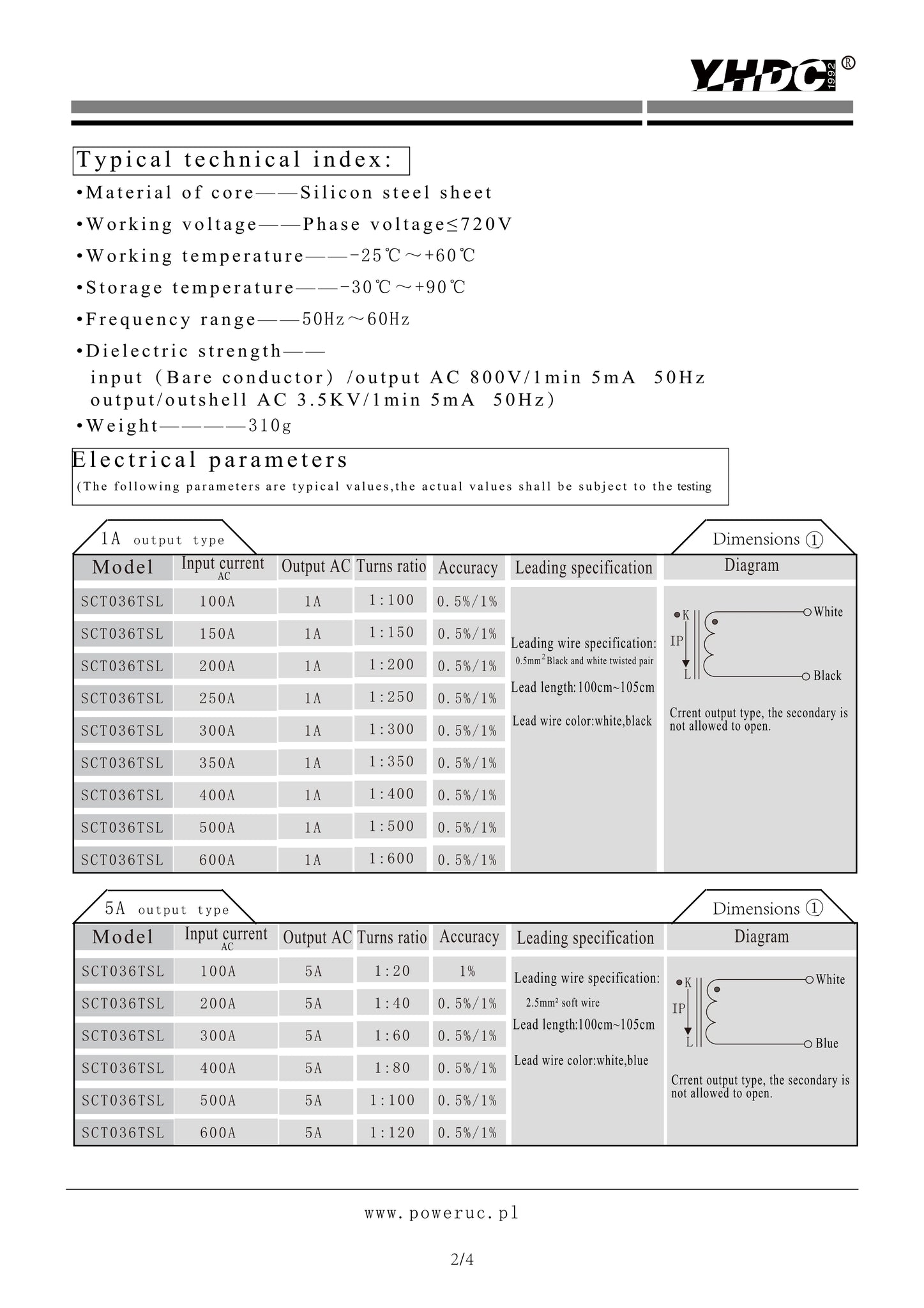

Typical technical index:
Mounting type: Free hanging (In-Line)
Material of core: Laminated Silicon Steel
Applicable standards:GB20840-2014
Operating temperature:-25℃~+60℃
Storage temperature:-30℃~+90℃
Frequency range:50Hz-60Hz
Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz
Output/housing AC 3.5KV/1min 50Hz

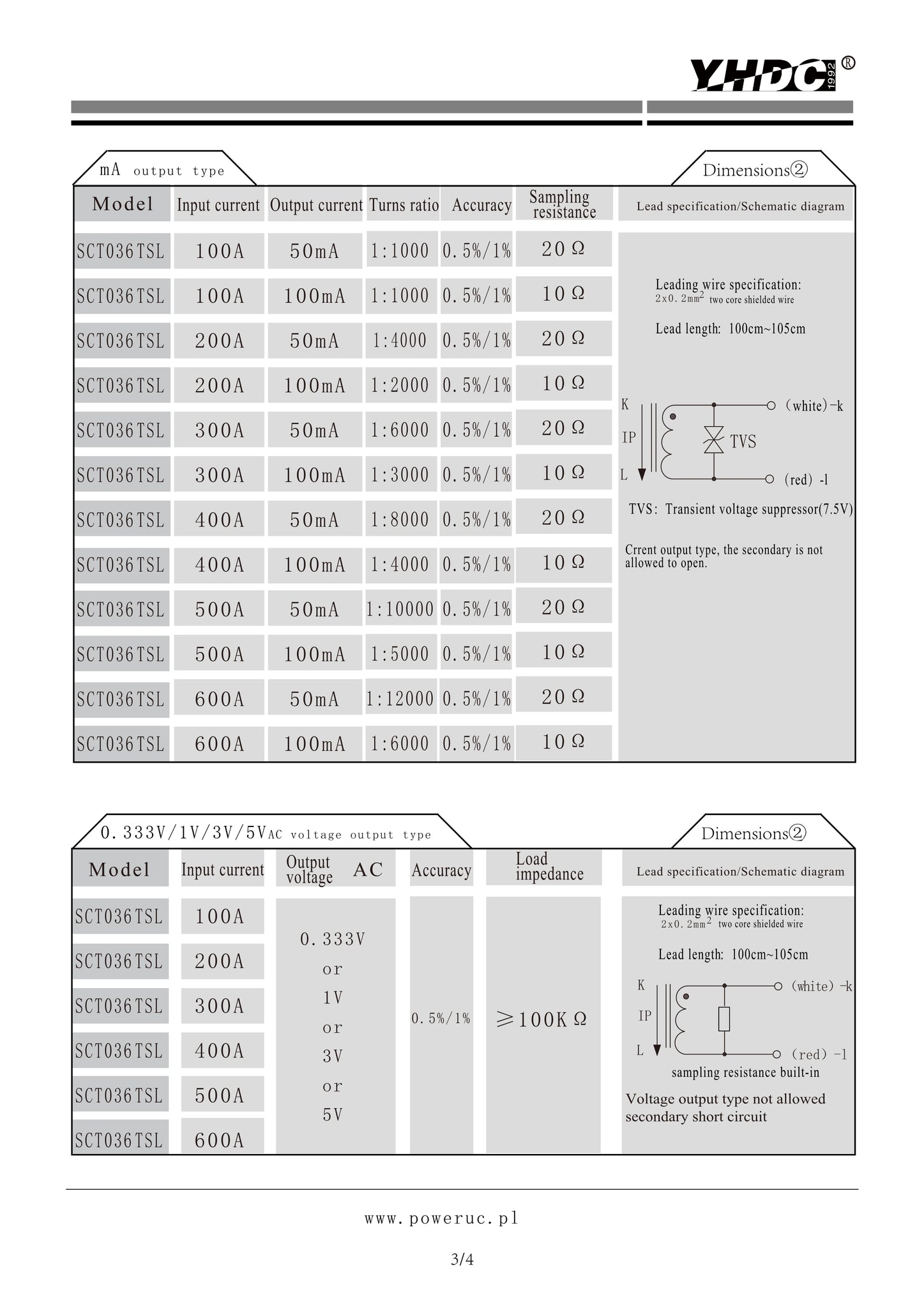

Electric Parameter:
(The f ollo w i n g pa r amete rs a r e ty p ical v alue s,the act u al v alue s sh all b e s ubject to t h e testing)
DOWNLOAD-CURRENT TYPE OUTPUT
DOWNLOAD-VOLTAGE TYPE OUTPUT
