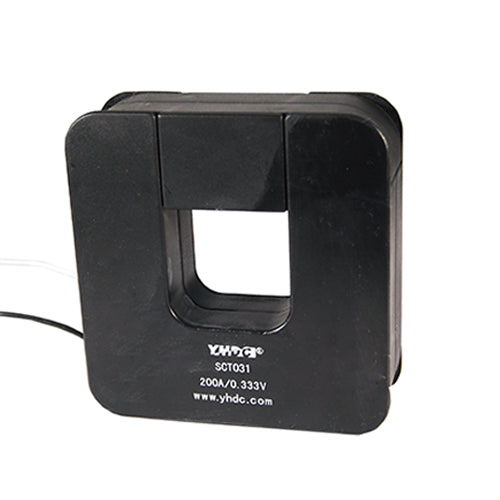

Split Core Current Transformer SCT031QL rated input 100A 200A 300A 400A 500A 600A rated output 0.1A/0.333V

PowerUC

Shipping calculated at checkout.
Only 10 left!

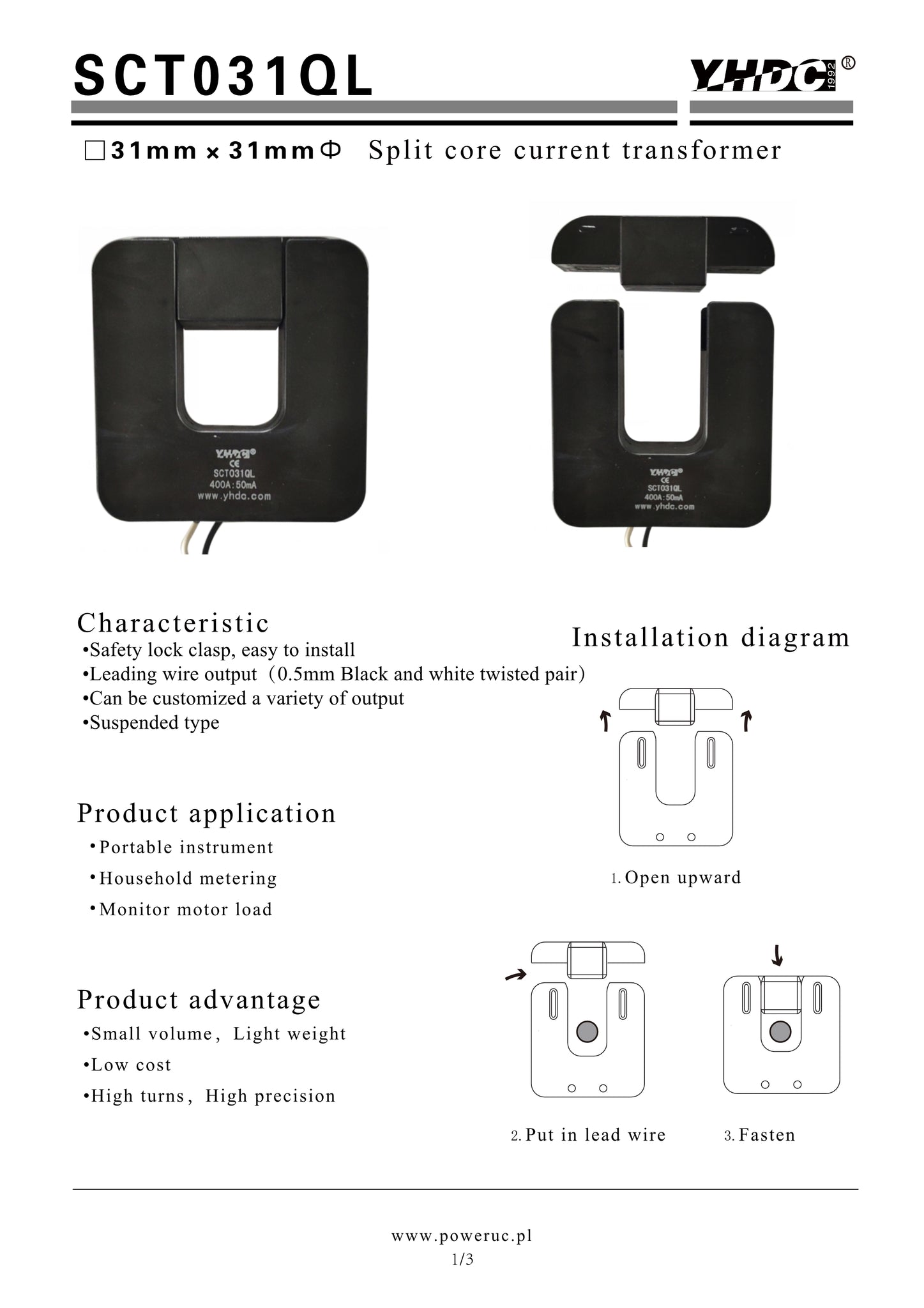

Characteristic:

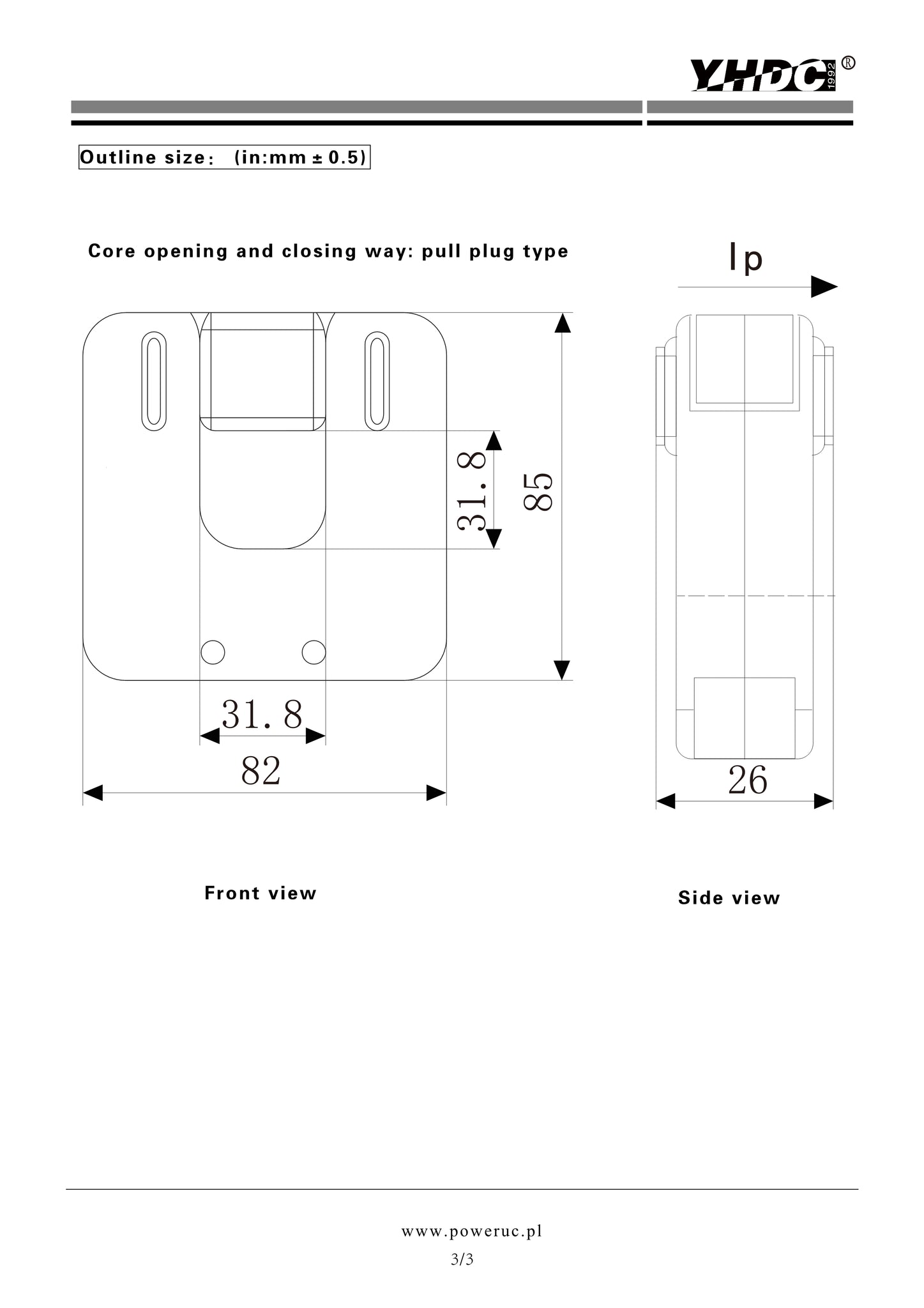

Opening size 31mm x 31mm.  Compatible to foreign products.  Epoxy encapsulated, leading wire output (1m).

Technical Indicators:
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -25°C ~ +70°C
Storage temperature: -40°C ~ +85°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min

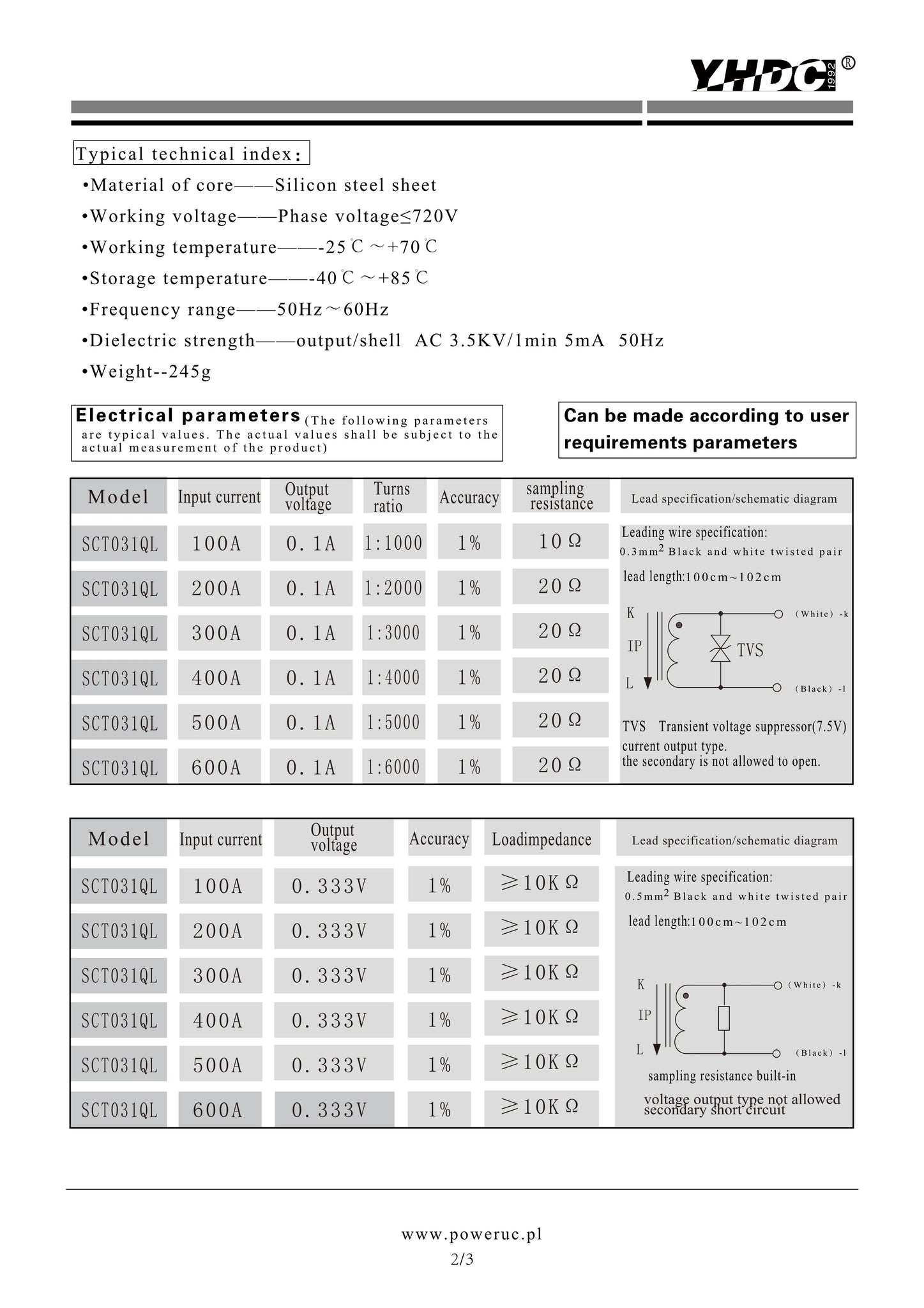

Electric Parameter:

DOWNLOAD
