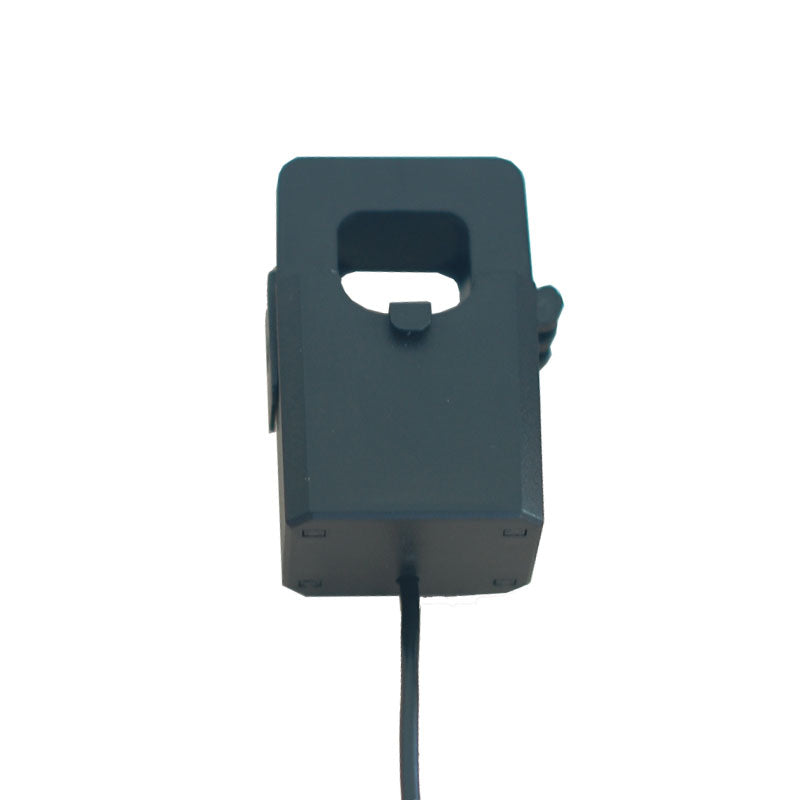

Split Core Current Transformer SCT024SL rated input 50A 100A 200A 300A 400A rated output 20mA 50mA 80mA 100mA 0.333V 1V 3V 5V
Model:SCT024SL
Characteristics:
Safety lock buckle, easy installation, cable output.
Technical index:
Mounting type:Free hanging (In-Line)
Material of core: Laminated silicon steel
Applicable standards: GB20840-2014
Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-60Hz
Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz
Output/housing AC 3.5KV/1min 50Hz
Electric Parameter:
DOWNLOAD-Current type output
DOWNLOAD-Voltage type output
