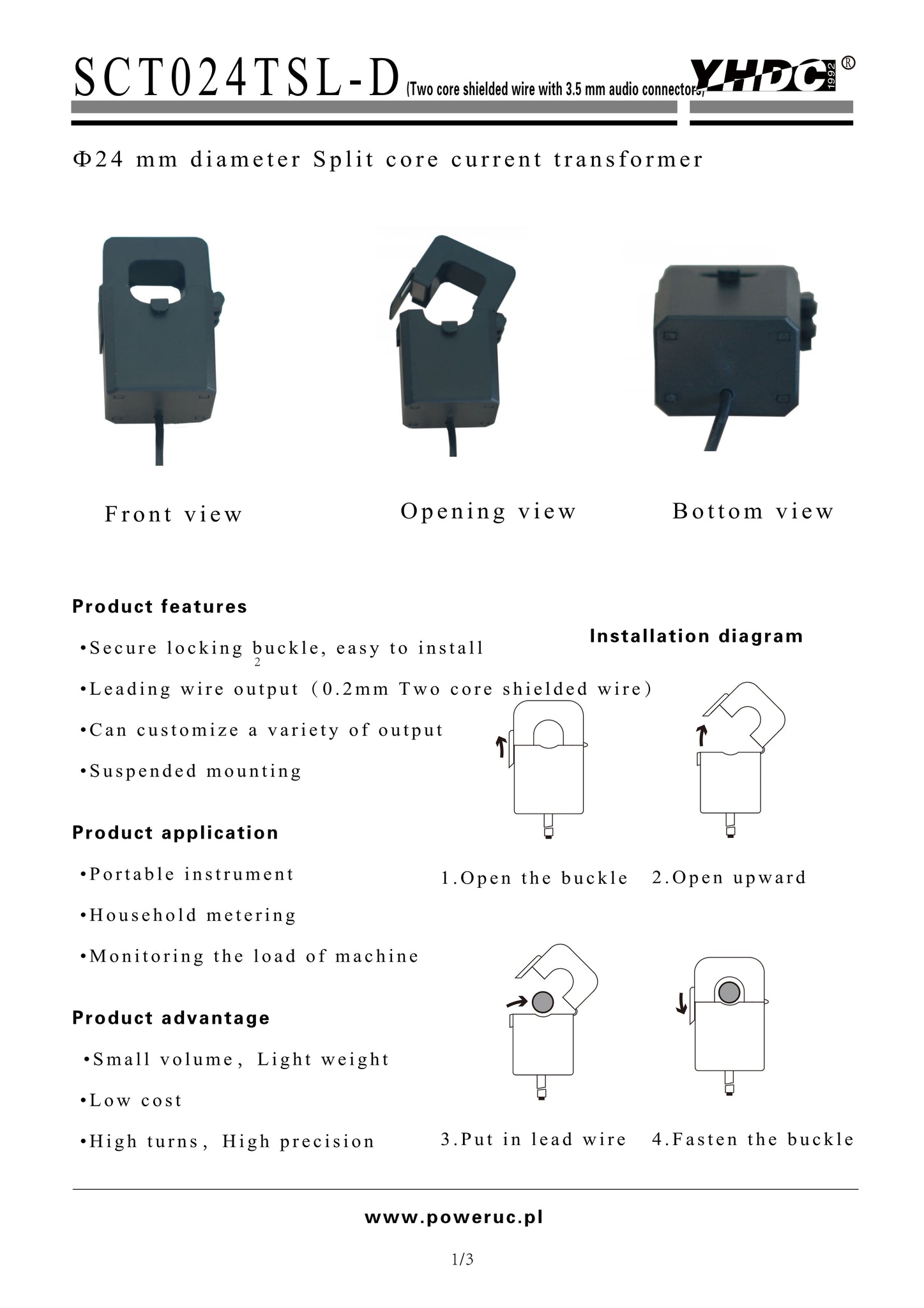

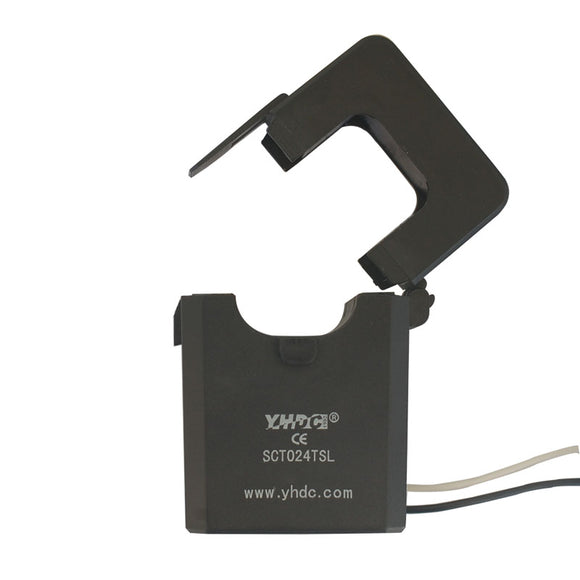

Split Core Current Transformer SCT024TSL-D rated input 50A 100A 200A 300A rated output 1V/3V/5V

Split Core Current Transformer SCT024TSL-D rated input 50A 100A 200A 300A rated output 1V/3V/5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：SCT024TSL-D

Characteristics：

Open type, 1V/3V/5V output, used for ac motor,Current measurement of lighting equipment , air compressor , etc . Monitoring and protection .

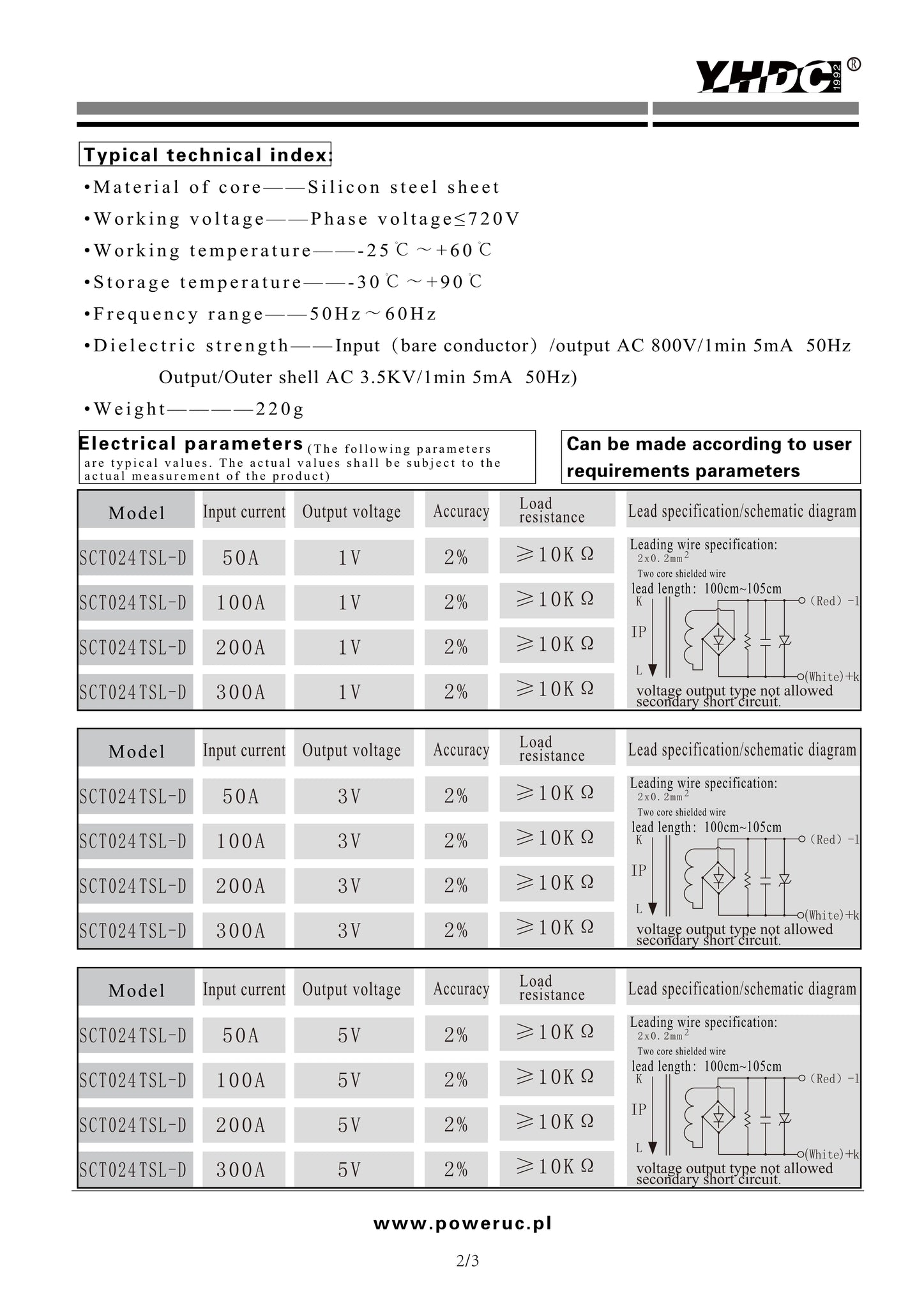

Technical index：

Suspended installation, crimping terminal output

Material of core：Silicon steel sheet

Work voltage：≤720V

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz～60Hz

Dielectric strength：3.5KV 50Hz 1min

Electric Parameter:

DOWNLOAD
