Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 20mA/50mA/80mA/100mA/1A/5A/0.333V/1V/3V/5V
Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 20mA/50mA/80mA/100mA/1A/5A/0.333V/1V/3V/5V
Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 20mA/50mA/80mA/100mA/1A/5A/0.333V/1V/3V/5V

Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 20mA/50mA/80mA/100mA/1A/5A/0.333V/1V/3V/5V

PowerUC

Shipping calculated at checkout.
Only 12 left!

MODEL：SCT024TS

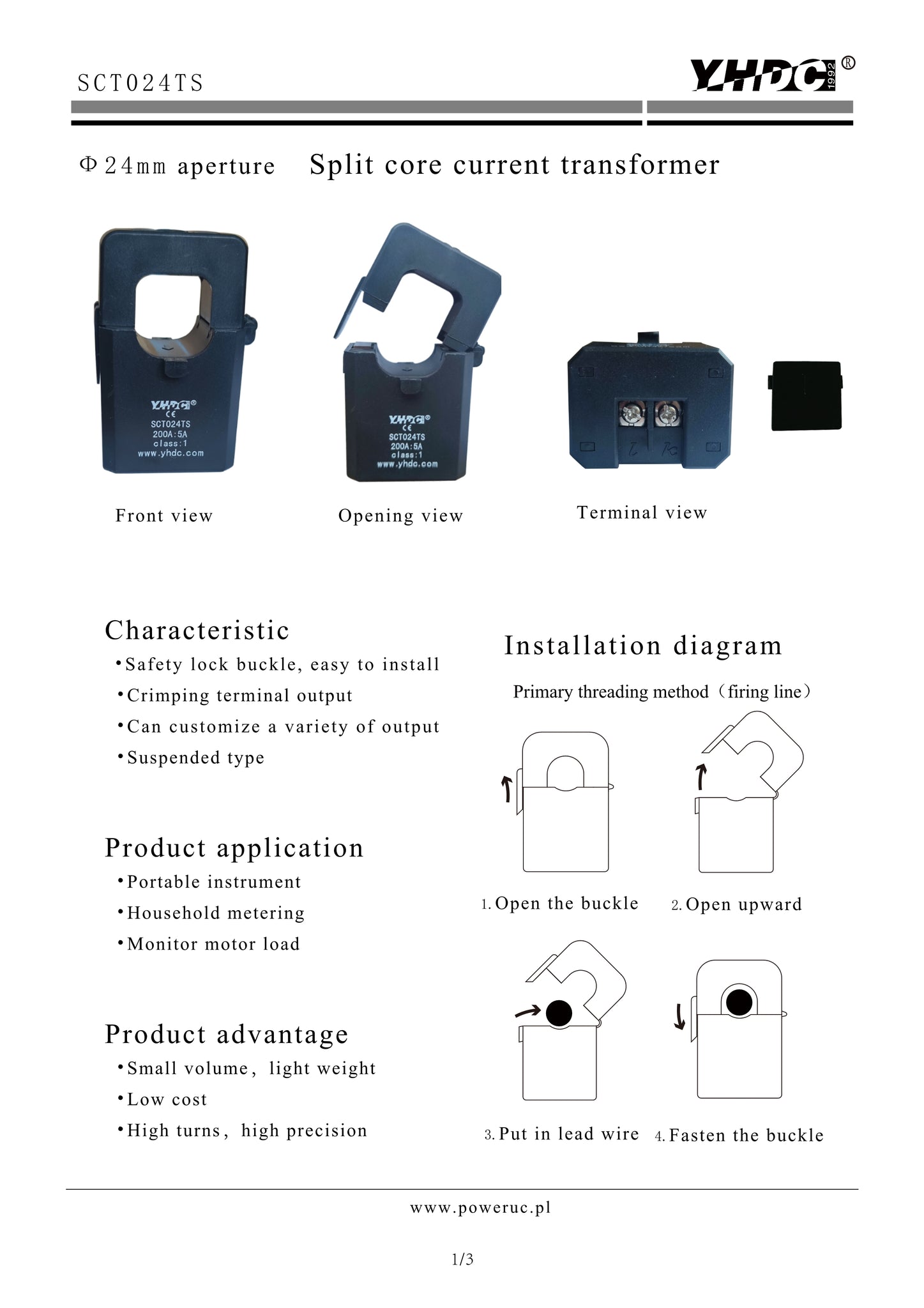

Characteristics：

Safety lock buckle, easy installation, screw terminal output.

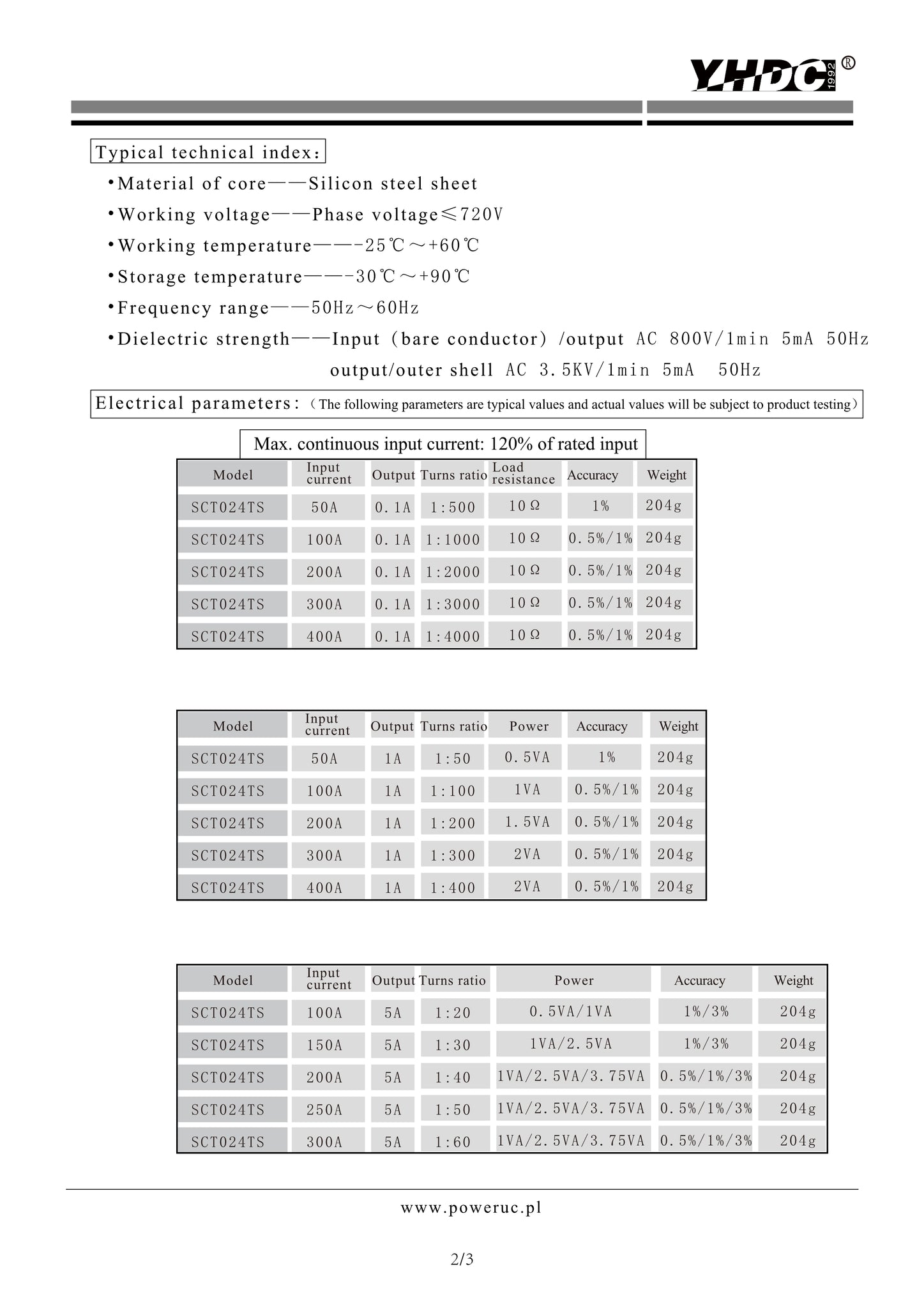

Technical index：

Mounting type:Free hanging (In-Line)
Material of core: Laminated silicon steel
Applicable standard:: GB20840-2014
Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength：3.5KV 50Hz 1min

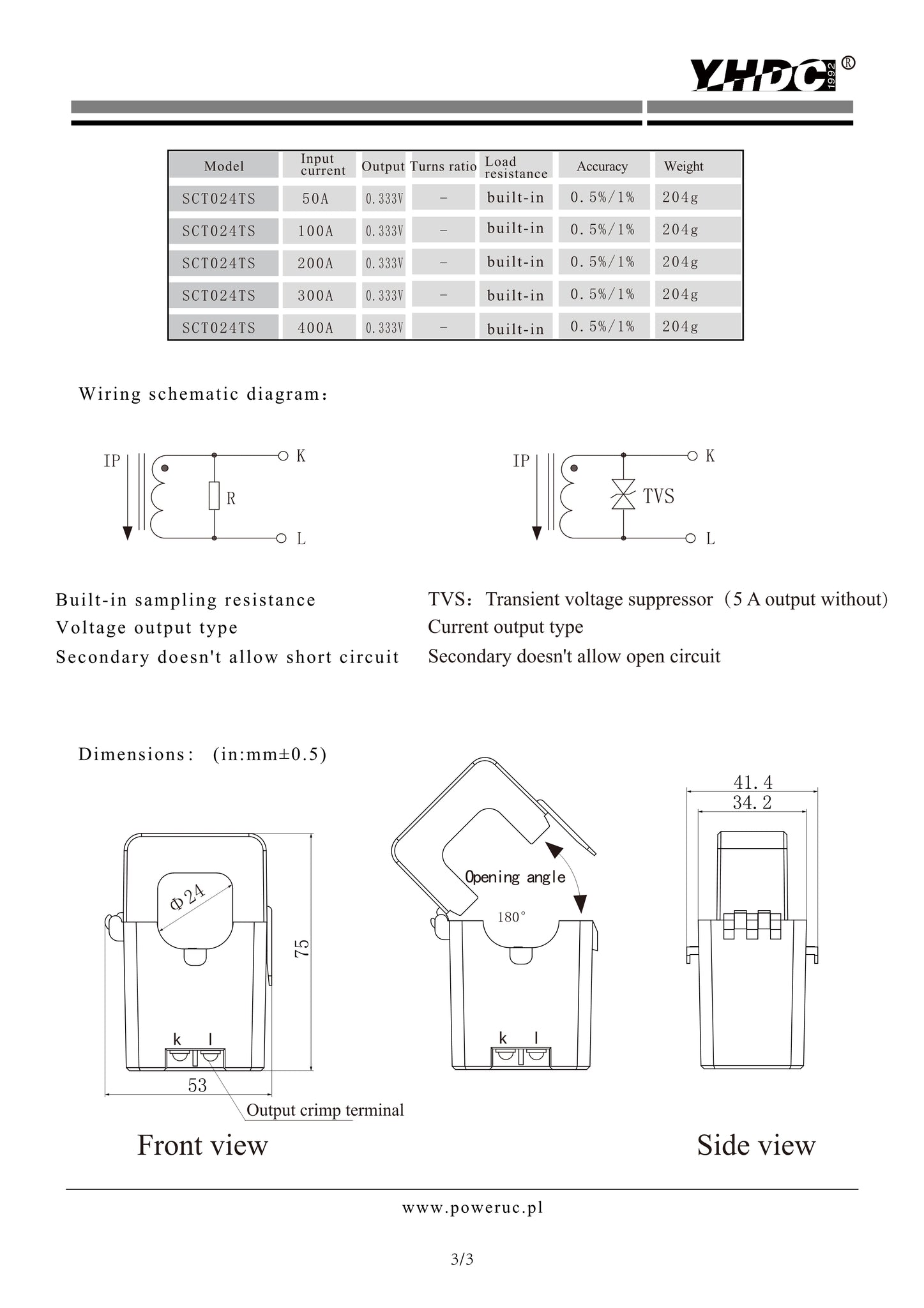

Electric Parameter:







DOWNLOAD-MA CUEERNT TYPE OUTPUT

DOWNLOAD-1A CUEERNT TYPE OUTPUT

DOWNLOAD-5A CUEERNT TYPE OUTPUT

DOWNLOAD-VOLTAGE TYPE OUTPUT
