Split Core Current Transformer SCT016TS rated input 50A 80A 100A 120A 150A 160A rated output 40mA/50mA/100mA/1A/0.333V/1V/3V/5V Accuracy 1%

PowerUC

Shipping calculated at checkout.

Quantity

Only 9 left!

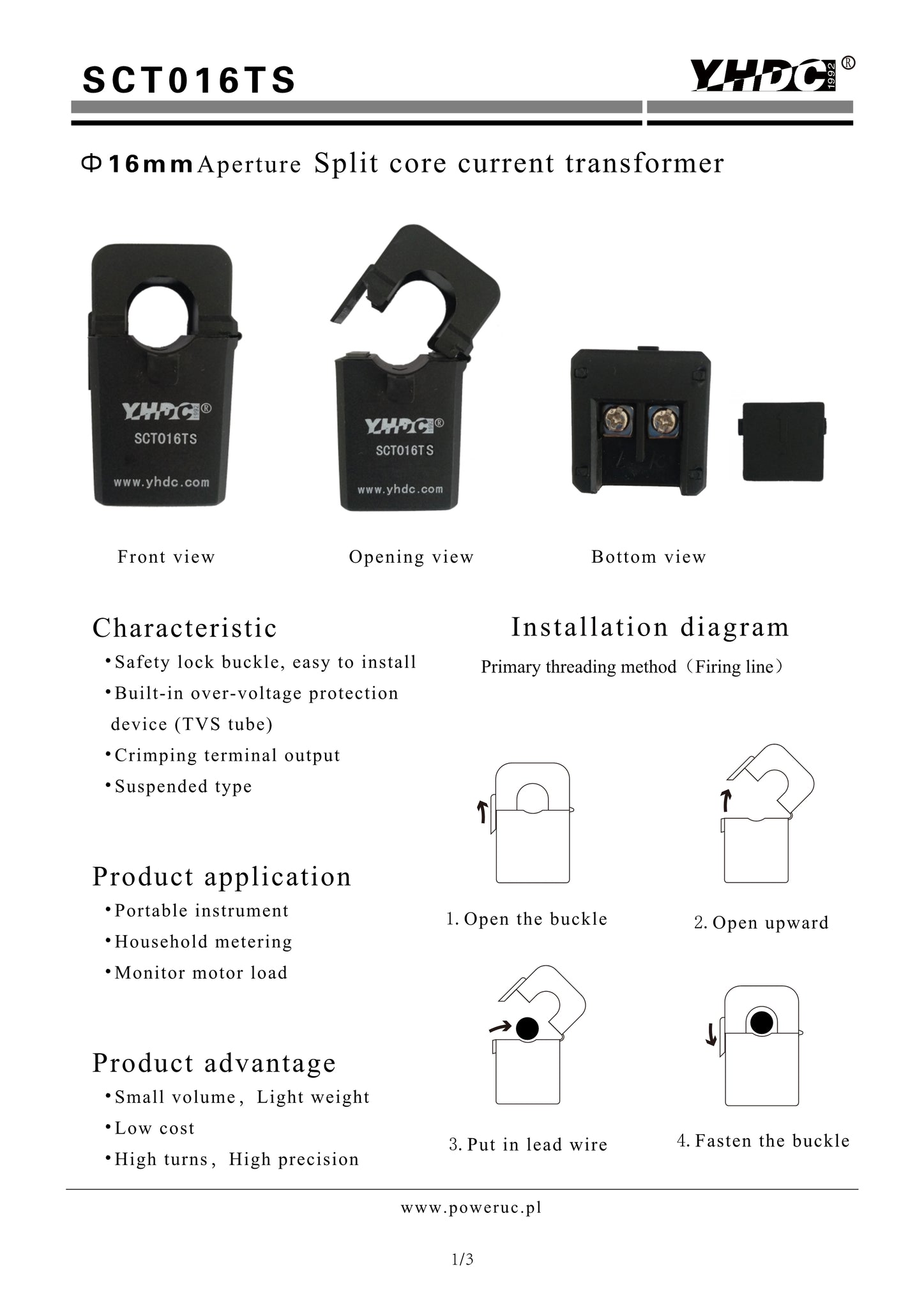

Characteristic:

Safety lock buckle, easy installation, screw terminal output.

Technical Indicators:

Mounting type: Free hanging (In-Line)

Material of core: Laminated silicon steel

Applicable standards: GB20840-2014

Operating temperature: -25℃ ~ +60℃

Storage temperature: -30℃ ~ +90℃

Frequency range: 50Hz-60Hz

Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housing AC 3.5KV/1min 50Hz

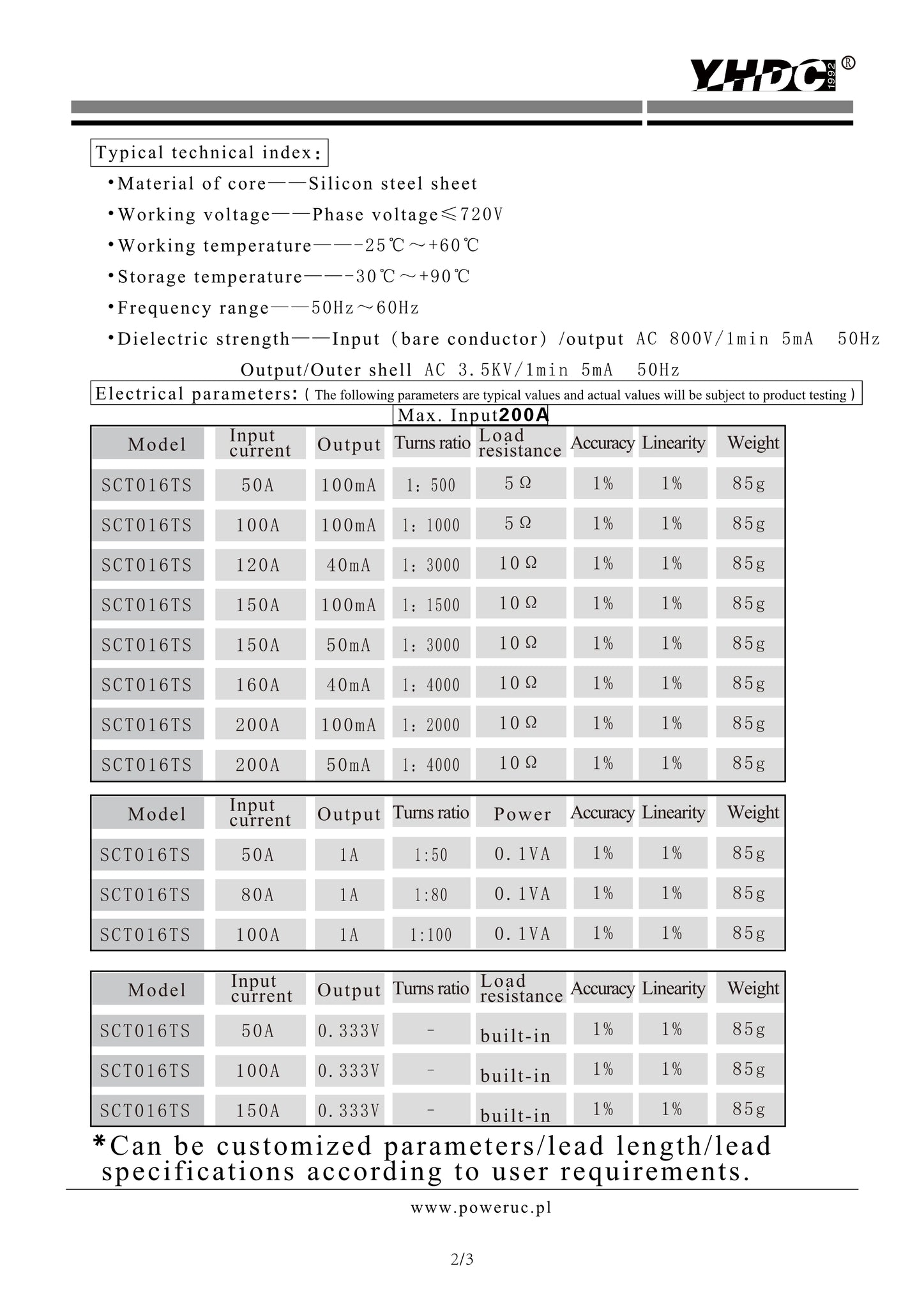

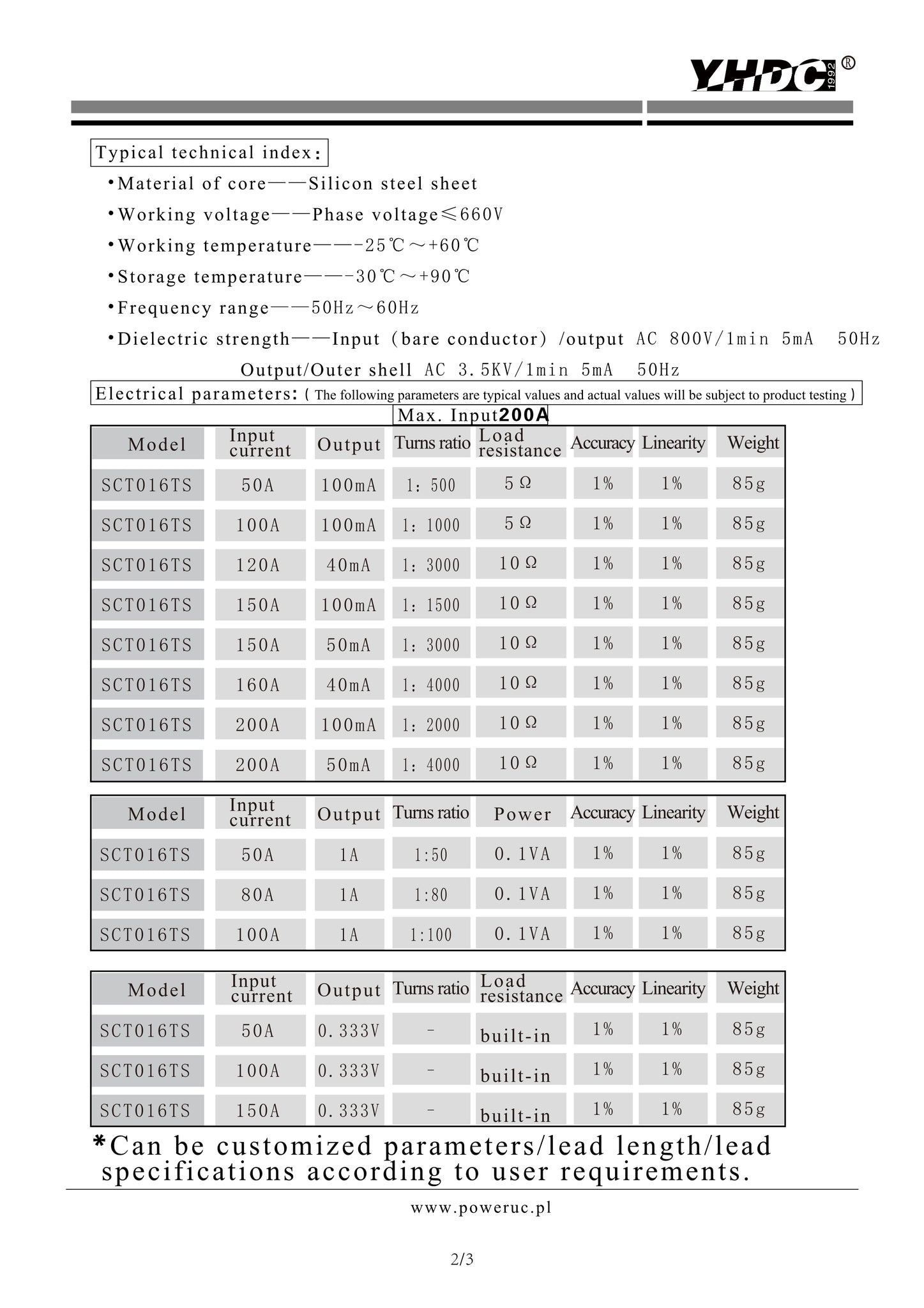

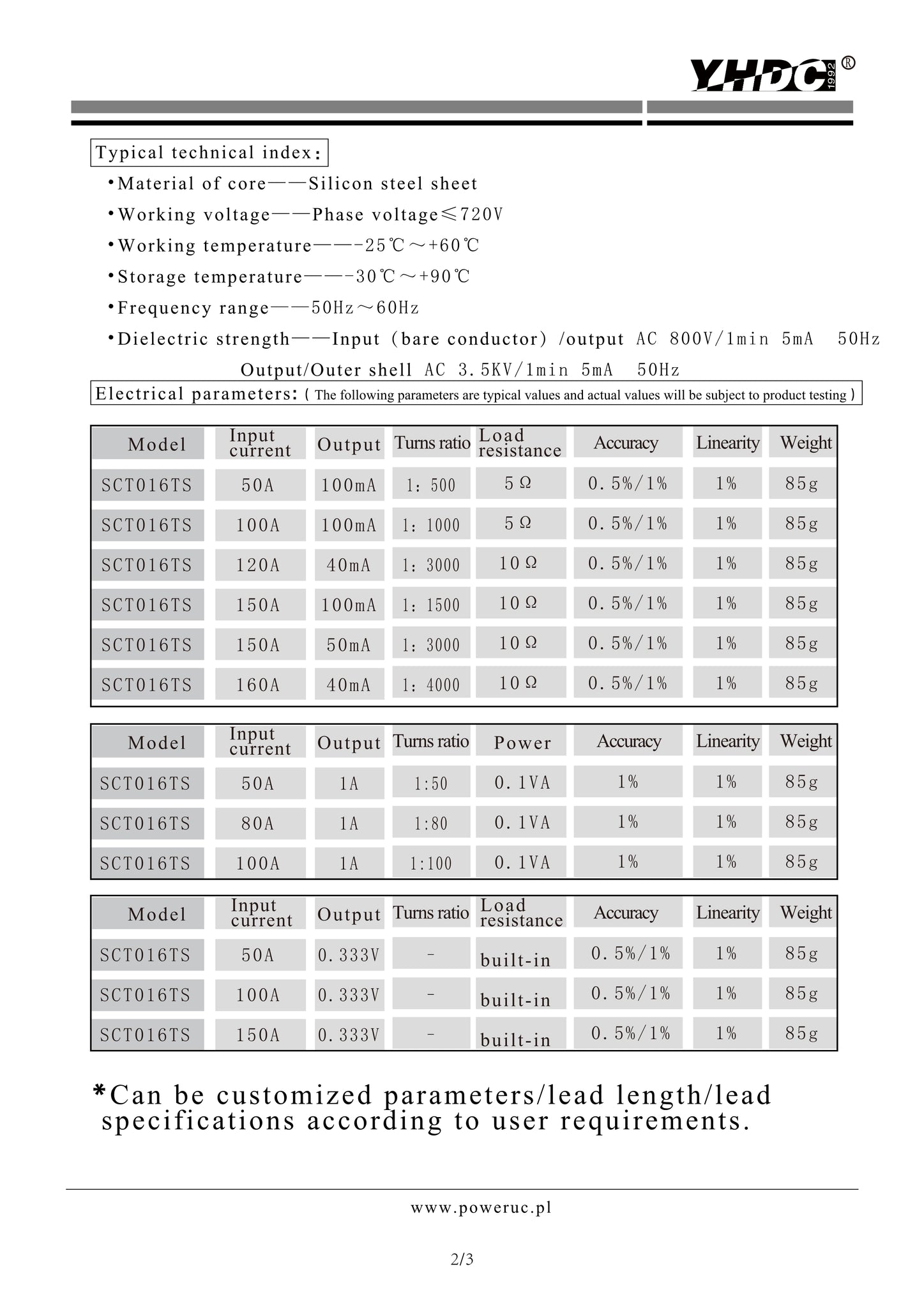

Electric Parameter:

DOWNLOAD-1A Current type output
